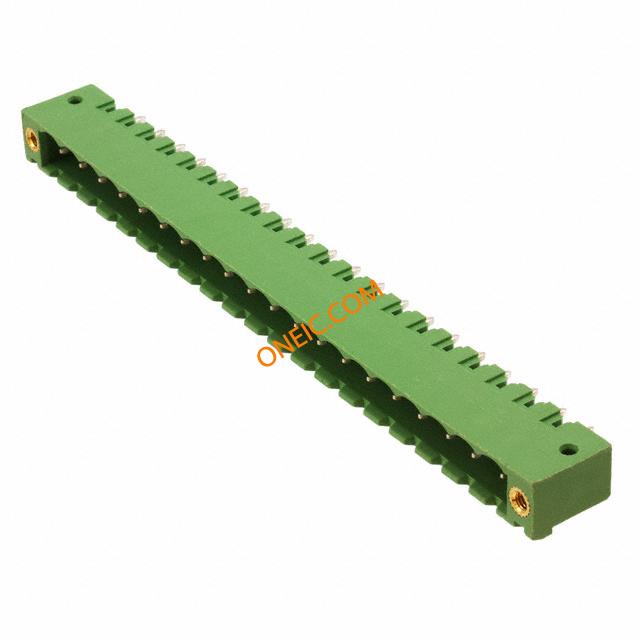

1777251
| Manufacturer | |
| Description | Pluggable Terminal Blocks 20P 5.08mm HDR GRN Conn Shrouded Header HDR 20 POS 5.08mm Solder ST Thru-Hole TERM BLOCK HDR 20POS VERT 5.08MM Header MSTBV 2,5/20-GF-5,08 Header, Nominal current: 12 A, Nom. voltage: 250 V, Pitch: 5.08 mm, Number of positions: 20, Color: green, Assembly: Soldering Conn;TermBlk;PCB;Header;SnglLvl;Sldr;20Pole;5.08mmPitch;COMBICONSeries |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Headers | Lead Time | 20 Days |
| Tradename | COMBICON Control | Subcategory | Connector Headers and PCB Receptacles |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Approval Agency | UL,CUL,CSA,CB,GOST,VDE-PZI,RS,GL, | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 12A | Voltage | 300V |
| Voltage Rating | 250 V | Number of Poles | 20Poles |
| Current Rating (Max) | 12 A | Voltage - Input (Min) | 320V |
Mechanical
| Color | Green | Depth | 8.6 |
| Pitch | 0.200" (5.08mm) | Height | 12 |
| Weight | 5.467464 oz | Packaging | Bulk |
| Termination | Solder | Housing Color | Green |
| Mounting Type | Straight | Contact Finish | Tin |
| Number of Rows | 1 | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 111.76 | Primary Material | PCB |
| Pin Hole Diameter | 5.08mm | Termination Style | Through Hole |
| Header Orientation | Vertical | Number of Contacts | 20 |
| Number of Positions | 20 | Terminal Block Type | Header, Male Pins, Shrouded (4 Side) |
Product Info
| Type | Shrouded Header | Level | SingleLevel |
| Gender | HDR | Series | MSTBV |
| Features | Flange | Manufacturer | COMBICON |
| Industry Aliases | MSTBV 2, 5/20-GF-5, 08 | Number of Levels | 1 |
| Base Product Number | MSTBV2,5/20-GF-5,08 | Positions Per Level | 20 |
