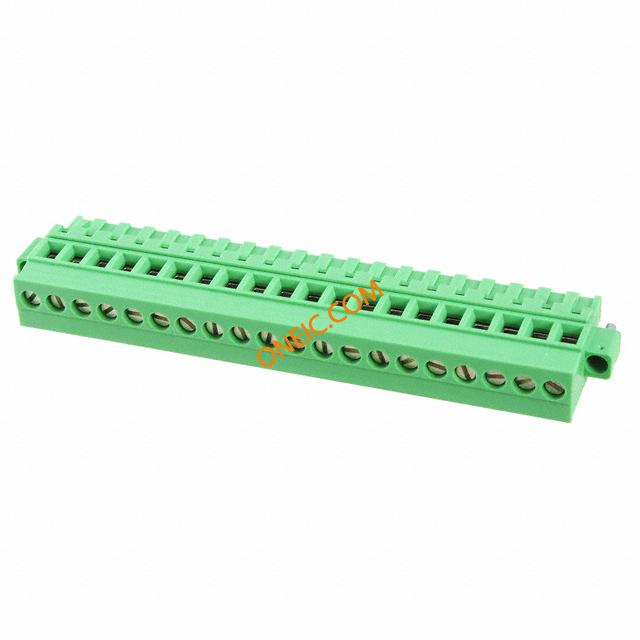

1835274
| Manufacturer | |
| Description | Pluggable Terminal Blocks MVSTBR 2 5/20-STF-5 Conn Terminal Block F 20 POS 5.08mm Screw ST Panel Mount 12A TERM BLOCK PLUG 20POS 5.08MM Printed-circuit board connector MVSTBR 2,5/20-STF-5,08 MVSTBR25/20-STF-508 Phoenix Contact MVSTBR 系列 20路 5.08mm节距 印刷电路板接线端子块, 连接器 |
| Category |
Business
| Product | Plugs | Tradename | COMBICON Control |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | ||
Mechanical
| Color | Green | Depth | 12.6 |
| Pitch | 5.08 mm | Height | 26 |
| Weight | 4.691437 oz | Packaging | Bulk |
| Wire Gauge | 12-30 AWG | Termination | Screw |
| Mounting Type | Panel Mount | Contact Finish | Tin |
| Number of Rows | 1 | Plug Wire Entry | 90° |
| Contact Material | 锡 | Housing Material | Polyamide |
| Length - Overall | 111.76 | Termination Rows | 螺钉 |
| Termination Style | Screw | Number of Contacts | 20 |
| Number of Positions | 20 | Terminal Block Type | Plug, Female Sockets |
| Wire Gauge or Range - AWG | 24-12 | ||
Product Info
| Type | Wire to Wire | Gender | F |
| Series | MVSTBR | Features | Flange, Retention Latches (Wire Side) |
| Number of Levels | 1 | Positions Per Level | 20 |
