1778166
| Manufacturer | |
| Description | Pluggable Terminal Blocks MSTB2 5/20STF5 08 Conn Terminal Block F 20 POS 5.08mm Screw RA Cable Mount 12A TERM BLOCK PLUG 20POS STR 5.08MM Plug MSTB 2,5/20-STF-5,08 Conn Terminal Blocks F 20 POS 5.08mm Screw RA Cable Mount 12A PLUGCOMPONENT,PITCH:5.08MMPOS20 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Plugs | Lead Time | 64 Days |
| Tradename | COMBICON Control | Subcategory | Connector Terminal Blocks |
| Product Category | Pluggable Terminal Blocks | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Rad Hardened | No | Material Flammability Rating | UL 94 V-0 |
Electrical
| Current | 15A | Voltage | 300V |
| Voltage Rating | 250 V | Current Rating (Max) | 12 A |
| Voltage - Input (Min) | 320V | Voltage - Supply (Min) | 250V |
Mechanical
| Color | Green | Depth | 18.2 mm |
| Pitch | 0.200" (5.08mm) | Height | 15 mm |
| Weight | 4.550341 oz | Packaging | Bulk |
| Wire Gauge | 12-30 AWG | Termination | Screw |
| Mounting Type | Cable Mount | Contact Finish | Tin |
| Mounting Style | Cable | Number of Rows | 1 |
| Plug Wire Entry | 180° | Housing Material | Polyamide |
| Length - Overall | 111.4 mm | Termination Style | Screw |
| Number of Contacts | 20 | Number of Positions | 20 |
| Terminal Block Type | Plug, Female Sockets | Wire Gauge or Range - AWG | 24-12 |
Product Info
| Type | Terminal Block | Gender | F |
| Series | MSTB | Features | Flange |
| Industry Aliases | MSTB 2, 5/20-STF-5, 08 | Number of Levels | 1 |
| Positions Per Level | 20 | ||
Documents & Media
PDF Document
Similar Parts

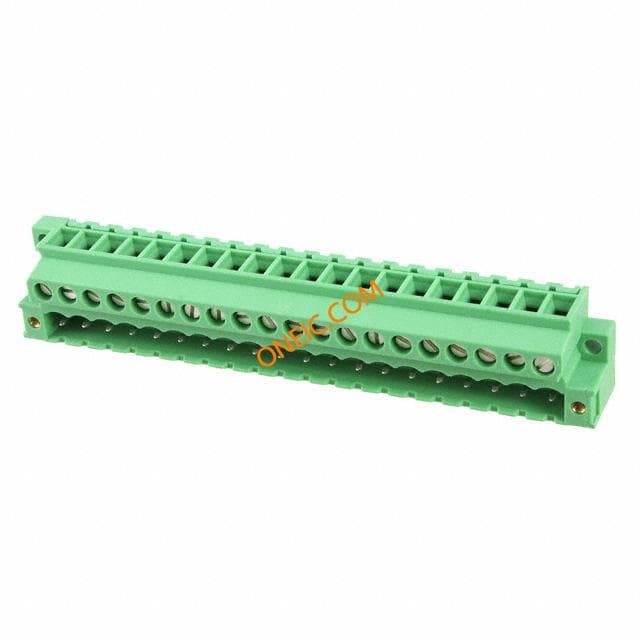

1788525
