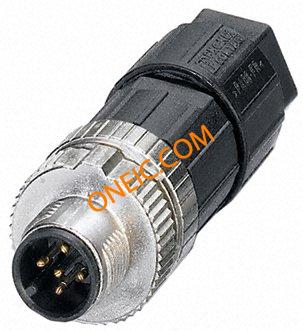

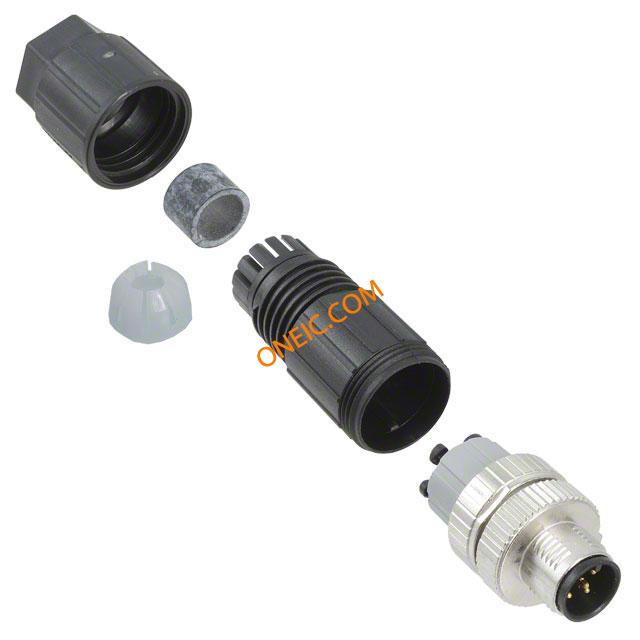

1432567
| Manufacturer | |
| Description | Circular Metric Connectors SACC-MS-5SC M SCO Conn Sensor Actuator M 5 POS ST 1 Port CONN M12 5POS PLUG Sensor plug,M12 spring cage 5wy,SPEEDCON SENSOR/ACTUATORCONNECTORMALE5-POS Phoenix Contact SACC 系列 5路 电缆安装 直向 连接器 插头 , 公触点 |
| Category |
Business
| Tradename | PLUSCON Field | Standard Pack | 1 |
| Product Category | Circular Metric Connectors | Standard Package | 1 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 60V | Connector Impedance | M12 |
| Current Rating (Max) | 4A | ||
Mechanical
| Depth | 60 | Outline | 19mm |
| Diameter | 19 | Packaging | Bulk |
| Cable Exit | No | Shell Size | 19mm |
| Orientation | A | Termination | Spring-Cage |
| Contact Type | 5Signal | Mounting Type | Straight |
| Shell Plating | Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold Over Nickel | Fastening Type | Push-Twist |
| Contact Material | Bronze | Housing Material | Nylon |
| 1st Contact Gender | M | Number of Contacts | 5 |
| Number of Positions | 5 | Shell Size - Insert | M12-5 |
| Shell Material, Finish | Brass, Nickel Plated | ||
Product Info
| Type | Sensor Actuator | Gender | PL |
| Series | SACC | CAD Drawing | 3D CAD 模型 |
| Product Type | Connectors | ||
Environmental
| Seal Rating | IP67 | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 85°C | ||
