点击放大查看
1543414
| Manufacturer | |
| Description | Circular Metric Connectors SACC-FR-5CON-PG 9- M SCO Conn Sensor Actuator F 5 POS RA Cable Mount 5 Terminal 1 Port CONN M12 5POS R/A SOCKET Sensor/actuator connectors SACC-FR-5CON-PG 9-M SCO SACC-FR-5CON-PG9-MSCO Phoenix Contact 连接器 |
| Category |
Business
| Tradename | PLUSCON Field | Product Category | Circular Metric Connectors |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 60V | Current Rating (Max) | 4A |
Mechanical
| Height | 41 | Weight | 1 oz |
| Packaging | Bulk | Cable Exit | No |
| Orientation | A | Shell Style | Plug |
| Termination | Screw | Contact Type | 5Signal |
| Mounting Type | Cable Mount | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Copper Alloy |
| Fastening Type | Push-Twist | Contact Material | Brass |
| Length - Overall | 35 | Termination Style | Screw |
| 1st Contact Gender | F | Number of Contacts | 5 |
| Number of Positions | 5 | Shell Size - Insert | M12-5 |
| Shell Material, Finish | Brass, Nickel Plated | ||
Product Info
| Type | Sensor Actuator | Gender | PL |
| Series | M12 | CAD Drawing | 3D CAD 模型 |
| Product Type | Connectors | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 85°C |
Documents & Media
Similar Parts
1542978
Phoenix Contact
Circular Metric Connectors Sensor/ACTR connect 5-pos.,male,straight Conn Sensor Actuator M 5 POS ST Cable Mount 5 Terminal 1 Port CONN M12 5POS PLUG Sensor/actuator connectors SACC-MS-5CON-PG 9-M SCO SACC-MS-5CON-PG9-MSCO

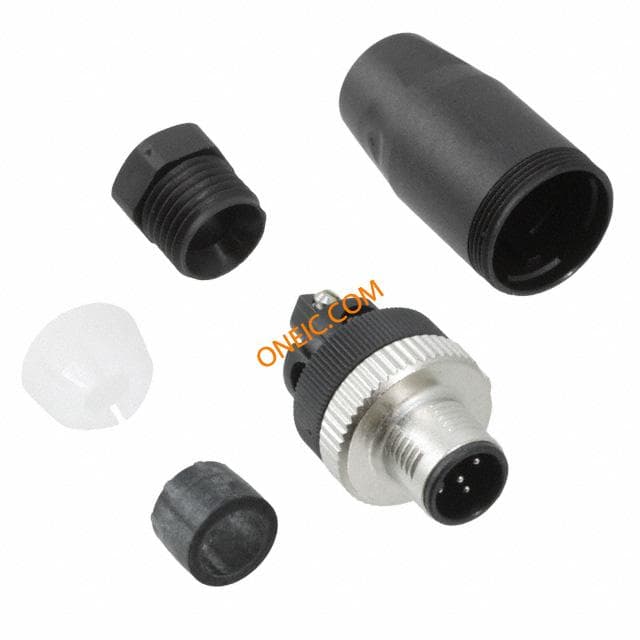

1542965
Phoenix Contact
Circular Metric Connectors SACC-MS-5CON-PG 7-M SCO Conn Sensor Actuator M 5 POS Screw ST Cable Mount 5 Terminal 1 Port CONN M12 5POS PLUG Sensor/actuator connectors SACC-MS-5CON-PG 7-M SCO Connector;Plug-In;5Pos.;M12-SPEEDCON;ScrewConn.
1542994
Phoenix Contact
Circular Metric Connectors SACC-MR-5CON-PG 7-M SCO Conn Sensor Actuator M 5 POS Screw RA Cable Mount 5 Terminal 1 Port CONN M12 5POS R/A PLUG Sensor/actuator connectors SACC-MR-5CON-PG 7-M SCO SACC-MR-5CON-PG7-MSCO Phoenix Contact 连接器
1543003
Phoenix Contact
Circular Metric Connectors SACC-MR-5CON-PG 9-M SCO Conn Sensor Actuator M 5 POS Screw RA Cable Mount 5 Terminal 1 Port CONN M12 5POS R/A PLUG Sensor/actuator connectors SACC-MR-5CON-PG 9-M SCO SACC-MR-5CON-PG9-MSCO Phoenix Contact 连接器

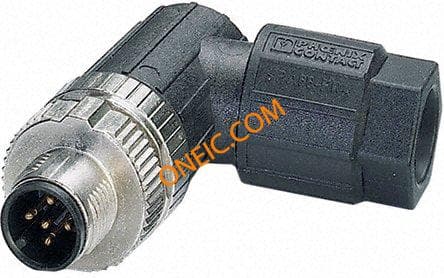

1432570
Phoenix Contact
Circular Metric Connectors SACC-MR-5SC M SCO Conn Sensor Actuator M 5 POS 1 Port CONN M12 5POS ANGLED PLUG Sensor plg,M12 R/A sprng cg 5wy,SPEEDCON Sensor/actuatorconnector,plug,angled,5-pos Phoenix Contact SACC 系列 5路 电缆安装 直角 连接器 插头 , 公触点

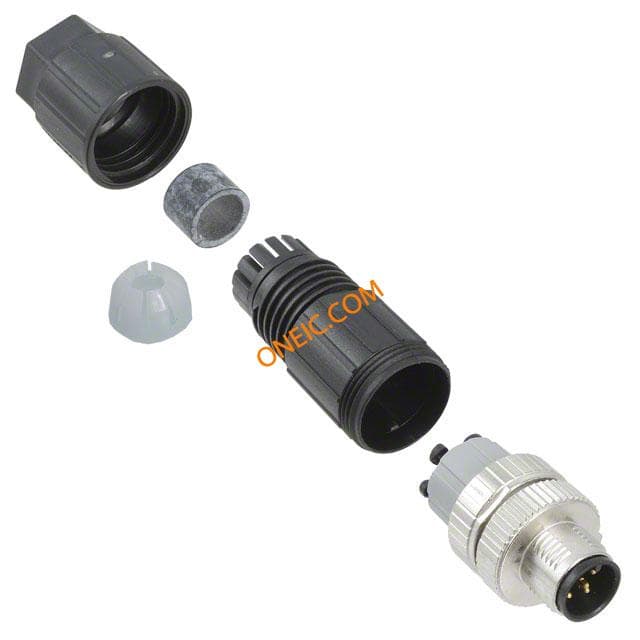

1432567
