点击放大查看

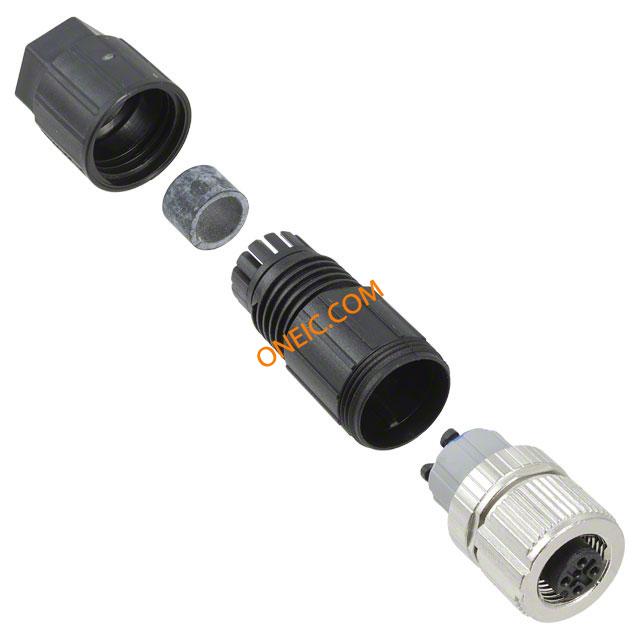

1432583
| Manufacturer | |
| Description | Circular Metric Connectors SACC-FS-5SC M SCO Conn Sensor Actuator F 5 POS ST 1 Port CONN M12 5POS SOCKET Sensor sckt,M12 spring cage 5wy,SPEEDCON SENSOR/ACTUATORCONNECTOR,SOCKET5-POS Phoenix Contact SACC 系列 5路 电缆安装 直向 连接器 插头 , 母触点 |
| Category |
Business
| Tradename | PLUSCON Field | Product Category | Circular Metric Connectors |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 60V | Connector Impedance | M12 |
| Current Rating (Max) | 4A | ||
Mechanical
| Depth | 58 | Outline | 19mm |
| Diameter | 19 | Packaging | Bulk |
| Cable Exit | No | Shell Size | 19mm |
| Orientation | A | Shell Style | Plug |
| Termination | Spring-Cage | Contact Type | 5Signal |
| Mounting Type | Straight | Shell Plating | Nickel |
| Cable Diameter | 4 mm to 8 mm | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold Over Nickel | Fastening Type | Push-Twist |
| Mounting Style | Cable | Contact Material | Bronze |
| Housing Material | Nylon | Termination Style | Spring Cage |
| 1st Contact Gender | F | Number of Contacts | 5 |
| Number of Positions | 5 | Shell Size - Insert | M12-5 |
| Shell Material, Finish | Brass, Nickel Plated | ||
Product Info
| Type | Sensor Actuator | Gender | PL |
| Series | SACC | CAD Drawing | 3D CAD 模型 |
| Product Type | Connectors | ||
Environmental
| Seal Rating | IP67 | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 85°C | ||
