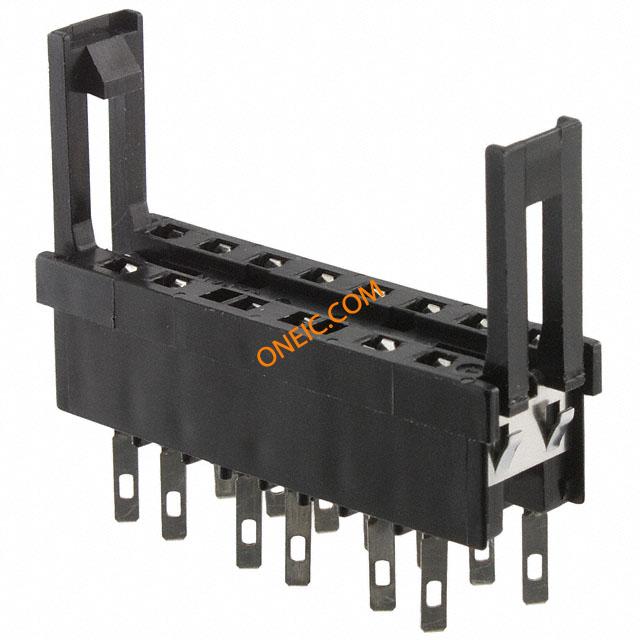

NC4-SS
| Manufacturer | |
| Description | Relay Sockets & Hardware NC4-slim type socket Solder Conn Relay Socket SKT 16 POS Solder ST Panel Mount SOCKET SLD FOR SLIM NC4D RELAY RELAY SOCKET |
| Category |
Business
| Product Category | Relay Sockets & Hardware | Standard Package | 20 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Mechanical
| Depth | 37 | Height | 12.6 |
| Packaging | Bulk | Termination | Solder |
| Mounting Type | Panel Mount | Number of Rows | 2 |
| Length - Overall | 44 | Termination Style | Solder Terminal |
| Number of Contacts | 16 | Number of Positions | 14 |
Product Info
| Type | Relay Socket | Gender | SKT |
| Series | NC | Accessory Type | Socket, Slim Type |
| For Use With/Related Products | NC4D Relays | ||
Documents & Media
Similar Parts

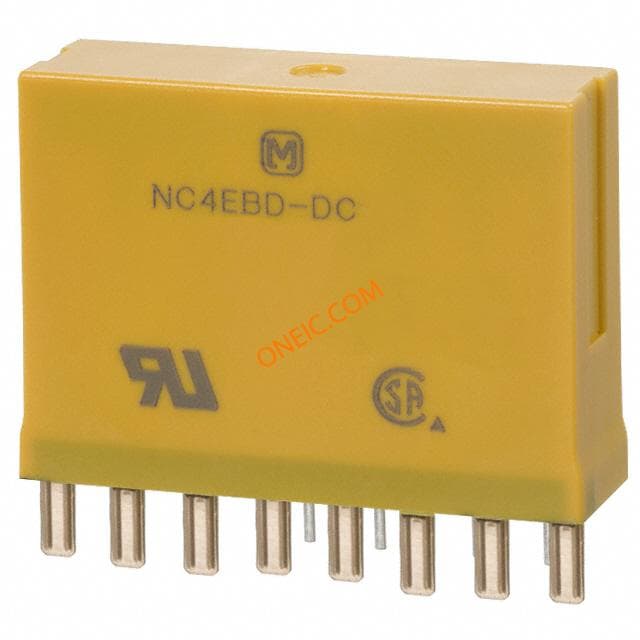

NC4EBD-DC110V
Panasonic Electric Works
General Purpose Relays 4 Form C 5A 250VAC 110VDC RELAY GEN PURPOSE 4PDT 5A 110V Electromechanical Relay 4PDT 5ADC/2AAC 110VDC Socket General Purpose Relay Coil Voltage: 110 VDC Contact Configuration: 4C 4PDT Current: 4 Amps Mounting: Plug-In Operating Function: Single Side Stable
NC4EBD-DC24V
Panasonic Electric Works
General Purpose Relays 5A 24V 4PDT AMB SEAL VERTICAL PLUG-IN Electromechanical Relay 4PDT 5ADC/2AAC 24VDC 800Ohm Socket RELAY GEN PURPOSE 4PDT 5A 24V General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 4C 4PDT Current: 4 Amps Mounting: Plug-In Operating Function: Single Side Stable
NC4EBD-DC12V
Panasonic Electric Works
General Purpose Relays 4 Form C 5A 250VAC 12VDC Electromechanical Relay 4PDT 5ADC/2AAC 12VDC 200Ohm Socket General Purpose Relay Coil Voltage: 12 VDC Contact Configuration: 4C 4PDT Current: 4 Amps Mounting: Plug-In Operating Function: Single Side Stable
NC4D-DC24V
Panasonic Electric Works
General Purpose Relays 5A 24VDC 4PDT VERTICAL PLUG-IN Electromechanical Relay 4PDT 4A 24VDC 800Ohm Socket RELAY GEN PURPOSE 4PDT 5A 24V General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 4C 4PDT Current: 4 Amps Mounting: Plug-In Operating Function: Single Side Stable

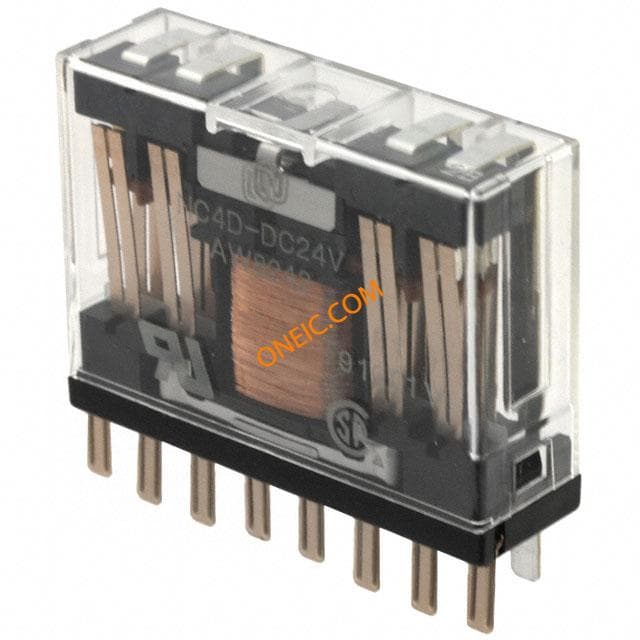

NC4D-DC5V
