NC4D-DC24V
| Manufacturer | |
| Description | General Purpose Relays 5A 24VDC 4PDT VERTICAL PLUG-IN Electromechanical Relay 4PDT 4A 24VDC 800Ohm Socket RELAY GEN PURPOSE 4PDT 5A 24V General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 4C 4PDT Current: 4 Amps Mounting: Plug-In Operating Function: Single Side Stable |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | General Purpose Relays | Standard Package | 20 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Speed | 180 cpm | Current | 4 Amps |
| SCR Type | Standard type | Coil Type | Single Side Stable |
| Coil Power | 720 mW | Reset Time | Max. 20 ms |
| Coil Current | 30mA | Coil Voltage | 24V |
| Release Time | 10ms | Power - Rated | 150W/1KVA |
| Voltage - Max | 26.4 VDC | Power - Output | 2C: 1,250 VA 150 W, 4C: 1,000 VA 150 W |
| Visible Output | No | Coil Resistance | 1.6 kOhms |
| Voltage - Supply | 24 VDC | Switching Voltage | 250VAC - Max |
| Contact Resistance | 50 mohm | Vgs(th) (Max) @ Id | 2.4 VDC |
| Voltage - Rated AC | 250V | Current - Switching | 100 ?A 1 V DC |
| Diode Configuration | No | Voltage - Breakdown | 2,000 Vrms |
| Current Rating (Max) | 5 A | Insulation Resistance | Min. 100 Mohm at 500 V DC |
| Voltage - Input (Min) | 2.4VDC | Power - Average Forward | 360 mW |
| Vce(on) (Max) @ Vge, Ic | 19.2 VDC | Contact Rating (Current) | 5A |
| Voltage - DC Reverse (Vr) (Max) | 30V | High Side Voltage - Max (Bootstrap) | 19.2VDC |
Mechanical
| Seal | Unsealed | Depth | 11.2 mm |
| Height | 27.8 mm | Weight | 2C/Approx. 16 g .56 oz, 4C/Approx. 18 g .63 oz |

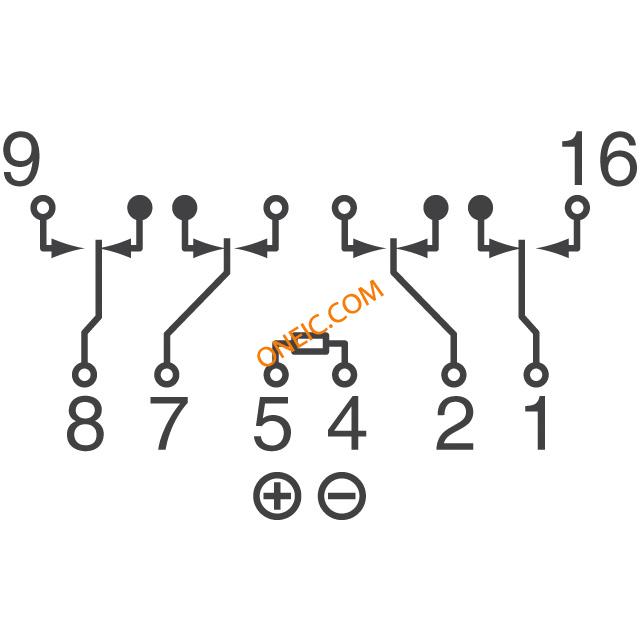

| Packaging | Bulk | Contact Form | 4 Form C (4PDT-BM) |
| Mounting Type | Socketable | Mounting Style | Plug In |
| Package / Case | Dust Cover | Contact Material | Silver Nickel |
| Length - Overall | 38.1 mm | Termination Style | Pin |

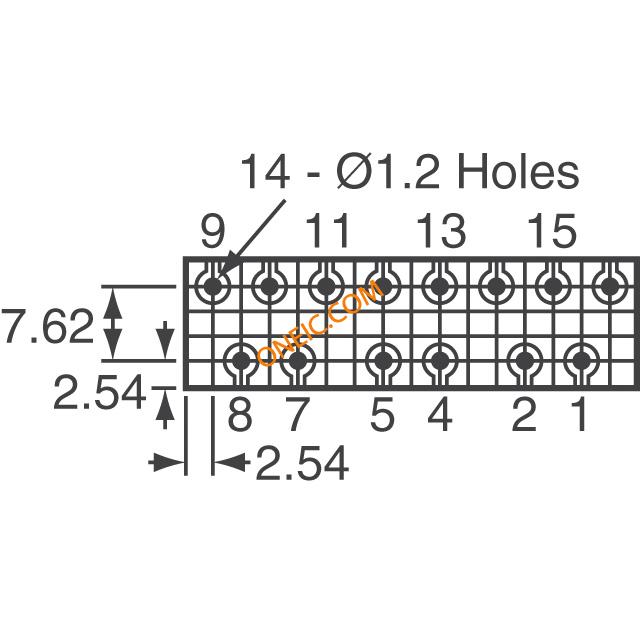

| Contact Termination | Pin | Number of Positions | 14 |
| Contact Layout, Typical | 4PDT | Exterior Housing Material | Vertical series |
| Operating Force - Mid Compression | DC: 40C to +55C, 40F to +131F; AC: 40C to +40C, 40F to +104F | ||
Product Info
| Type | Vertical Power Relay | Function | Single Side Stable |
| Relay Type | General Purpose | Push-to-Test | No |
| Card Standard | General Purpose Relay | ||
Environmental
| Rated Life | 10^5 at 5 A 250 V AC, 510^5 at 5 A 30 V DC | Operate Time | 20ms |
| Humidity Range | 5 to 85% R.H. | Shock Resistance | Min. 980 m/s^2 {100 G} |
| Operating Temperature | -40°C ~ 55°C | Temperature Coefficient | Max. 65C |
| Vibration Resistance (Functional) | 58.8 m/s^2 {6 G}, 10 to 55 Hz at double amplitude of 1 mm | Vibration Resistance (Destructive) | 117.6 m/s^2 {12 G}, 10 to 55 Hz at double amplitude of 2 mm |
