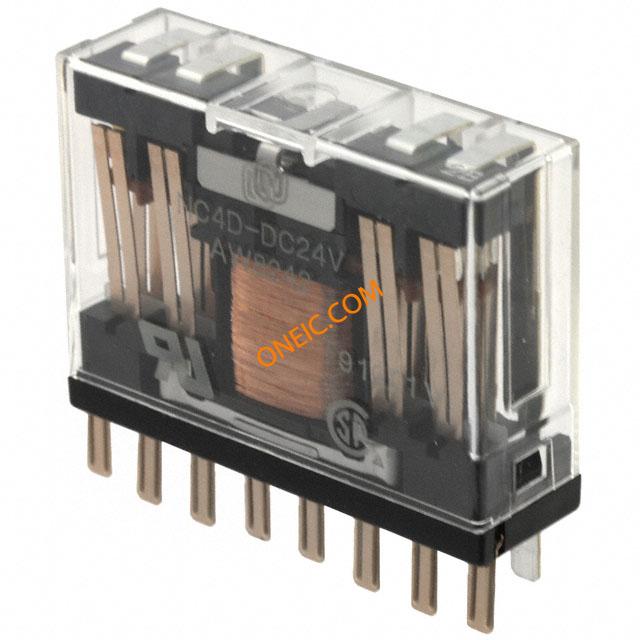

点击放大查看
NC4D-DC12V
| Manufacturer | |
| Description | Relay Sockets & Hardware 4 Form C 5A 250VAC 12VDC RELAY GEN PURPOSE 4PDT 5A 12V Electromechanical Relay 4PDT 4A 12VDC 200Ohm Socket General Purpose Relay Coil Voltage: 12 VDC Contact Configuration: 4C 4PDT Current: 4 Amps Mounting: Plug-In Operating Function: Single Side Stable |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Relay Sockets & Hardware | Standard Package | 20 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Speed | 180 cpm | Current | 4 Amps |
| SCR Type | Standard type | Coil Type | Non Latching |
| Coil Power | 720 mW | Reset Time | Max. 20 ms |
| Coil Current | 60mA | Release Time | 10ms |
| Release Range | 10ms | Voltage - Max | 13.2 VDC |
| Power - Output | 2C: 1,250 VA 150 W, 4C: 1,000 VA 150 W | Coil Resistance | 200 Ohms |
| Voltage - Supply | 12VDC | Switching Voltage | 250VAC - Max |
| Contact Resistance | 50 mohm | Vgs(th) (Max) @ Id | 1.2 VDC |
| Current - Switching | 100 ?A 1 V DC | Voltage - Breakdown | 2,000 Vrms |
| Voltage - Off State | 1.2 VDC | Current Rating (Max) | 5 A |
| Insulation Resistance | Min. 100 Mohm at 500 V DC | Voltage - Input (Min) | 1.2 VDC |
| Power - Average Forward | 720 mW | Vce(on) (Max) @ Vge, Ic | 9.6 VDC |
| Contact Rating (Current) | 5A | Contact Rating @ Voltage | 5A |
Mechanical
| Weight | 2C/Approx. 16 g .56 oz, 4C/Approx. 18 g .63 oz | Packaging | Bulk |
| Contact Form | 4PDT (4 Form C) | Contact Shape | 4PDT (4 Form C) |
| Mounting Type | Socketable | Operating Force | 20ms |
| Contact Material | Silver Nickel (AgNi) | Termination Style | Plug In |
| Contact Layout, Typical | 4C 4PDT | Exterior Housing Material | Vertical series |
| Operating Force - Mid Compression | DC: 40C to +55C, 40F to +131F; AC: 40C to +40C, 40F to +104F | ||
Product Info
| Type | Relays | Function | Single Side Stable |
| Relay Type | General Purpose | Card Standard | General Purpose Relay |
Environmental
| Rated Life | 10^5 at 5 A 250 V AC, 510^5 at 5 A 30 V DC | Operate Time | 20ms |
| Humidity Range | 5 to 85% R.H. | Shock Resistance | Min. 980 m/s^2 {100 G} |
| Operating Temperature | -40°C ~ 55°C | Temperature Coefficient | Max. 65C |
| Vibration Resistance (Functional) | 58.8 m/s^2 {6 G}, 10 to 55 Hz at double amplitude of 1 mm | Vibration Resistance (Destructive) | 117.6 m/s^2 {12 G}, 10 to 55 Hz at double amplitude of 2 mm |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
