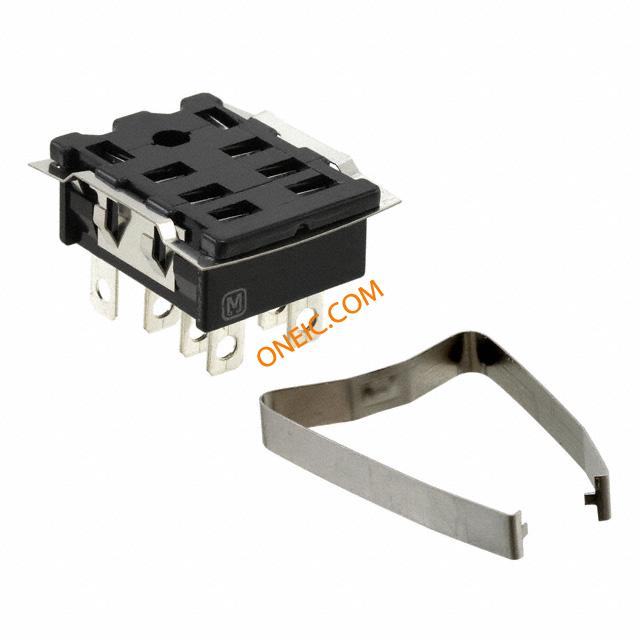

HL2-SS-K
| Manufacturer | |
| Description | Relay Sockets & Hardware HL2 Plug-in socket Conn Relay Socket SKT 8 POS Solder Lug ST Panel Mount Carton SOCKET TERM W/CLIP FOR HL2 RELAY RELAY SOCKET* WITH SOLDER TERMINALS AND HOLD DOWN SPRING |
| Category |
Business
| Product Category | Relay Sockets & Hardware | Standard Package | 20 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Insulation Resistance | 100 | ||
Mechanical
| Depth | 18.7 | Height | 25.5 |
| Packaging | Bulk | Termination | Solder Lug |
| Mounting Type | Panel Mount | Length - Overall | 29.4 |
| Termination Style | Solder Lug | Number of Contacts | 8 |
| Number of Positions | 8 | ||
Product Info
| Type | Relay Socket | Gender | SKT |
| Features | Mounting Hardware | For Use With/Related Products | HL2 Relays |
