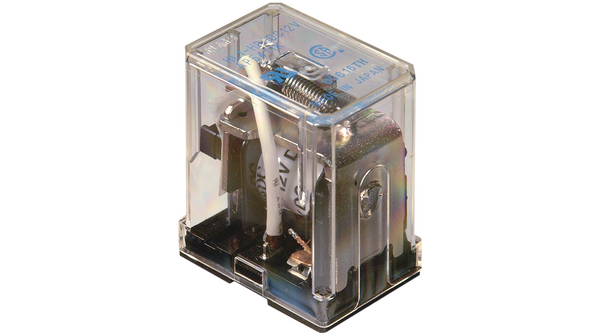

HL2-H-AC240V-F
| Manufacturer | |
| Description | General Purpose Relays 2 Form C 220/240VAC Plug-In RELAY GEN PURPOSE DPDT 10A 240V Electromechanical Relay DPDT 10A 220/240VAC Socket General Purpose Relay Coil Voltage: 220-240 VAC Contact Configuration: 2C DPDT Current: 10 Amps Mounting: Plug-In Operating Function: Single Side Stable PCB power relay 240 VAC 1.3 VA, HL2-H-AC240V-F, Panasonic |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | General Purpose Relays | Standard Package | 20 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current | 10 Amps | Coil Type | Single Side Stable |
| Coil Power | 1.2 VA | Inductance | 1.3 |
| Coil Current | 5mA | Release Time | 25ms |
| Voltage - Test | 2 | Voltage - Supply | 220 V, 240 V |
| Switching Voltage | 125VAC - Nom | Vgs(th) (Max) @ Id | 72 VAC |
| Current - Switching | 10 A@ 125 VAC | Power - Average Forward | 1.3 VA at 50 Hz, 1.2 VA at 60 Hz |
| Vce(on) (Max) @ Vge, Ic | 192 VAC | Contact Rating (Current) | 10A |
Mechanical
| Size | 27.2 x 20.8 x 35.4 mm | Packaging | Bulk |
| Contact Form | 2 Form C (DPDT-BM) | Mounting Type | Socketable |
| Mounting Style | Plug In | Contact Material | Silver Tin Oxide (AgSnO) |
| Termination Style | Quick Connect | Number of Contacts | 2 change-over (CO) |
| Contact Termination | Quick Connect | Contact Layout, Typical | 2C DPDT |
Product Info
| Type | Relays | Function | Single Side Stable |
| Relay Type | General Purpose | Card Standard | General Purpose Relay |
Environmental
| Operate Time | 25ms | Operating Temperature | -50°C ~ 70°C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
