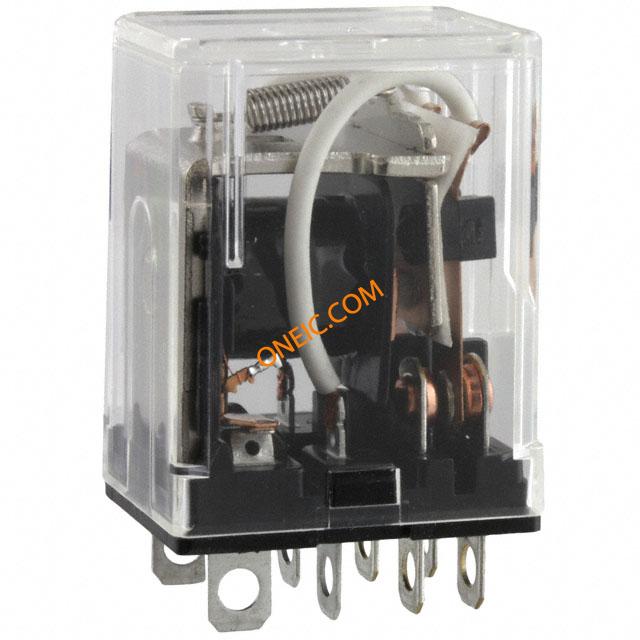

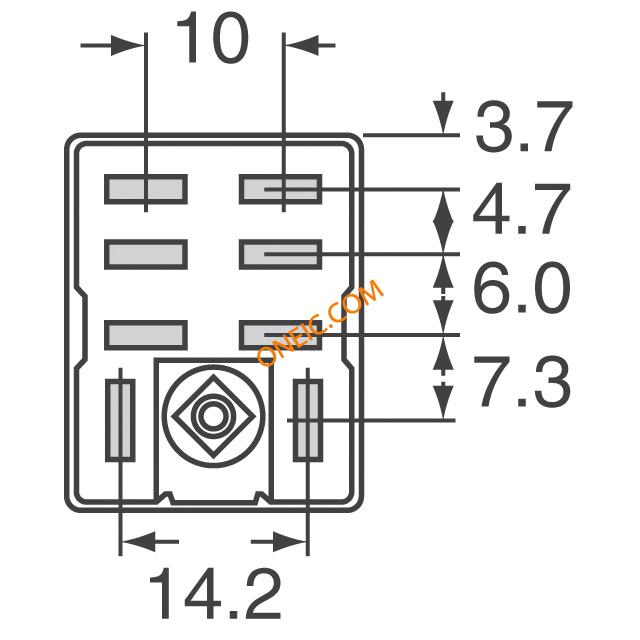

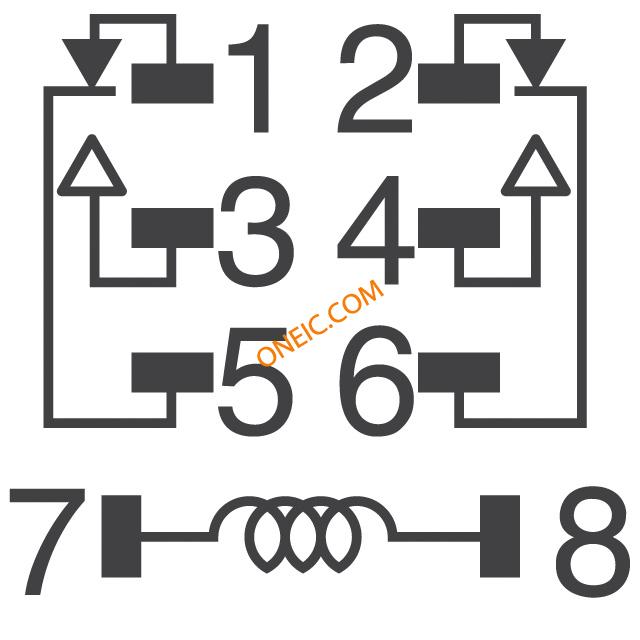

HL2-H-AC115V-F
| Manufacturer | |
| Description | General Purpose Relays HL1 Relay (Plug-in) RELAY RELAY GEN PURPOSE DPDT 10A 115V General Purpose Relay Coil Voltage: 110-120 VAC Contact Configuration: 2C DPDT Current: 10 Amps Mounting: Plug-In Operating Function: Single Side Stable |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Pack | 20 | Product Category | General Purpose Relays |
| Standard Package | 20 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current | 10 Amps | Coil Type | Non Latching |
| Coil Power | 1.2 VA | Coil Current | 10.4mA |
| Release Time | 25ms | Release Range | 25ms |
| Voltage - Supply | 120 V | Switching Voltage | 125VAC - Nom |
| Vgs(th) (Max) @ Id | 34.5 VAC | Voltage - Off State | 34.5 VAC |
| Power - Average Forward | 1.2 VA | Vce(on) (Max) @ Vge, Ic | 92 VAC |
| Contact Rating (Current) | 10A | Contact Rating @ Voltage | 10A |
Mechanical
| Packaging | Bulk | Contact Form | 2 Form C (DPDT-BM) |
| Contact Shape | DPDT (2 Form C) | Mounting Type | Socketable |
| Mounting Style | Plug In | Operating Force | 25ms |
| Contact Material | Silver Tin Oxide | Termination Style | Plug In, QC - 0.187" (4.7mm) |
| Contact Layout, Typical | 2C DPDT | ||
Product Info
| Type | Relays | Series | HL |
| Function | Single Side Stable | Relay Type | General Purpose |
| Card Standard | General Purpose Relay | ||
Environmental
| Operate Time | 25ms | Operating Temperature | -50°C ~ 70°C |
Documents & Media
PDF Document
PDF Document
PDF Document
PDF Document
Similar Parts
HL2-PS-K
Panasonic Electric Works
Relay Sockets & Hardware FOR HL2 RELAY PCB Conn Relay Socket SKT 8 POS Solder ST Thru-Hole SOCKET TERM PCB FOR HL2 RELAY HL2RelaySocket RELAY SOCKET* WITH PCB TERMINALS AND HOLD DOWN SPRING
$7.4120
Details
HL2-SFD-K
Panasonic Electric Works
Relay Sockets & Hardware FOR HL2 RELAYS SCREW DIN Conn Relay Socket SKT 8 POS Screw ST Panel Mount SOCKET TERM SCREW DIN HL2 RELAY RELAY SOCKET*, DIN RAIL MOUNT WITH HOLD DOWN SPRING Space Saving HL Series Power Relay
$13.8040
Details
HL2-SS-K
Panasonic Electric Works

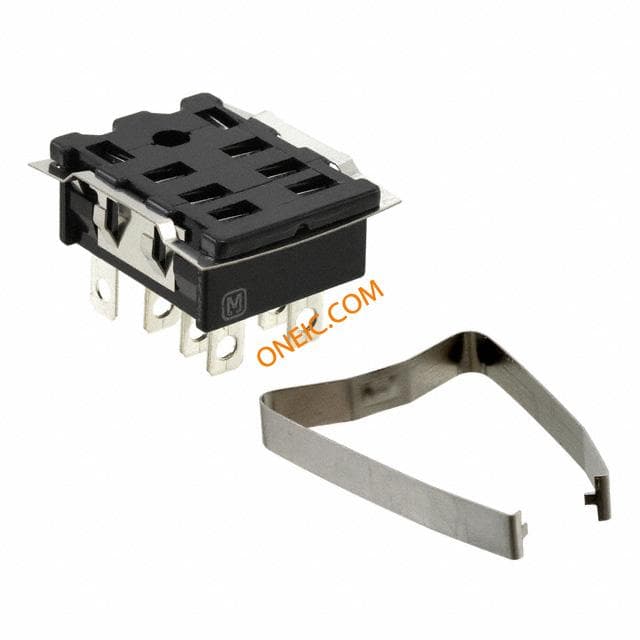

Relay Sockets & Hardware HL2 Plug-in socket Conn Relay Socket SKT 8 POS Solder Lug ST Panel Mount Carton SOCKET TERM W/CLIP FOR HL2 RELAY RELAY SOCKET* WITH SOLDER TERMINALS AND HOLD DOWN SPRING
