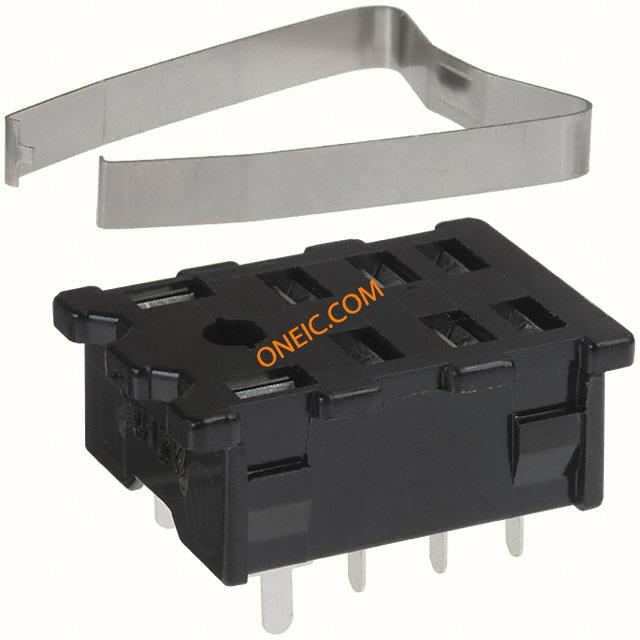

HL2-PS-K
| Manufacturer | |
| Description | Relay Sockets & Hardware FOR HL2 RELAY PCB Conn Relay Socket SKT 8 POS Solder ST Thru-Hole SOCKET TERM PCB FOR HL2 RELAY HL2RelaySocket RELAY SOCKET* WITH PCB TERMINALS AND HOLD DOWN SPRING |
| Category |
Business
| Product Category | Relay Sockets & Hardware | Standard Package | 20 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | EU RoHS | Compliant |
| Rad Hardened | No | ||
Electrical
| Insulation Resistance | 100 Mohm | ||
Mechanical
| Depth | 21.2 mm | Height | 12.2 mm |
| Packaging | Bulk | Termination | Solder |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Length - Overall | 29.4 mm | Termination Style | Solder Pin |
| Number of Contacts | 8 | Number of Positions | 8 |
Product Info
| Type | Relay Socket | Gender | SKT |
| Series | HL2 | Accessory Type | Sockets |
| For Use With/Related Products | HL2 Relays | ||
Environmental
| Operating Temperature | -50C to 70C | ||
Documents & Media
Similar Parts
HL2-H-AC115V-F
Panasonic Electric Works
General Purpose Relays HL1 Relay (Plug-in) RELAY RELAY GEN PURPOSE DPDT 10A 115V General Purpose Relay Coil Voltage: 110-120 VAC Contact Configuration: 2C DPDT Current: 10 Amps Mounting: Plug-In Operating Function: Single Side Stable
HL2-H-AC120V-F
Panasonic Electric Works
General Purpose Relays 10A DPDT 12VAC PLUG-IN RELAY GEN PURPOSE DPDT 10A 120V Electromechanical Relay DPDT 10A 110/120VAC Socket POWER RELAY, 120VAC, 10A, DPDT, PLUG-IN HL Series 10 A DPST 120 VAC Plug-In Space Saving General Purpose Power Relay PCB power relay 120 VAC 1.3 VA, HL2-H-AC120V-F, Panasonic
HL2-H-AC100V-F
Panasonic Electric Works
General Purpose Relays HL1 Relay RELAY GEN PURPOSE DPDT 10A 100V Electromechanical Relay DPDT 10A 100/110VAC Socket General Purpose Relay Coil Voltage: 100 VAC Contact Configuration: 2C DPDT Current: 10 Amps Mounting: Plug-In Operating Function: Single Side Stable
HL2-H-AC24V-F
Panasonic Electric Works
General Purpose Relays 10A DPDT 24VAC PLUG-IN Electromechanical Relay DPDT 10A 24VAC Socket RELAY GEN PURPOSE DPDT 10A 24V General Purpose Relay Coil Voltage: 24 VAC Contact Configuration: 2C DPDT Current: 10 Amps Mounting: Plug-In Operating Function: Single Side Stable
HL2-H-DC12V-F
Panasonic Electric Works
General Purpose Relays 10A DPDT 12VDC PLUG-IN Electromechanical Relay DPDT 10A 12VDC 160Ohm Socket RELAY GEN PURPOSE DPDT 10A 12V POWER RELAY, 12VDC, 10A, DPDT, PLUG-IN General Purpose Relay Coil Voltage: 12 VDC Contact Configuration: 2C DPDT Current: 10 Amps Mounting: Plug-In Operating Function: Single Side Stable
HL2-H-DC6V-F
Panasonic Electric Works
General Purpose Relays HL2 Relay RELAY GEN PURPOSE DPDT 10A 6V Electromechanical Relay DPDT 10A 6VDC 40Ohm Socket General Purpose Relay Coil Voltage: 6 VDC Contact Configuration: 2C DPDT Current: 10 Amps Mounting: Plug-In Operating Function: Single Side Stable HL Series 10 A DPST 6 VDC Plug-In Space Saving General Purpose Power Relay
HL2-H-DC24V-F
Panasonic Electric Works
General Purpose Relays 10A DPDT 24VDC PLUG-IN Electromechanical Relay DPDT 10A 24VDC 650Ohm Socket RELAY GEN PURPOSE DPDT 10A 24V POWER RELAY, 24VDC, 10A, DPDT, PLUG-IN HL2Relay,Plug-in,Cd-Free, General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 2C DPDT Current: 10 Amps Mounting: Plug-In Operating Function: Single Side Stable

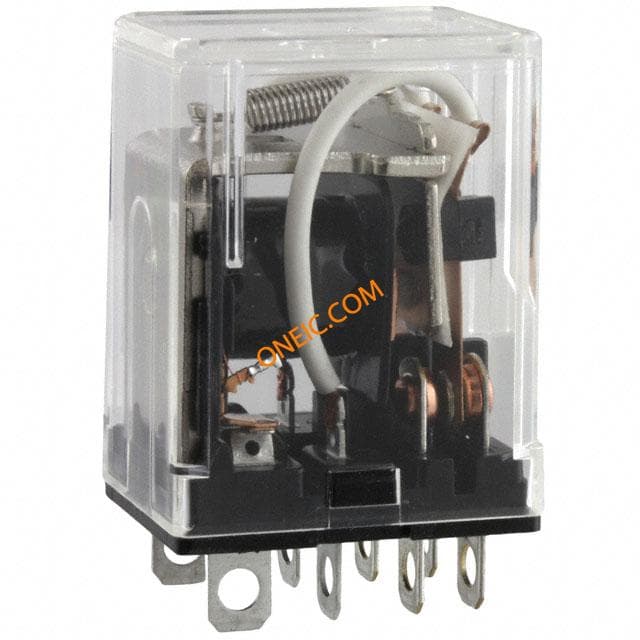

HL2-H-DC48V-F
