DSP1A-DC5V
| Manufacturer | |
| Description | General Purpose Relays 8A 5VDC SPST-NO SEALED PCB Electromechanical Relay SPST-NO 5ADC/8AAC 5VDC 83Ohm Through Hole RELAY GENERAL PURPOSE SPST 8A 5V Relay;E-Mech;Power;SPST-NO;Cur-Rtg 8/5AAC/ADC;Ctrl-V 5DC;Vol-Rtg 250/30AC/DC POWER RELAY, SPST-NO, 5VDC, 8A, PC BOARD RELAY, PCB, SPNO, 8A, 5VDC Relay;E-Mech;Power;SPST-NO;Cur-Rtg8/5AAC/ADC;Ctrl-V5DC;Vol-Rtg250/30AC/DC General Purpose Relay Coil Voltage: 5 VDC Contact Configuration: 1A SPST-NO Current: 8 Amps Mounting: PC Board Operating Function: Single Side Stable PCB power relay 6 VDC 300 mW, DSP1A-DC5V, Panasonic Panasonic 单极常开 PCB（印刷电路板）安装 非闭锁继电器, 5 A, 5V dc |
| Category |
Business
| Product Category | General Purpose Relays | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85365005 |
Electrical
| Coil Type | Single Side Stable | Coil Power | 300 mW |
| Range deg/s | :PANASONIC EW - DSP Series | Coil Current | 60 mA |
| Release Time | 5ms | Power - Rated | 150W|2kVA |
| Visible Output | No | Voltage Rating | 30 |
| Coil Resistance | 83 Ohms | Pushing (MHz/V) | No |
| Current - Output | :8A | Voltage - Supply | 5 V |
| Switching Voltage | 250VAC, 30VDC - Max | Vgs(th) (Max) @ Id | 0.5 VDC |
| Voltage - Clamping | 4VDC | Diode Configuration | No |
| Current Rating (Max) | 5DC|8AC | Contact Voltage (Max) | :250V |
| Current - Max/Contact | :8A | Voltage - Input (Min) | 0.5VDC |
| Power - Average Forward | 300 mW | Vce(on) (Max) @ Vge, Ic | 4 VDC |
| Contact Rating (Current) | 8A | Voltage - Supply, Digital | :30V |
| Voltage - Supply (Vcc/Vdd) | :30V | Voltage - Rated AC (Phase to Ground/Neutral) | :250V |

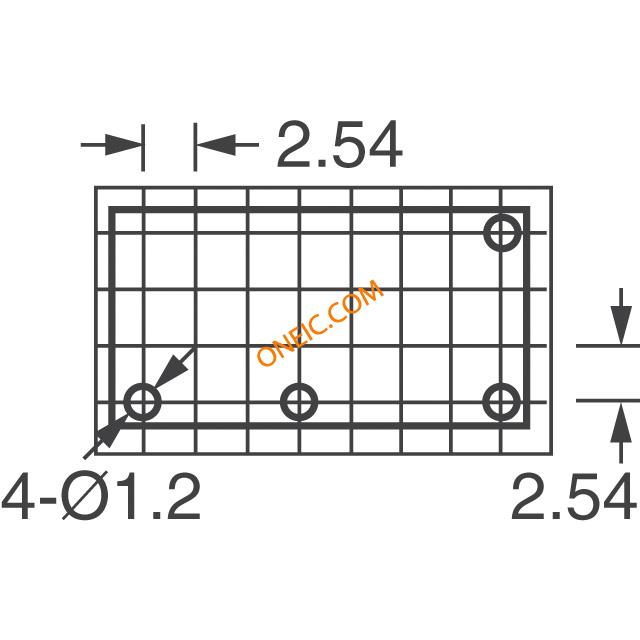

Mechanical

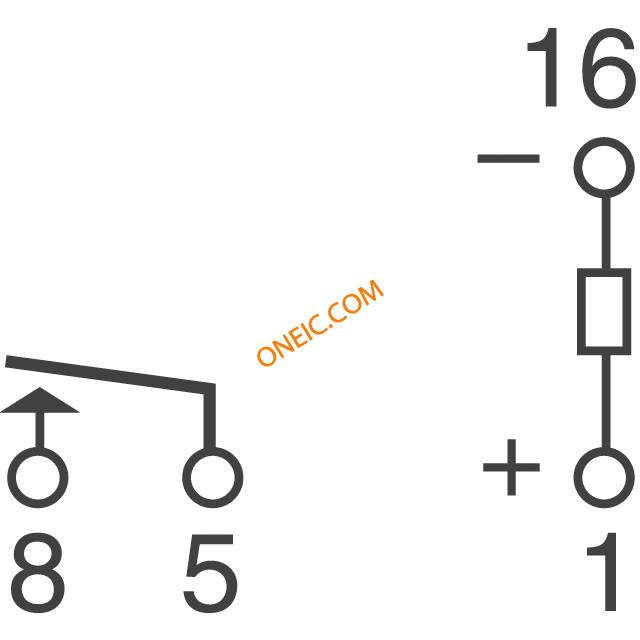

| Seal | Sealed | Depth | :20.2mm |
| Width | :11mm | Height | 10.5 |
| Weight | 0.005 | Packaging | Bulk |
| Contact Form | 1 Form A (SPST-NO) | Height (Max) | :10.5mm |
| Mounting Type | Through Hole | Mounting Style | Through Hole |
| Contact Material | Silver Tin Oxide | Length - Overall | 20.2 |
| Termination Style | Solder Terminal | Number of Contacts | 4 |
| Contact Termination | Solder Terminal | Contact Layout, Typical | SPST-NO |
Product Info
| Type | Polarized Power Relay | Features | Sealed - Fully |
| Relay Type | Non-Latching | ||
Environmental
| Operate Time | 10ms | Operating Temperature | -40°C ~ 60°C |
