DSP1A-PS
| Manufacturer | |
| Description | Relay Sockets & Hardware FOR DSP1A RELAYS Conn Relay Socket SKT 6 POS Solder ST Thru-Hole SOCKET PC MNT FOR DSP1A RELAYS Socket; PCB Mount; 3000 V (RMS); 8 A (Max.); 1000 Megohms (Between Terminals) Socket,Relay;PCBMount;3000V(RMS);8A;1000Megohms(BetweenTerminals) DSP Relay Socket, 1 Form A Socket for DSP Series Relay Relay socket, DSP1A-PS, Panasonic |
| Category |
Business
| Product Category | Relay Sockets & Hardware | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | EU RoHS | Compliant |
Electrical
| Voltage - Breakdown | 3000V(RMS) | Current Rating (Max) | 8A |
| Insulation Resistance | 1000Megohms(BetweenTerminals) | ||
Mechanical
| Depth | 11 | Width | 11mm |
| Height | 17mm | Length | 23mm |
| Packaging | Bulk | Termination | Solder |
| Mounting Type | Straight | Mounting Style | PCBMount |
| Number of Rows | 2 | Length - Overall | 23 |
| Termination Style | Solder Pin | Number of Contacts | 6 |
| Number of Positions | 4 | ||
Product Info
| Type | Relay Socket | Gender | SKT |
| Series | DSP | Description | Socket for DSP1a relay, 1 NO contact |
| Accessory Type | Sockets | Number of Slots/Relays | DSP1a |
| For Use With/Related Products | DSP1A Relays | ||
Documents & Media
Similar Parts
DSP1A-DC6V
Panasonic Electric Works
General Purpose Relays 1 Form A 6VDC 1 Form A 8A 250VAC RELAY GENERAL PURPOSE SPST 8A 6V Electromechanical Relay SPST-NO 5ADC/8AAC 6VDC 120Ohm Through Hole General Purpose Relay Coil Voltage: 6 VDC Contact Configuration: 1A SPST-NO Current: 8 Amps Mounting: PC Board Operating Function: Single Side Stable
DSP1A-DC12V
Panasonic Electric Works
General Purpose Relays 8A 12VDC SPST-NO SEALED PCB Electromechanical Relay SPST-NO 5ADC/8AAC 12VDC 480Ohm Through Hole RELAY GEN PURPOSE SPST 8A 12V Relay;E-Mech;Power;SPST-NO;Cur-Rtg 8/5AAC/ADC;Ctrl-V 12DC;Vol-Rtg 250/30AC/DC RELAY, SPST 12VDC Relay;E-Mech;Power;SPST-NO;Cur-Rtg8/5AAC/ADC;Ctrl-V12DC;Vol-Rtg250/30AC/DC General Purpose Relay Coil Voltage: 12 VDC Contact Configuration: 1A SPST-NO Current: 8 Amps Mounting: PC Board Operating Function: Single Side Stable PCB power relay 12 VDC 300 mW, DSP1A-DC12V, Panasonic Panasonic 单极常开 PCB（印刷电路板）安装 非闭锁继电器, 5 A, 12V dc
DSP1A-DC9V
Panasonic Electric Works
General Purpose Relays 8A 9VDC SPST-NO SEALED PCB Electromechanical Relay SPST-NO 5ADC/8AAC 9VDC 270Ohm Through Hole RELAY GENERAL PURPOSE SPST 8A 9V General Purpose Relay Coil Voltage: 9 VDC Contact Configuration: 1A SPST-NO Current: 8 Amps Mounting: PC Board Operating Function: Single Side Stable PCB power relay 9 VDC 300 mW, DSP1A-DC9V, Panasonic
DSP1A-DC24V
Panasonic Electric Works
General Purpose Relays 8A 24VDC SPST-NO SEALED PCB Electromechanical Relay SPST-NO 5ADC/8AAC 24VDC 1.92KOhm Through Hole RELAY GEN PURPOSE SPST 8A 24V Relay;E-Mech;Power;SPST-NO;Cur-Rtg 8/5AAC/ADC;Ctrl-V 24DC;Vol-Rtg 250/30AC/DC RELAY, SPST 24VDC Relay;E-Mech;Power;SPST-NO;Cur-Rtg8/5AAC/ADC;Ctrl-V24DC;Vol-Rtg250/30AC/DC General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 1A SPST-NO Current: 8 Amps Mounting: PC Board Operating Function: Single Side Stable PCB power relay 24 VDC 300 mW, DSP1A-DC24V, Panasonic Panasonic 单极常开 PCB（印刷电路板）安装 非闭锁继电器, 5 A, 24V dc
DSP1A-DC24V-R
Panasonic Electric Works
General Purpose Relays 1 Form A 24VDC 1 Form A 8A 250VAC Electromechanical Relay SPST-NO 5ADC/8AAC 24VDC 1.92KOhm Through Hole RELAY GEN PURPOSE SPST 8A 24V Relay;GeneralPurpose/IndustrialRelays1FormA24VDC1FormA8A250VAC General Purpose Relay Coil Voltage: 24 VDC Contact Configuration: 1A SPST-NO Current: 8 Amps Mounting: PC Board Operating Function: Single Side Stable PCB power relay 24 VDC 300 mW, DSP1A-DC24V-R, Panasonic Panasonic 单极常开 PCB（印刷电路板）安装 非闭锁继电器, 5 A, 24V dc
DSP1A-DC5V
Panasonic Electric Works
General Purpose Relays 8A 5VDC SPST-NO SEALED PCB Electromechanical Relay SPST-NO 5ADC/8AAC 5VDC 83Ohm Through Hole RELAY GENERAL PURPOSE SPST 8A 5V Relay;E-Mech;Power;SPST-NO;Cur-Rtg 8/5AAC/ADC;Ctrl-V 5DC;Vol-Rtg 250/30AC/DC POWER RELAY, SPST-NO, 5VDC, 8A, PC BOARD RELAY, PCB, SPNO, 8A, 5VDC Relay;E-Mech;Power;SPST-NO;Cur-Rtg8/5AAC/ADC;Ctrl-V5DC;Vol-Rtg250/30AC/DC General Purpose Relay Coil Voltage: 5 VDC Contact Configuration: 1A SPST-NO Current: 8 Amps Mounting: PC Board Operating Function: Single Side Stable PCB power relay 6 VDC 300 mW, DSP1A-DC5V, Panasonic Panasonic 单极常开 PCB（印刷电路板）安装 非闭锁继电器, 5 A, 5V dc
DSP1A-L-DC5V
Panasonic Electric Works
General Purpose Relays 1 Form A 5VDC 1 Form A 8A 250VAC RELAY GENERAL PURPOSE SPST 8A 5V Electromechanical Relay SPST-NO 5ADC/8AAC 5VDC 83Ohm Through Hole General Purpose Relay Coil Voltage: 5 VDC Contact Configuration: 1A SPST-NO Current: 8 Amps Mounting: PC Board Operating Function: 1 Coil Latching PCB power relay 5 VDC 150 mW, DSP1A-L-DC5V, Panasonic

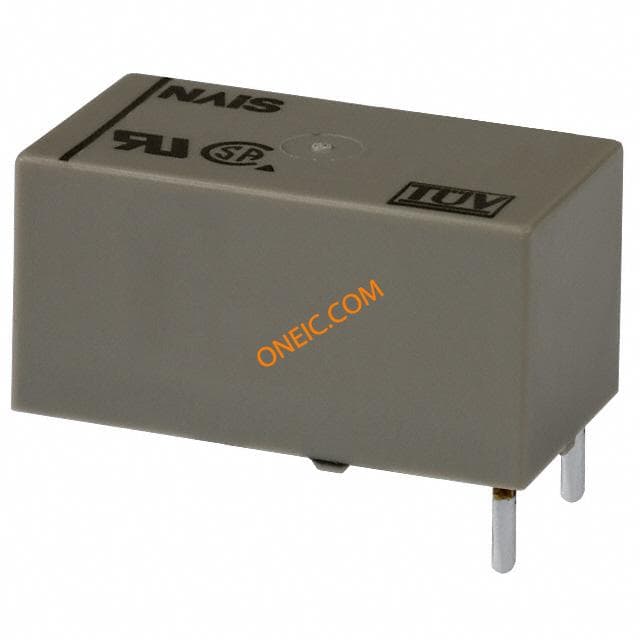

DSP1A-DC5V-R
