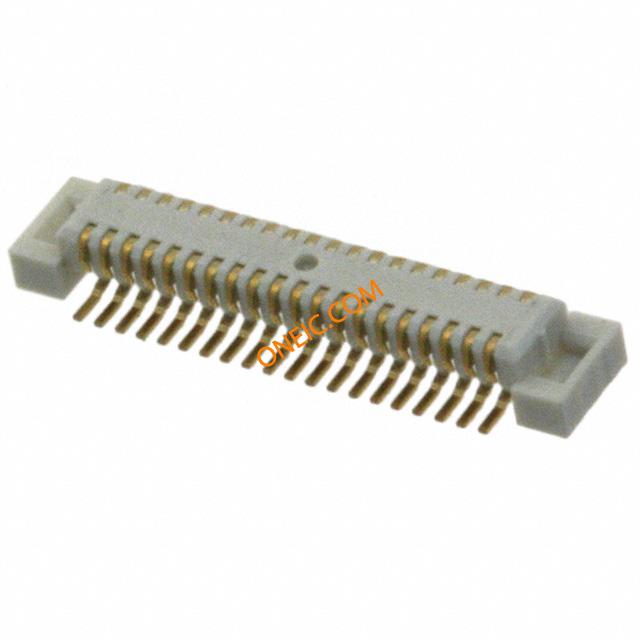

AXK6F80547YG
| Manufacturer | |
| Description | Board to Board & Mezzanine Connectors CONN HEADER BRD/BRD 80 POS 0.5mm Conn Board to Board HDR 80 POS 0.5mm Solder ST SMD Embossed T/R CONN HEADER BRD/BRD .5MM 80POS |
| Category |
Business
| Other Names | 255-3551-1 | Product Category | Board to Board & Mezzanine Connectors |
| Standard Package | 1,000 | Factory Pack Quantity | 2000 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 60 V | Contact Resistance | 90 |
| Current Rating (Max) | 0.5 A | Voltage - Input (Min) | 60VDC|60VAC |
Mechanical
| Depth | 2.5 | Pitch | 0.5 mm |
| Height | 1.75 | Packaging | Reel |
| Termination | Solder | Mounting Type | Vertical |
| Connector Type | Header, Center Strip Contacts | Contact Finish | Gold |
| Mounting Style | SMD/SMT | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Liquid Crystal Polymer (LCP) |
| Length - Overall | 23 | Termination Style | SMD |
| Height Above Board | 0.069" (1.75mm) | Number of Contacts | 80 |
| Number of Positions | 80 | Height - Seated (Max) | 0.069" (1.75mm) |
| Mated Stacking Heights | 2.5mm | ||
Product Info
| Type | Board to Board | Gender | HDR |
| Series | P5 | Product Type | Headers |
Environmental
| Mating Cycles | 2.5mm | ||
Documents & Media
Similar Parts

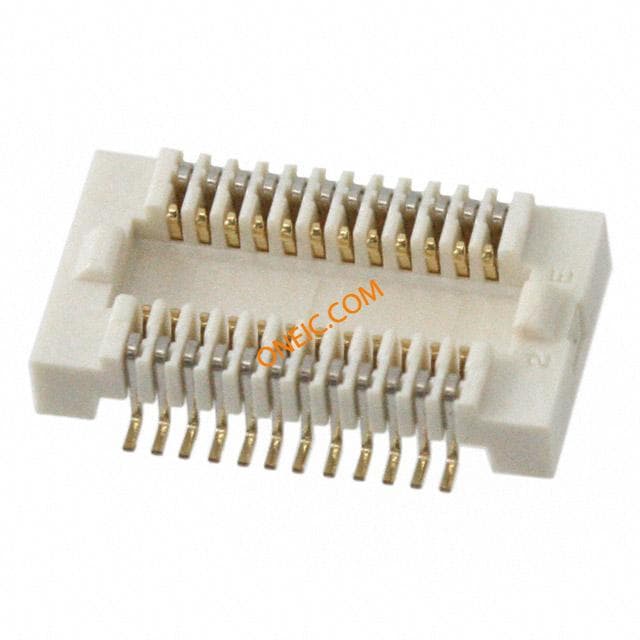

AXK5F80547YG
Panasonic Electric Works
Board to Board & Mezzanine Connectors CONN SOCKET BRD/BRD 80 POS 0.5mm Conn Board to Board SKT 80 POS 0.5mm Solder ST SMD Embossed T/R CONN SOCKET BRD/BRD .5MM 80POS

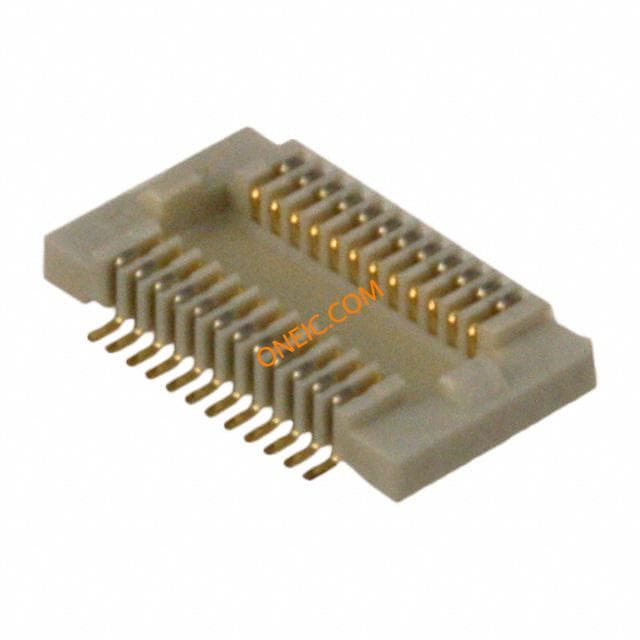

AXK5F80337YG
