AXK5F80337YG
| Manufacturer | |
| Description | Board to Board & Mezzanine Connectors CONN SOCKET BRD/BRD 80 POS 0.5mm CONN SOCKET BRD/BRD .5MM 80POS Conn Board to Board SKT 80 POS 0.5mm Solder ST SMD Embossed T/R |
| Category |
Business
| Standard Package | 1,000 | Factory Pack Quantity | 2000 |
Compliance
| RoHS | RoHS Compliant By Exemption | ||
Electrical
| Voltage Rating | 60 V | Current Rating (Max) | 500 mA |
Mechanical
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount | Connector Type | Socket, Outer Shroud Contacts |
| Contact Finish | Gold | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Liquid Crystal Polymer (LCP) |
| Termination Style | SMD | Height Above Board | 0.053" (1.35mm) |
| Number of Contacts | 80 | Number of Positions | 80 |
| Mated Stacking Heights | 1.5mm | ||
Product Info
| Series | P5 | Features | Board Guide |
| Product Type | Receptacles | ||
Documents & Media
Similar Parts
AXK6F80337YG
Panasonic Electric Works
Board to Board & Mezzanine Connectors CONN HEADER BRD/BRD 80 POS 0.5mm CONN HEADER BRD/BRD .5MM 80POS Conn Board to Board HDR 80 POS 0.5mm Solder ST SMD Embossed T/R
AXK6F80547YG
Panasonic Electric Works
Board to Board & Mezzanine Connectors CONN HEADER BRD/BRD 80 POS 0.5mm Conn Board to Board HDR 80 POS 0.5mm Solder ST SMD Embossed T/R CONN HEADER BRD/BRD .5MM 80POS
AXK5F80547YG
Panasonic Electric Works
Board to Board & Mezzanine Connectors CONN SOCKET BRD/BRD 80 POS 0.5mm Conn Board to Board SKT 80 POS 0.5mm Solder ST SMD Embossed T/R CONN SOCKET BRD/BRD .5MM 80POS

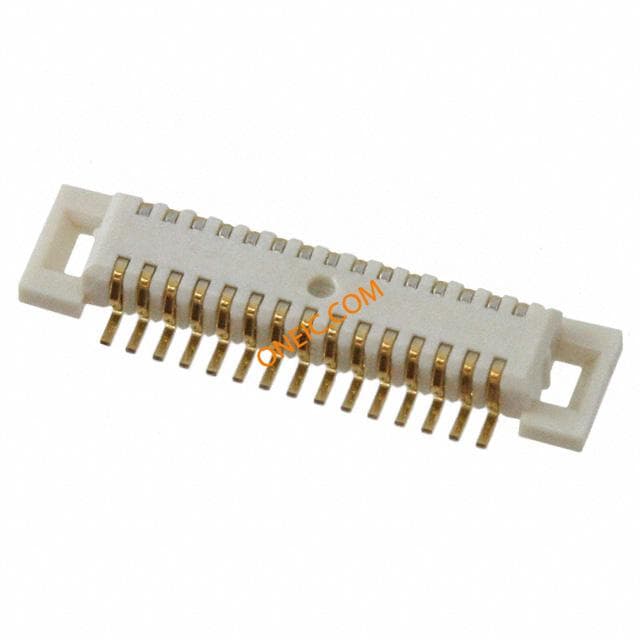

AXK6F80347YG
Panasonic Electric Works
基板間およびメザニンコネクタ CONN HEADER BRD/BRD 80 POS 0.5mm Conn Board to Board HDR 80 POS 0.5mm Solder ST SMD Embossed T/R CONN HEADER BRD/BRD .5MM 80POS Board to Board & Mezzanine Connectors CONN HEADER BRD/BRD 80 POS 0.5mm

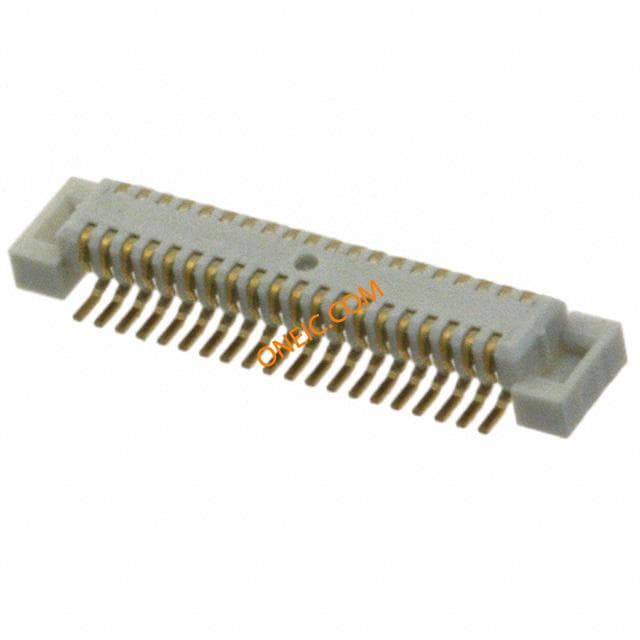

AXK6F80537YG
