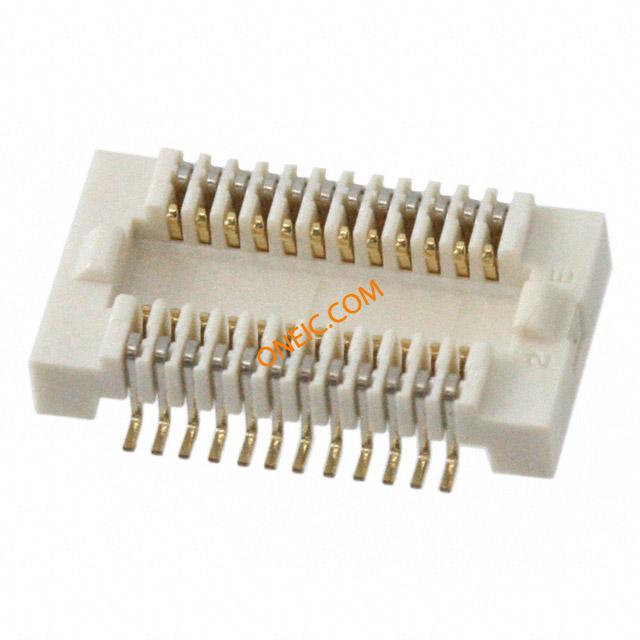

点击放大查看
AXK5F80537YG
| Manufacturer | |
| Description | Board to Board & Mezzanine Connectors CONN SOCKET BRD/BRD 80 POS 0.5mm Conn Board to Board SKT 80 POS 0.5mm Solder ST SMD Embossed T/R CONN SOCKET BRD/BRD .5MM 80POS |
| Category |
Business
| Standard Package | 1,000 | Factory Pack Quantity | 2000 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 60 V | Current Rating (Max) | 500 mA |
Mechanical
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount | Connector Type | Socket, Outer Shroud Contacts |
| Contact Finish | Gold | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Liquid Crystal Polymer (LCP) |
| Termination Style | SMD | Height Above Board | 0.073" (1.85mm) |
| Number of Contacts | 80 | Number of Positions | 80 |
| Mated Stacking Heights | 2mm, 2.5mm | ||
Product Info
| Series | P5 | Features | Board Guide |
| Product Type | Receptacles | ||
