XG5M-3432-N
| Manufacturer | |
| Description | Headers & Wire Housings IDC 2Row Socket 34P Size1 1PolarizeGuide Conn Housing PL 34 POS 2.54mm Crimp ST CONN DBL ROW SOCKETS 34POS AWG24 欧姆龙(OMRON) 其它传感器附件 |
| Category |
Business
| Lead Time | 89 Days | Subcategory | Connector Discrete Wire Housing |
| Part # Aliases | 1753098 675942 | Product Category | Headers & Wire Housings |
| Standard Package | 60 | Factory Pack Quantity | 60 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 300 V | Switch Function | Unlatched |
| Current Rating (Max) | 3 A | Voltage - Input (Min) | 300VAC |
Mechanical
| Color | Black | Depth | 14.4 |
| Pitch | 0.100" (2.54mm) | Height | 7.1 |
| Packaging | Bulk | Wire Type | Discrete |
| Wire Gauge | 24 AWG | Row Spacing | 0.100" (2.54mm) |
| Contact Type | Female Socket | Housing Color | Black |
| Mounting Type | Straight | Connector Type | Receptacle |
| Contact Finish | Gold | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Polybutylene Terephthalate |
| Length - Overall | 47.7 | Cable Termination | IDC |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 34 |
| Number of Positions | 34 | Contact Finish Thickness | 5.9µin (0.15µm) |
Product Info
| Type | Housing | Gender | PL |
| Series | XG5 | Features | Closed End, Polarizing Key |
| Product Type | Receptacles / Sockets - Housings | ||
Documents & Media
Similar Parts
XG8W-3431
Omron Electronics
Headers & Wire Housings Plug Straight Term 34Contact AuPlating PLUG 34POS DOUBLE ROW STRAIGHT
XY2B-7006
Omron Electronics
Crimpers IDC Tool for XG5M Wire AWG 24-28 HANDTOOL CRIMPER FOR XG5M Termination Tool Ideal For Use In The Laboratory Or For Maintenance 欧姆龙(OMRON) 接触器辅助触头 IDC Tool for XG5M Wire AWG 24-28

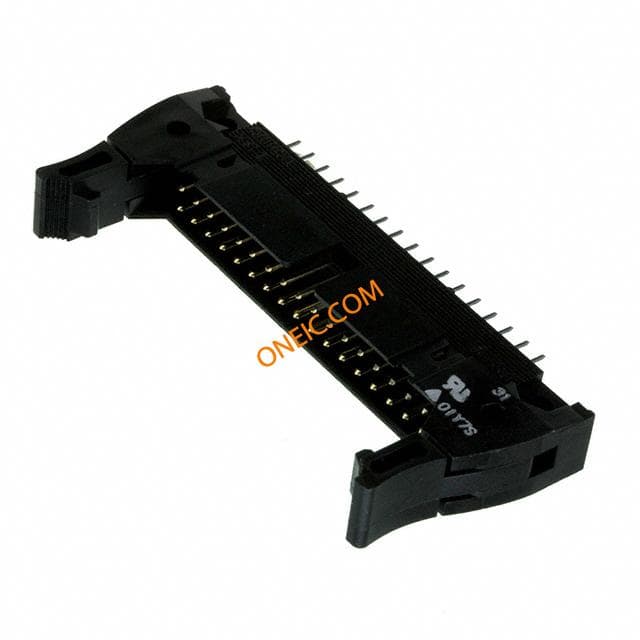

XG4A-3431
omron electronics
Conn Ejector Header PL 34 POS 2.54mm Solder ST Thru-Hole CONN PLUG 34POS 3A 300V STRT DIP Headers & Wire Housings Plug Long Lock 34P Straight 1Polarize WIRE-BOARD CONNECTOR PLUG, 34POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件
XG4E-3431
omron electronics
Conn Ejector Header PL 34 POS 2.54mm IDT RA Cable Mount CONN PLUG 34POS 1A OPENEND COVER Headers & Wire Housings LongLock Plug 34Pin OpenCover 1Polarized 欧姆龙(OMRON) 其它传感器附件

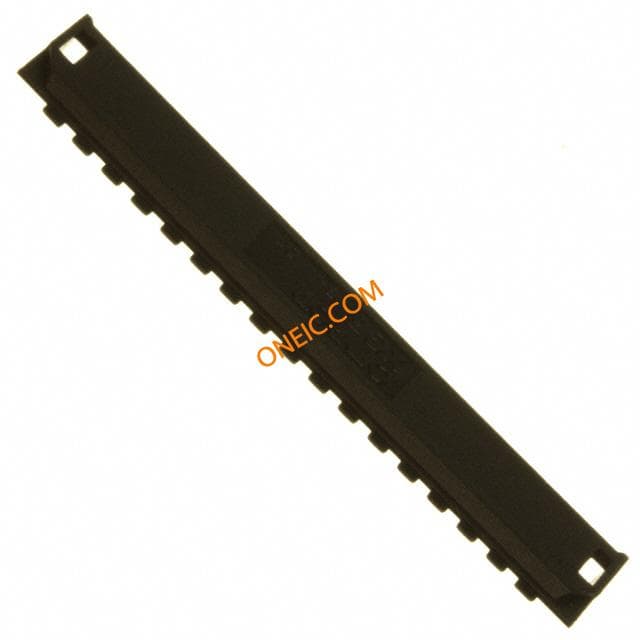

XG5S-1701
