XG4A-3431
| Manufacturer | |
| Description | Conn Ejector Header PL 34 POS 2.54mm Solder ST Thru-Hole CONN PLUG 34POS 3A 300V STRT DIP Headers & Wire Housings Plug Long Lock 34P Straight 1Polarize WIRE-BOARD CONNECTOR PLUG, 34POS, 2.54MM 欧姆龙(OMRON) 其它传感器附件 |
| Category |
Business
| Part # Aliases | 1751054 427452 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 00000000 | ||
Electrical
| Voltage Rating | 300 V | Contact Resistance | 20 |
| Current Rating (Max) | 3 A | Voltage - Input (Min) | 300VAC |
Mechanical
| Color | Black | Depth | 8.5 |
| Pitch | 2.54 mm | Height | 27 |
| Weight | 0 | Packaging | Bulk |
| Row Spacing | 0.100" (2.54mm) | Termination | Solder |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Fastening Type | Latch, Long/Eject Hooks |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 62.5 |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 34 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 34 | Contact Finish Thickness | 5.9µin (0.15µm) |
Product Info
| Type | Ejector Header | Gender | PL |
| Series | XG4 | Product Type | Plugs - PCB |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
XG4M-3430-T
omron electronics
Conn IDC Connector SKT 34 POS 2.54mm IDT RA Cable Mount CONN SOCKET 34POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 34Pin 1Polar
XG5M-3432-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 34P Size1 1PolarizeGuide Conn Housing PL 34 POS 2.54mm Crimp ST CONN DBL ROW SOCKETS 34POS AWG24 欧姆龙(OMRON) 其它传感器附件
XG4M-3430
Omron Electronics
ヘッダ & ワイヤハウジング OpenCoverSocket 34P NoStrainRelief 1Polr CONN SOCKET 34POS FLAT CABLE IDC Headers & Wire Housings OpenCoverSocket 34P NoStrainRelief 1Polr Conn IDC Connector SKT 34 POS 2.54mm IDT RA Cable Mount 欧姆龙(OMRON) 其它传感器附件
XG5M-3435-N
Omron Electronics
ヘッダ & ワイヤハウジング IDC 2Row Socket 34P Size2 1PolarizeGuide CONN IDC SOCKET 34POS AWG28-26 欧姆龙(OMRON) 其它传感器附件

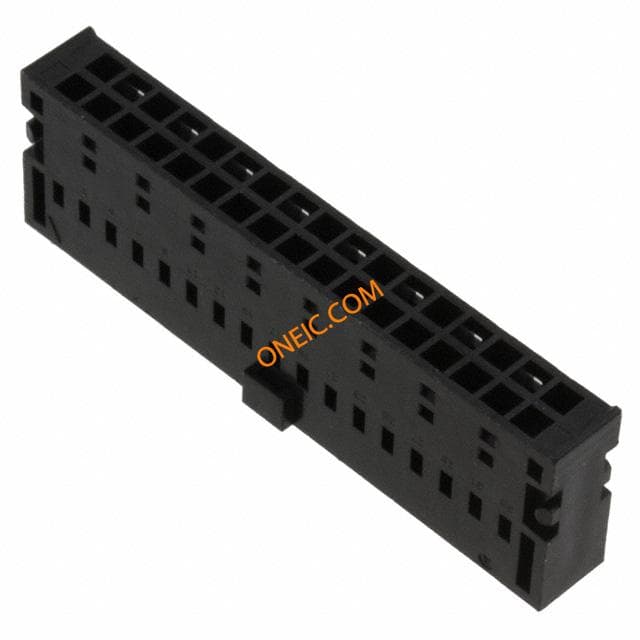

XG5N-341
