点击放大查看
XG4C-3434
| Manufacturer | |
| Description | Headers & Wire Housings MIL BoxType Plug 34P RightAngle 1Polarize Conn Shrouded Header PL 34 POS 2.54mm Solder RA Thru-Hole CONN PLUG 34POS 3A RT ANGL DIP 欧姆龙(OMRON) 其它传感器附件 |
| Category |
Business
| Lead Time | 96 Days | Subcategory | Connector Headers and PCB Receptacles |
| Part # Aliases | 1756250 427500 | Product Category | Headers & Wire Housings |
| Standard Package | 60 | Factory Pack Quantity | 60 |
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Voltage Rating | 300 V | Contact Resistance | 20 |
| Current Rating (Max) | 3 A | Voltage - Input (Min) | 300VAC |
Mechanical
| Color | Black | Depth | 12.2 |
| Pitch | 0.100" (2.54mm) | Height | 8.5 |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Form | Male Pin |
| Contact Type | Male Pin | Lead Spacing | 0.100" (2.54mm) |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold Over Nickel |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate | Length - Overall | 50.5 |
| Termination Style | Through Hole | Number of Contacts | 34 |
| Number of Positions | 34 | Contact Finish Thickness | 5.9µin (0.15µm) |
| Number of Positions/Bay/Row | All | ||
Product Info
| Type | Shrouded Header | Gender | PL |
| Series | XG4 | Product Type | Headers |
| Output Configuration | Through Hole, Right Angle | Number of Positions Loaded | All |
Documents & Media
Similar Parts
XG4M-3430-T
omron electronics
Conn IDC Connector SKT 34 POS 2.54mm IDT RA Cable Mount CONN SOCKET 34POS W/ STRAIN RLF Headers & Wire Housings Socket+StrainRelief Set 34Pin 1Polar
XG5M-3432-N
Omron Electronics
Headers & Wire Housings IDC 2Row Socket 34P Size1 1PolarizeGuide Conn Housing PL 34 POS 2.54mm Crimp ST CONN DBL ROW SOCKETS 34POS AWG24 欧姆龙(OMRON) 其它传感器附件
XG4H-3431-1
Omron Electronics
Board to Board & Mezzanine Connectors BtoB Socket 34Pin Straight 1Polarize Conn Socket Strip SKT 34 POS 2.54mm Solder ST Thru-Hole CONN SOCKET 34POS PRESS FIT PCB
XG4Z-0002
Omron Electronics
Headers & Wire Housings Top Lock Lever XG4C Plug to XG4-5 Socket LEVER LOCK FOR XG4 PLUG Connector Accessories Lock Lever Polyamide Natural 欧姆龙(OMRON) 其它传感器附件
XG4M-3430
Omron Electronics
ヘッダ & ワイヤハウジング OpenCoverSocket 34P NoStrainRelief 1Polr CONN SOCKET 34POS FLAT CABLE IDC Headers & Wire Housings OpenCoverSocket 34P NoStrainRelief 1Polr Conn IDC Connector SKT 34 POS 2.54mm IDT RA Cable Mount 欧姆龙(OMRON) 其它传感器附件
XG5M-3435-N
Omron Electronics
ヘッダ & ワイヤハウジング IDC 2Row Socket 34P Size2 1PolarizeGuide CONN IDC SOCKET 34POS AWG28-26 欧姆龙(OMRON) 其它传感器附件
XG4M-3430-U
Omron Electronics
Headers & Wire Housings Socket+NoLockStrain ReliefSet 34Pin 1Plr Conn IDC Connector SKT 34 POS 2.54mm IDT RA Cable Mount CONN SOCKT 34POS STRN RLF W/LOCK Connector;SMTConnectors&FFC/FPC34PinSocketandStrainReliefw/Lock

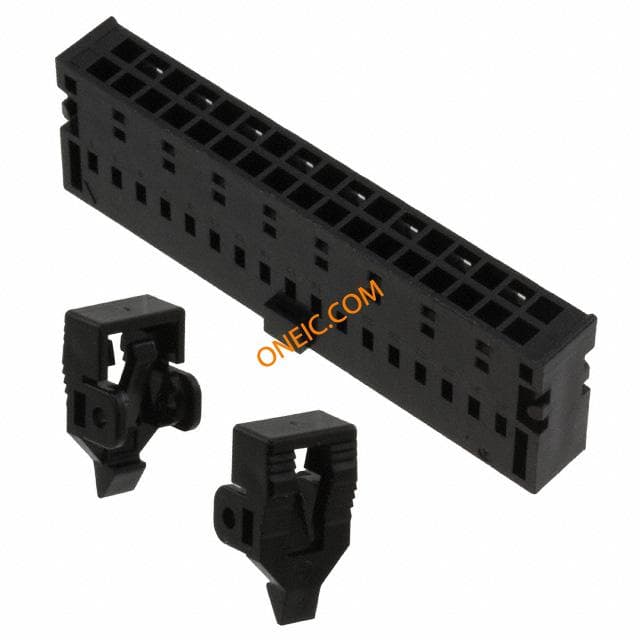

XG5N-341-U
