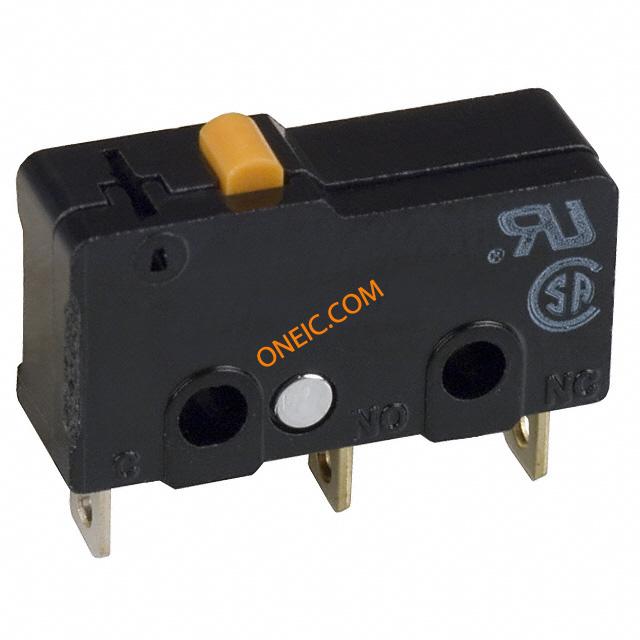

SS-5
| Manufacturer | |
| Description | Switch Snap Action N.O./N.C. SPDT Pin Plunger Solder 5A 125VAC 14VDC 1.47N Screw Mount SW SPDT 5A PIN PLUNGER SLD 125V Switch;Economical;SUBMIN.;Snap Action;SOLD.TERM.;PIN PLUNG.;STD LOAD Actuator Basic / Snap Action Switches Pin plunger 150gf 5A SPDT Solder MICROSWITCH, PLUNGER, 125VAC, 5A, SPDT Switch,Economical,SUBMIN.,SnapAction,SOLD.TERM.,PINPLUNG.,STDLOADActuator 欧姆龙(OMRON) 微动开关 Microswitch; without lever; SPDT; 5A/125VAC; ON-(ON); 1-position Snap Action Switch Actuator Type: Plunger (Round) Mounting Type: Base Mount Switch Function: On-Mom Circuit: 1C SPDT Contact Current: 5 Amps Micro switch 3 AAC / 4 ADC Plunger Snap-action switch 1 change-over (CO), SS-5, Omron Electronic Components |
| Category |
Business
| Lead Time | 20 Days | Subcategory | Switch Snap Action |
| Part # Aliases | 103443 382479 OMRSS5 | Product Category | Basic / Snap Action Switches |
| Standard Package | Bulk | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | ULListed,CSACertified |
| Tariff No | 85365007 | ||
Electrical
| Circuit | SPDT | Operation | SnapAction |
| Voltage Rating | 14 V | Number of Poles | 1 |
| Switch Function | On-Mom | Switching Voltage | ON-(ON) |
| Contact Resistance | 30mΩ | Dielectric Strength | 1500VAC |
| Differential Travel | 0.004" (0.1mm) | Current Rating (Max) | 5@125VAC 14VDC A |
| Current - Max/Contact | :5A | Insulation Resistance | 100MΩ |
| Voltage - Input (Min) | 125 V | Switch Function/Rating | N.O./N.C. |
| Connector - Voltage Input | :Solder | AC contacts rating (at resistance load) | 5 A / 125 VAC |
| Voltage - Rated AC (Phase to Ground/Neutral) | :125V | ||
Mechanical
| Depth | 6.4 | Height | 15.3 |
| Weight | 0.035274 oz | Packaging | Bulk |
| Pretravel | 0.020" (0.5mm) | Lead Style | for soldering |
| Overtravel | 0.020" (0.5mm) | Body Finish | Subminiature |
| Size - Body | 19.8 x 6.4 x 10.2mm | Termination | SolderLugs |
| Contact Form | SPDT | Actuator Type | Round (Pin Plunger) |
| Mounting Type | Screw Mount | Release Force | 25gf |
| Terminal Type | Solder | Operating Force | 1.47 N |
| Contact Material | Silver | Length - Overall | 19.8 |
| Package Quantity | 500 | Pitch - Connector | 7.3mm |
| Termination Style | Solder Lug | Actuator Style/Size | Pin Plunger |
| Number of Positions | 1-position | Mounting Hole Diameter | 2.4mm |
| Switch Actuation Level | SPDT | Contact Layout, Typical | :SPDT |
| Torque - Rated (oz-in / mNm) | 1.47N | ||
Product Info
| Spg | 500 | Type | Standard |
| Series | SS | Switch Type | microswitch |
| Manufacturer | SS-5Series | Electrical Life | 200,000 Cycles |
| Number of Units | 1 | Switch Features | without lever |
| Industry Aliases | SS-5 | Operating Position | 0.330" (8.4mm) |
| Contacts Configuration | SPDT | ||
Environmental
| Seal Rating | IP 67 | Mechanical Life | 30000000 Cycles |
| Ingress Protection | IP40 | Temperature Rating | -25to+85°C |
| Operating Temperature | -25 to 85 °C | ||
