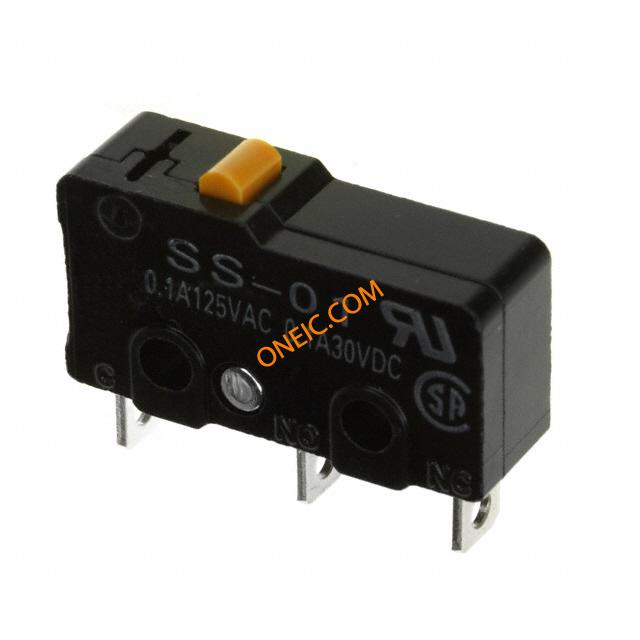

SS-01
| Manufacturer | |
| Description | Basic / Snap Action Switches Pin plunger 150gf 0.1A SPDT Solder Switch Snap Action N.O./N.C. SPDT Pin Plunger Solder 0.1A 125VAC 30VDC 1.47N Screw Mount SW BASIC SPDT .1A 150GF SLD 125V SPDT-NO/NC Pin Plunger Microswitch, 0.1 A @ 125 V ac, 0.1 A @ 30 V dc MICROSWITCH, 0.1A, PIN PLUNGER Switch,Economical,SUBMIN.,SnapAction,SOLD.TERM.,PINPLUNG.,MicroLOADActuator 欧姆龙(OMRON) 微动开关 Microswitch; without lever; SPDT; 0.1A/125VAC; 0.1A/30VDC; IP40 Snap Action Switch Actuator Type: Plunger (Round) Mounting Type: Base Mount Switch Function: On-Mom Circuit: 1C SPDT Contact Current: 0.1 Amps Micro switch 0.1 A Plunger 1 change-over (CO), SS-01, Omron Electronic Components Omron 单刀双掷 - 常开/常闭 引脚柱塞 微动开关, 100 mA @ 30 V 直流 |
| Category |
Business
| Lead Time | 20 Days | Subcategory | Switch Snap Action |
| Part # Aliases | 1387323 382350 OMRSS01 | Product Category | Basic / Snap Action Switches |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | ULListed,CSACertified |
| Tariff No | 85365007 | ||
Electrical
| Circuit | SPDT | Operation | SnapAction |
| Voltage Rating | 125V | Number of Poles | 1 |
| Switch Function | On-Mom | Switching Voltage | ON-(ON) |
| Contact Resistance | 50mΩ | Dielectric Strength | 1500VAC |
| Differential Travel | 0.004" (0.1mm) | Current Rating (Max) | 100mA (AC/DC) |
| Current - Max/Contact | :100mA | Insulation Resistance | 100MΩ |
| Voltage - Input (Min) | 125 | Switch Function/Rating | N.O./N.C. |
| Contact Rating (Current) | 0.1 A @ 125 V ac, 0.1 A @ 30 V dc | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :30V | AC contacts rating (at resistance load) | 0.1 A / 125 VAC |
| DC contacts rating (at resistance load) | 0.1 A / 30 VDC | Voltage - Rated AC (Phase to Ground/Neutral) | :125V |
Mechanical
| Depth | 6.4 | Height | 15.3 |
| Weight | 0.0016 | Packaging | Bulk |
| Pretravel | 0.020" (0.5mm) | Lead Style | for soldering |
| Overtravel | 0.020" (0.5mm) | Body Finish | Subminiature |
| Size - Body | 19.8 x 6.4 x 10.2mm | Termination | SolderLugs |
| Contact Form | SPDT | Actuator Type | Round (Pin Plunger) |
| Mounting Type | Screw Mount | Release Force | 25gf |
| Terminal Type | Solder | Operating Force | 150gf |
| Contact Material | Gold Alloy | Length - Overall | 19.8 |
| Pitch - Connector | 7.3mm | Termination Style | Solder Lug |
| Actuator Style/Size | Pin Plunger | Number of Positions | 1-position |
| Mounting Hole Diameter | 2.4mm | Switch Actuation Level | SPDT |
| Contact Layout, Typical | SPDT-NO/NC | Torque - Rated (oz-in / mNm) | 1.47N |
Product Info
| Type | Miniature | Series | SS |
| CAD Drawing | 3D CAD Model | Switch Type | microswitch |
| Manufacturer | SS-01Series | Electrical Life | 200,000 Cycles |
| Number of Units | 1 | Switch Features | without lever |
| Industry Aliases | SS-01 | Operating Position | 0.330" (8.4mm) |
| Contacts Configuration | SPDT | ||
Environmental
| Seal Rating | IP40 | Mechanical Life | 30,000,000 Cycles |
| Ingress Protection | IP40 | Temperature Rating | -25to+85°C |
| Operating Temperature | -25°C ~ 85°C | ||
