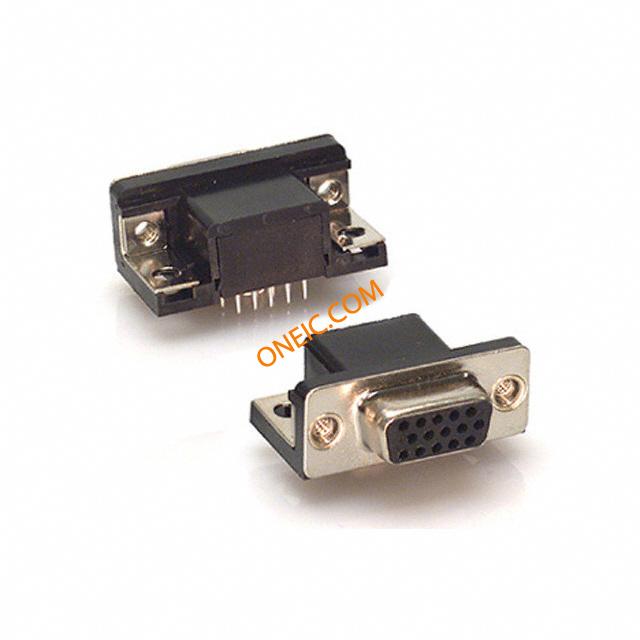

181-015-213R171
| Manufacturer | |
| Description | D-Sub High Density Connectors 15P FEMALE RT ANGLE .350 FOOTPRINT CONN DB15 FEMALE HD DIP SLD R/A |
| Category |
Business
| Product Category | D-Sub High Density Connectors | Standard Package | 90 |
| Factory Pack Quantity | 90 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 2 A | ||
Mechanical
| Color | Black | Packaging | Tray |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Right | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Housing/Shell (4-40) | Mounting Style | Through Hole |
| Number of Rows | 3 | Shell Material | Steel |
| Connector Style | D-Sub, High Density | Housing Material | Polyamide (PA9T), Nylon 9T |
| Termination Style | Solder | Number of Contacts | 15 |
| Number of Positions | 15 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 1 (DE, E) High Density |
Product Info
| Gender | Female | Series | 181 |
| Features | Ground Strap, Shielded | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
