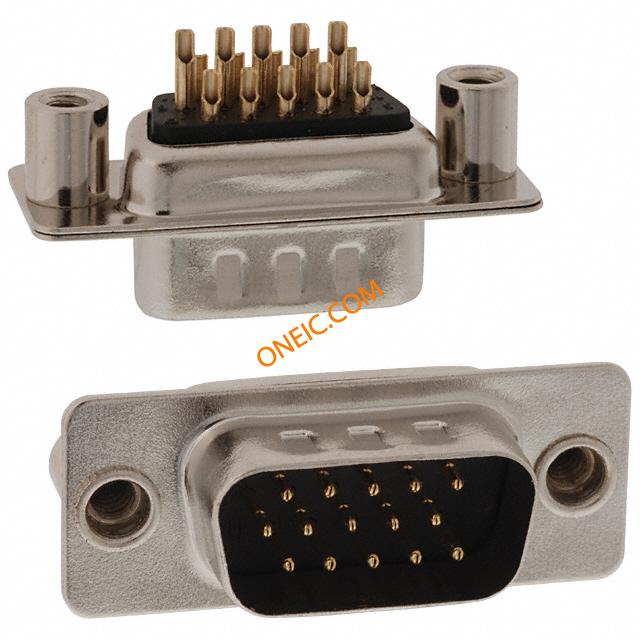

180-015-103L021
| Manufacturer | |
| Description | D-Sub High Density Connectors 15P Male Solder Cup w/ Clinch Nut 2 CONN DB15 MALE HD SLD CUP NICKEL |
| Category |
Business
| Product Category | D-Sub High Density Connectors | Standard Package | 80 |
| Factory Pack Quantity | 80 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 VAC | Current Rating (Max) | 2 A |
Mechanical
| Packaging | Tray | Termination | Solder Cup |
| Contact Type | Signal | Mounting Type | Free Hanging (In-Line); Panel Mount |
| Shell Plating | Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Board Side (4-40) |
| Mounting Style | Wire | Number of Rows | 3 |
| Connector Style | D-Sub, High Density | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Termination Style | Solder | Number of Contacts | 15 |
| Number of Positions | 15 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 1 (DE, E) High Density |
Product Info
| Gender | Male | Series | 180 |
| Features | Grounding Indents, Shielded | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
