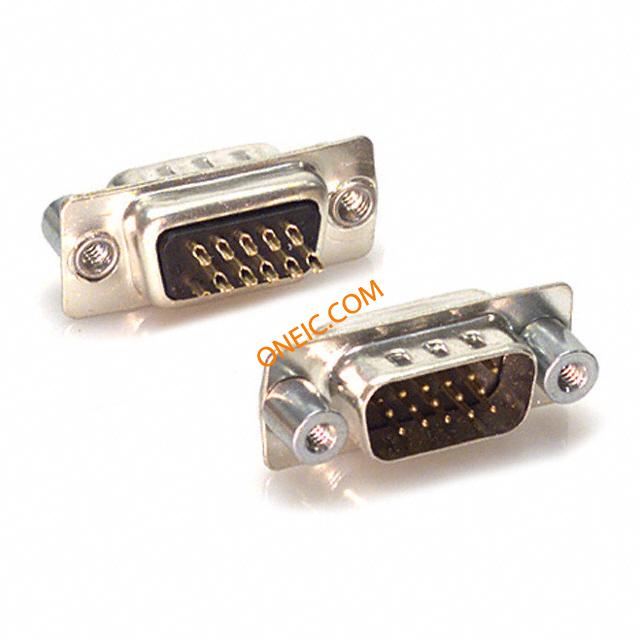

180-015-102L031
| Manufacturer | |
| Description | D-Sub High Density Connectors 15P Male Solder Cup CONN DB15 MALE HD SOLDER CUP TIN |
| Category |
Business
| Product Category | D-Sub High Density Connectors | Standard Package | 80 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Height | 12.6 mm | Packaging | Tray |
| Insulation | Insulated | Termination | Solder Cup |
| Contact Type | Signal | Mounting Type | Straight |
| Shell Plating | Tin | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Mating Side (4-40) |
| Mounting Style | Panel | Number of Rows | 3 |
| Shell Material | Steel | Connector Style | D-Sub, High Density |
| Contact Material | Brass | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Termination Style | Solder | Number of Contacts | 15 |
| Number of Positions | 15 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 1 (DE, E) High Density |
Product Info
| Gender | Male | Features | Grounding Indents, Shielded |
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
