180-044-203L031
| Manufacturer | |
| Description | D-Sub High Density Connectors 44P Fem Solder Cup w/ Clinch Nut 3 CONN DB44 FEML HD SLD CUP NICKEL |
| Category |
Business
| Product Category | D-Sub High Density Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 VAC | Current Rating (Max) | 2 A |
Mechanical
| Packaging | Tray | Termination | Solder Cup |
| Contact Type | Signal | Mounting Type | Free Hanging (In-Line); Panel Mount |
| Shell Plating | Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Mating Side (4-40) |
| Mounting Style | Wire | Number of Rows | 3 |
| Connector Style | D-Sub, High Density | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Termination Style | Solder | Number of Contacts | 44 |
| Number of Positions | 44 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 3 (DB, B) High Density |
Product Info
| Gender | Female | Series | 180 |
| Features | Shielded | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
Documents & Media
Similar Parts
974-025-020R121
NorComp
D-Sub Backshells 25P 40 deg entry metalized plas shell BACKSHELL DB25 METAL PLAST 40DEG
977-025-020R121
NorComp
D-Sub Backshells DB-25 BACKSHELL METALIZIED PLASTIC BACKSHELL DB25 METALIZED PLASTIC
973-025-020R121
NorComp
D-Sub Backshells 25P TOP ENTRY METALIZED PLASTIC BACKSHELL DB25 STR METALIZ PLAST
.jpg&w=3840&q=75)
180-044-113R001
NorComp
D-Sub High Density Connectors 44P MALE VERT DIP SOLDER CONN DB44 MALE HD DIP SLD NICKEL D-SUB, PLUG, SOLDER, STRAIGHT, 44WAY
979-025-020R121
NorComp
D-Sub Backshells 25P Tp entry grommet metalized plas shell BACKSHELL DB25 METALIZED PLASTIC

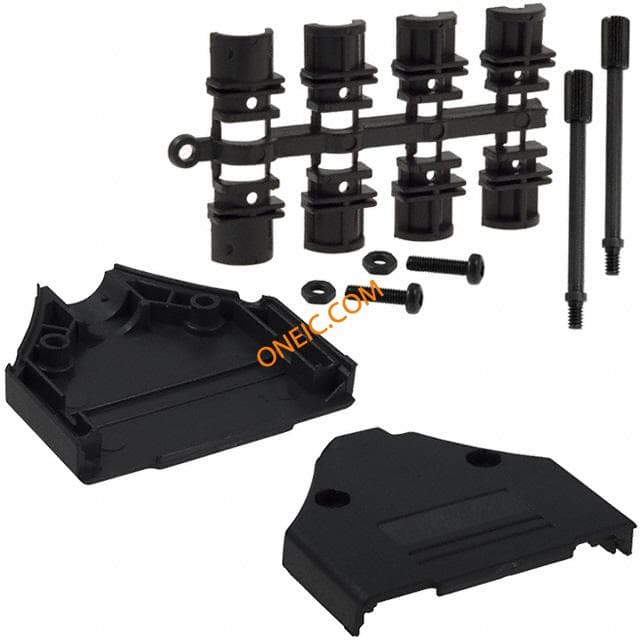

970-025-010R011
NorComp
D-Sub Backshells 25P TOP ENTRY BLACK PLASTIC BACKSHELL DB25 BLACK PLASTIC
982-025-020R121
NorComp
D-Sub Backshells 25P TOP/90 DEG ENTRY METALIZED PLASTIC CONN BACKSHELL DB25 SHL MTL PLST
.jpg&w=3840&q=75)
180-044-103L001
NorComp
D-Sub High Density Connectors 44P MALE SOLDER CUP CONN DB44 MALE HD SLD CUP NICKEL D-SUB, PLUG, SOLDER, STRAIGHT, 44WAY
983-025-020R121
NorComp
D-Sub Backshells 25P STRAIGHT SNAP METALIZED PLASTIC BACKSHELL DB25 METALIZED PLASTIC
180-044-173L000
NorComp
D-Sub High Density Connectors 44P MALE CRIMP POKE NICKEL SHELL CONN DB44 MALE HD CRIMP NICKEL D-SUB SHELL, DB44, CRIMP, PLUG, 44WAY
973-025-010R011
NorComp
D-Sub Backshells 25P TOP ENTRY BLACK PLASTIC BACKSHELL DB25 STR BLK PLASTIC

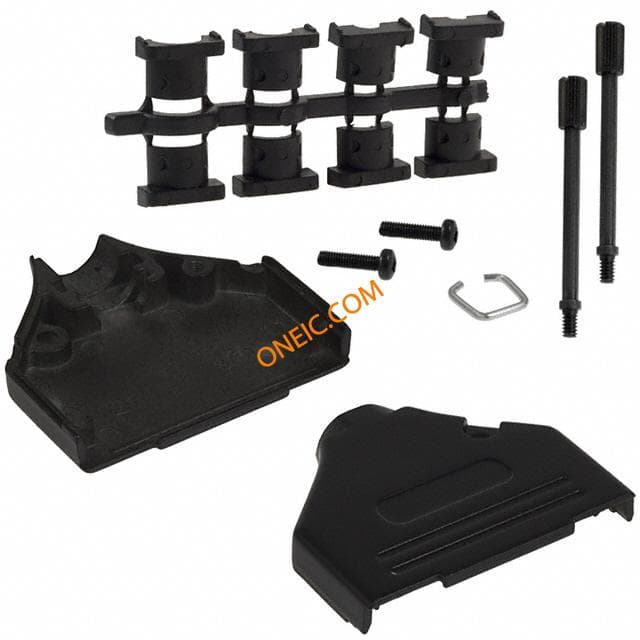

970-025-040R011
