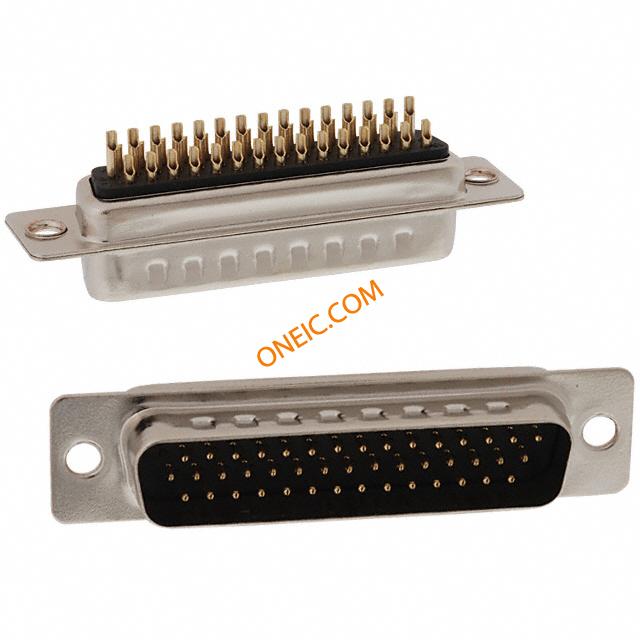

180-044-103L001
| Manufacturer | |
| Description | D-Sub High Density Connectors 44P MALE SOLDER CUP CONN DB44 MALE HD SLD CUP NICKEL D-SUB, PLUG, SOLDER, STRAIGHT, 44WAY |
| Category |
Business
| Product Category | D-Sub High Density Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :NORCOMP - 180 Series | Current Rating (Max) | 2 A |
Mechanical
| Weight | 0.0094 | Packaging | Tray |
| Shell Size | :DB | Termination | Solder Cup |
| Contact Type | Signal | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Wire | Number of Rows | 3 |
| Connector Style | D-Sub, High Density | Material - Body | :Steel |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Termination Style | Solder |
| Number of Contacts | 44 | Contact Termination | :Solder |
| Number of Positions | 44 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 3 (DB, B) High Density |
Product Info
| Gender | Male | Series | :180 |
| Features | Grounding Indents, Shielded | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
Documents & Media
Similar Parts
.jpg&w=3840&q=75)
180-044-203L001
NorComp
D-Sub High Density Connectors 44P FEMALE SOLDER CUP CONN DB44 FEML HD SLD CUP NICKEL D-SUB, RECEPTACLE, SOLDER, STR, 44WAY
.jpg&w=3840&q=75)
180-044-213R011
NorComp
D-Sub High Density Connectors 44P Fem Vt Dip Sol w/ Clinch Nut 1 CONN DB44 FEML HD DIP SLD NICKEL
180-044-273L000
NorComp
D-Sub High Density Connectors 44P FEM CRIMP POKE NICKEL SHELL CONN DB44 FEMALE HD CRIMP NICKEL D-SUB SHELL, DB44, CRIMP, RECPT, 44WAY
180-044-213R021
NorComp
D-Sub High Density Connectors 44P Fem Vt Dip Sol w/ Clinch Nut 2 CONN DB44 FEML HD DIP SLD NICKEL
180-044-203L021
NorComp
D-Sub High Density Connectors 44P Fem Solder Cup w/ Clinch Nut 2 CONN DB44 FEML HD SLD CUP NICKEL
181-044-213R171
NorComp
D-Sub High Density Connectors 44P FEMALE RT ANGLE .350 FOOTPRINT CONN DB44 FEMALE HD DIP SLD R/A
180-044-213R001
NorComp
D-Sub High Density Connectors 44P FEMALE VERT DIP SOLDER CONN DB44 FEML HD DIP SLD NICKEL D-SUB, RECEPTACLE, SOLDER, STR, 44WAY
180-044-213R031
NorComp
D-Sub High Density Connectors 44P Fem Vt Dip Sol w/ Clinch Nut 3 CONN DB44 FEML HD DIP SLD NICKEL
180-044-273L010
NorComp
D-Sub High Density Connectors 44P Female Crimp w/ Clinch Nut 1 CONN DB44 FEMALE HD CRIMP NICKEL
180-044-273L020
NorComp
D-Sub High Density Connectors 44P Female Crimp w/ Clinch Nut 2 CONN DB44 FEMALE HD CRIMP NICKEL
180-044-273L030
NorComp
D-Sub High Density Connectors 44P Female Crimp w/ Clinch Nut 3 CONN DB44 FEMALE HD CRIMP NICKEL
180-044-203L031
NorComp
D-Sub High Density Connectors 44P Fem Solder Cup w/ Clinch Nut 3 CONN DB44 FEML HD SLD CUP NICKEL
180-044-203L011
NorComp
D-Sub High Density Connectors 44P Fem Solder Cup w/ Clinch Nut 1 CONN DB44 FEML HD SLD CUP NICKEL
180-044-202L021
NorComp
D-Sub High Density Connectors 44P Female CONN DB44 FEMALE HD SLD CUP TIN
180-044-202L031
NorComp
D-Sub High Density Connectors 44P Female CONN DB44 FEMALE HD SLD CUP TIN
180-044-202L011
NorComp
D-Sub High Density Connectors 44P Female CONN DB44 FEMALE HD SLD CUP TIN
181-044-213R531
Norcomp Inc.
CONN DB44 FEMALE HI DENSITY R/A D-Sub High Density Connectors RA 44POS FEM SPCC

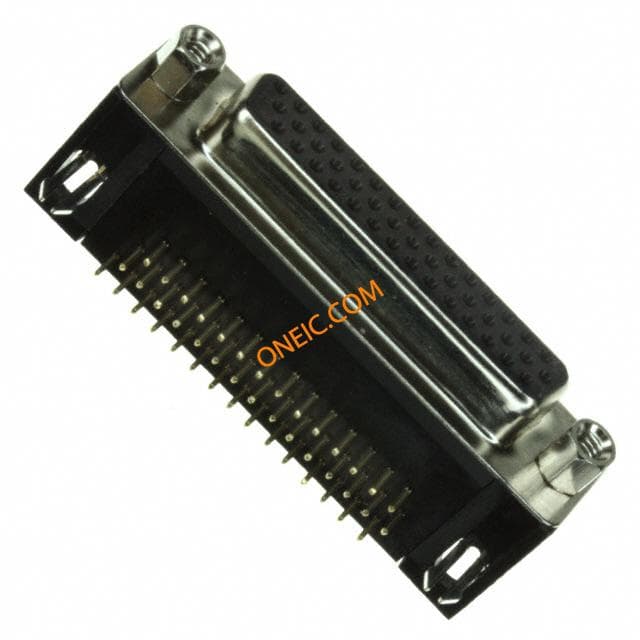

181-044-213R561
