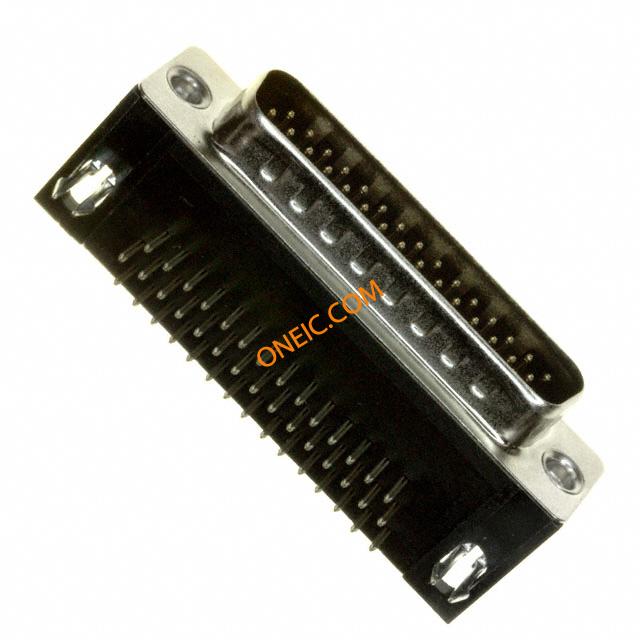

181-044-113R531
| Manufacturer | |
| Description | D-Sub High Density Connectors 44P M R/A DSUB CON 4-40 INSERTS/BRD LCK CONN DB44 MALE HI DENSITY R/A |
| Category |
Business
| Standard Package | 50 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 2A | ||
Mechanical
| Color | Black | Packaging | Tray |
| Termination | Solder | Contact Type | Signal |
| Mounting Type | Through Hole, Right Angle | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (4-40) |
| Number of Rows | 3 | Connector Style | D-Sub, High Density |
| Housing Material | Polyamide (PA9T), Nylon 9T | Number of Positions | 44 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 3 (DB, B) High Density | ||
Product Info
| Features | Board Lock, Grounding Indents, Shielded | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
Documents & Media
