点击放大查看

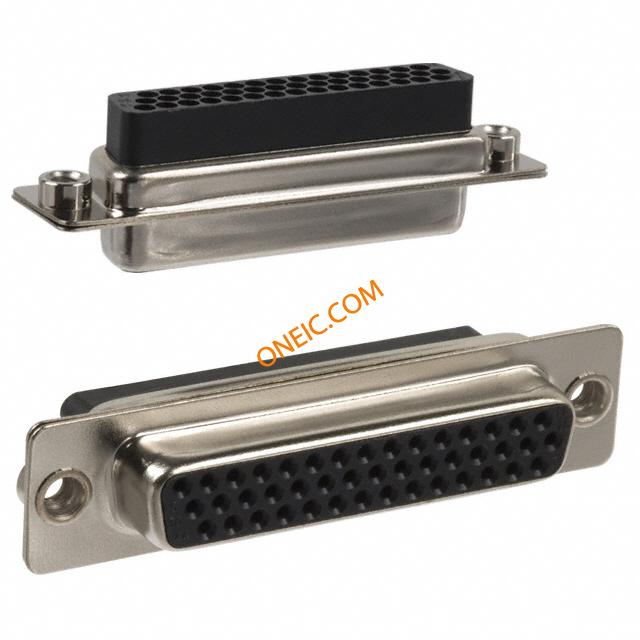

180-044-273L010
| Manufacturer | |
| Description | D-Sub High Density Connectors 44P Female Crimp w/ Clinch Nut 1 CONN DB44 FEMALE HD CRIMP NICKEL |
| Category |
Business
| Product Category | D-Sub High Density Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 VAC | Current Rating (Max) | 2 A |
Mechanical
| Packaging | Tray | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Connector Type | Receptacle for Female Contacts | Flange Feature | Board Side (4-40) |
| Mounting Style | Wire | Number of Rows | 3 |
| Connector Style | D-Sub, High Density | Termination Style | Crimp |
| Number of Contacts | 44 | Number of Positions | 44 |
| Shell Material, Finish | Steel, Nickel Plated | Shell Size, Connector Layout | 3 (DB, B) High Density |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | 180 | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
Documents & Media
