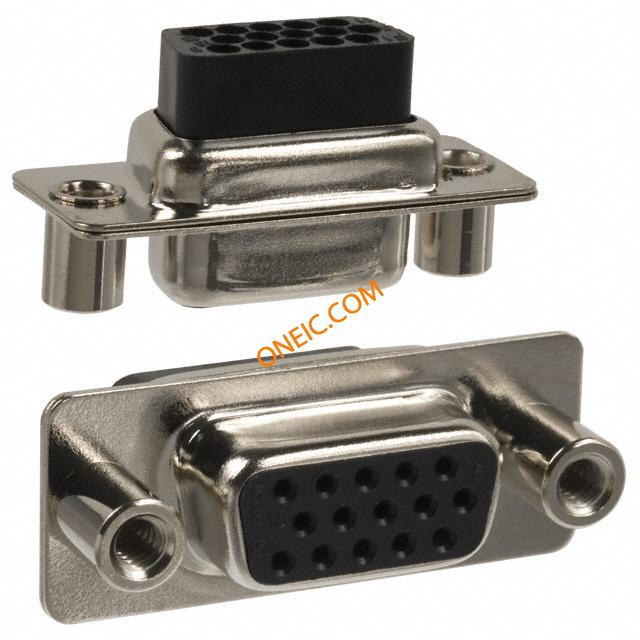

180-015-273L030
| Manufacturer | |
| Description | D-Sub High Density Connectors 15P Female Crimp w/ Clinch Nut 3 CONN DB15 FEMALE HD CRIMP NICKEL |
| Category |
Business
| Product Category | D-Sub High Density Connectors | Standard Package | 80 |
| Factory Pack Quantity | 80 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 VAC | Current Rating (Max) | 2 A |
Mechanical
| Packaging | Tray | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Connector Type | Receptacle for Female Contacts | Flange Feature | Mating Side (4-40) |
| Mounting Style | Wire | Number of Rows | 3 |
| Connector Style | D-Sub, High Density | Termination Style | Crimp |
| Number of Contacts | 15 | Number of Positions | 15 |
| Shell Material, Finish | Steel, Nickel Plated | Shell Size, Connector Layout | 1 (DE, E) High Density |
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | 180 | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
Documents & Media
Similar Parts
180-015-172L000
NorComp
D-Sub High Density Connectors 15P Male CONN DB15 MALE HD CRIMP TIN
994-009-030R121
NorComp
D-Sub Backshells 9P Top Entry Pnl Mt Die Cast Backshell BACKSHELL DB9 STRAIGHT DIE CAST HOOD, DSUB, SLIDELOCK, 9WAY
981-009-130R121
NorComp
D-Sub Backshells 9P 90D w/ Thmbscrew Die Cast w/ Grommet BACKSHELL 9POS R/A DIE CAST HOOD, DSUB, 90DEG, 4-40 SCREW, 9WAY
972-009-01SR081
NorComp
D-Sub Backshells 9P CLAMSHELL YELLOW SLIM LINE PLASTIC BACKSHELL DB9 CLAM SLIM YELLOW
978-009-010R031
NorComp
D-Sub Backshells 9P TOP ENTRY GREY PLASTIC BACKSHELL DB9 GREY PLASTIC
.jpg&w=3840&q=75)
180-015-113R001
NorComp
D-Sub High Density Connectors 15P MALE VERT DIP SOLDER CONN DB15 MALE HD DIP SLD NICKEL D-SUB, PLUG, SOLDER, STRAIGHT, 15WAY
180-015-173L000
NorComp
D-Sub High Density Connectors 15P MALE CRIMP POKE NICKEL SHELL CONN DB15 MALE HD CRIMP NICKEL D-SUB SHELL, DB15, CRIMP, PLUG, 15WAY
970-009-020R121
NorComp
D-Sub Backshells 9P TOP ENTRY PLASTIC BACKSHELL DB9 METALIZED PLASTIC
180-102-170L001
NorComp
D-Sub Contacts FEMALE 24-26 AWG GOLD FLASH CONTACT CRIMP FOR HD CONN FEMALE CONTACT, CRIMP, RECEPTACLE, 26-24AWG
972-009-01SR031
NorComp
D-Sub Backshells 9P CLAMSHELL GREY SLIM LINE PLASTIC BACKSHELL DB9 CLAM SLIM GREY
971-009-020R121
NorComp
D-Sub Backshells 9P 45 DEGREE METALIZED PLASTIC BACKSHELL DB9 MET PLASTIC 45DEG
180-002-170L001
NorComp
D-Sub Contacts Female Contact 24-26AWG Gold Flash CONN CONTACT FEMALE 24-26AWG HD
.jpg&w=3840&q=75)
180-015-103L001
NorComp
D-Sub High Density Connectors 15P MALE SOLDER CUP CONN DB15 MALE HD SLD CUP NICKEL D-SUB, PLUG, SOLDER, STRAIGHT, 15WAY
983-009-020R121
NorComp
D-Sub Backshells 9P STRAIGHT SNAP METALIZED PLASTIC BACKSHELL DB9 METALIZED PLASTIC
973-009-020R121
NorComp
D-Sub Backshells 9P TOP ENTRY METALIZED PLASTIC BACKSHELL DB9 STR METALIZ PLAST
971-009-030R121
NorComp
D-Sub Backshells 9P 45 DEGREE DIECAST NICKEL PLATED BACKSHELL DB9 DIE CAST NKL 45DEG HOOD, DSUB, 45DEG, 4-40 SCREW, 9WAY
975-009-010R011
NorComp
D-Sub Backshells 9P 3-way entry plastic shell black BACKSHELL DB9 BLK PLASTIC 3WAY
180-015-172-000
Norcomp Inc.
CONN DB15 MALE HD CRIMP TIN
180-015-171L000
Norcomp Inc.
CONN DB15 MALE HD CRIMP Y-CHROM

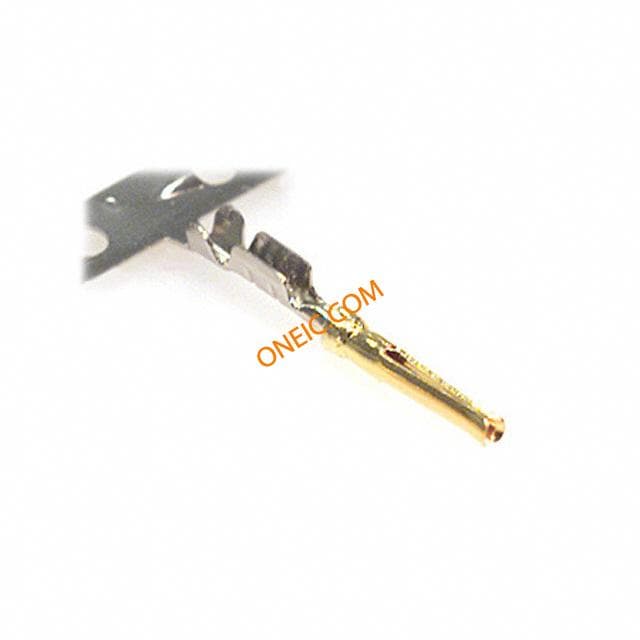

180-002-170-001
