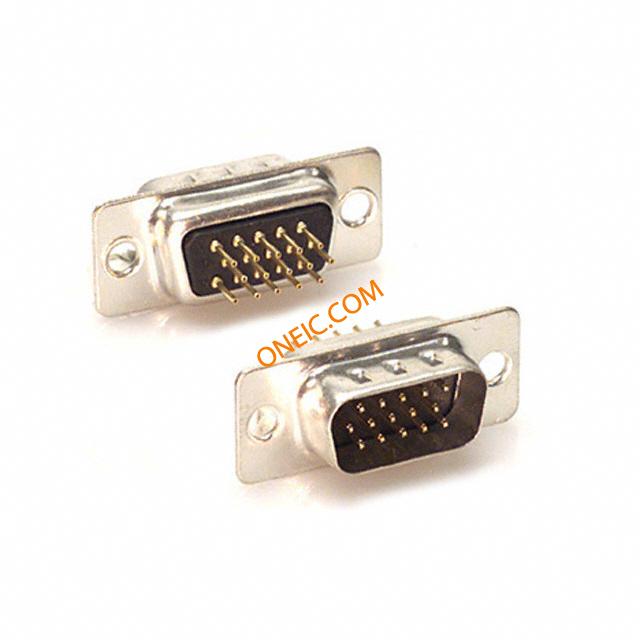

180-015-113R001
| Manufacturer | |
| Description | D-Sub High Density Connectors 15P MALE VERT DIP SOLDER CONN DB15 MALE HD DIP SLD NICKEL D-SUB, PLUG, SOLDER, STRAIGHT, 15WAY |
| Category |
Business
| Product Category | D-Sub High Density Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :NORCOMP - 180 Series | Current Rating (Max) | 2 A |
Mechanical
| Weight | 0.0045 | Packaging | Tray |
| Shell Size | :DE | Termination | Solder |
| Contact Type | Signal | Mounting Type | Through Hole |
| Shell Plating | Bright Tin | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Wire | Number of Rows | 3 |
| Connector Style | D-Sub, High Density | Material - Body | :Steel |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Termination Style | Solder |
| Number of Contacts | 15 | Contact Termination | :Solder |
| Number of Positions | 15 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 1 (DE, E) High Density |
Product Info
| Gender | Male | Series | :180 |
| Features | Grounding Indents, Shielded | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
