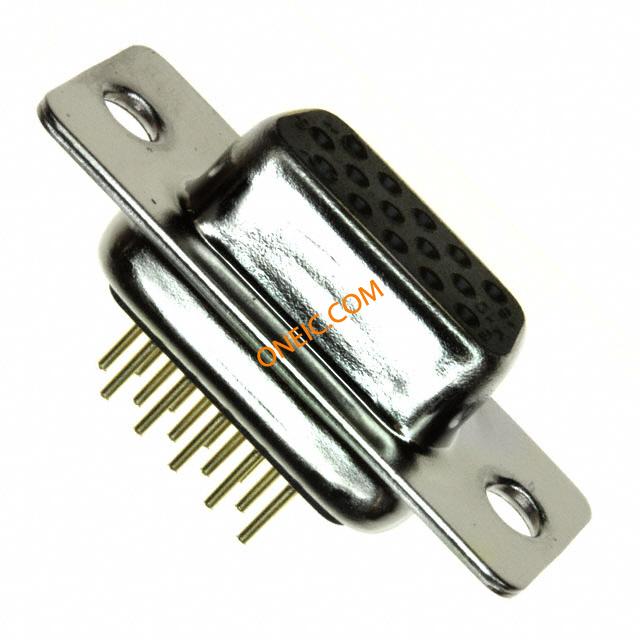

195-015-213L001
| Manufacturer | |
| Description | CONN DB15 FEM VERT STAMP LP HD D-Sub High Density Connectors VERT 15POS FEM Steel |
| Category |
Business
| Product Category | D-Sub High Density Connectors | Standard Package | 90 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 2A |
Mechanical
| Color | Black | Packaging | Tray |
| Insulation | Insulated | Termination | Solder |
| Contact Type | Signal | Mounting Type | Through Hole |
| Shell Plating | Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Number of Rows | 3 | Shell Material | Steel |
| Connector Style | D-Sub, High Density | Contact Material | Phosphor Bronze |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Through Hole |
| Number of Contacts | 15 | Insulation Material | Thermoplastic Polyester |
| Number of Positions | 15 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 1 (DE, E) High Density |
Product Info
| Gender | Female | Series | 195 |
| Features | Shielded | ||
Environmental
| Temperature Range | - 55 C to + 125 C | Operating Temperature | -55°C ~ 125°C |
