172-E15-203R911
| Manufacturer | |
| Description | D-Sub Standard Connectors 15 POS. SO./CUP FEM. .225 SP/BL B/S CONN DB15 FEMALE SLD CUP NICKEL |
| Category |
Business
| Tradename | M-SERIES | Product Category | D-Sub Standard Connectors |
| Standard Package | 60 | Factory Pack Quantity | 60 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | White | Packaging | Tray |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line); Panel Mount | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Flange Feature | Mating Side; Female Screwlock (4-40) | Mounting Style | Wire |
| Number of Rows | 2 | Connector Style | D-Sub |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Solder |
| Number of Contacts | 15 | Number of Positions | 15 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 2 (DA, A) | ||
Product Info
| Gender | Female | Features | Board Lock |
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
Documents & Media
Similar Parts
160-000-215R000
NorComp
D-Sub Tools & Hardware 15P FEMALE DUST COVR CLEAR PE MATERIAL DUST COVER FOR FEMALE DSUB 15POS
172-E15-103R001
NorComp
D-Sub Standard Connectors 15P MALE SOLDER CUP CONN DB15 MALE SOLDER CUP NKL DSUB, PLUG, SOLDER CUP, 15WAY

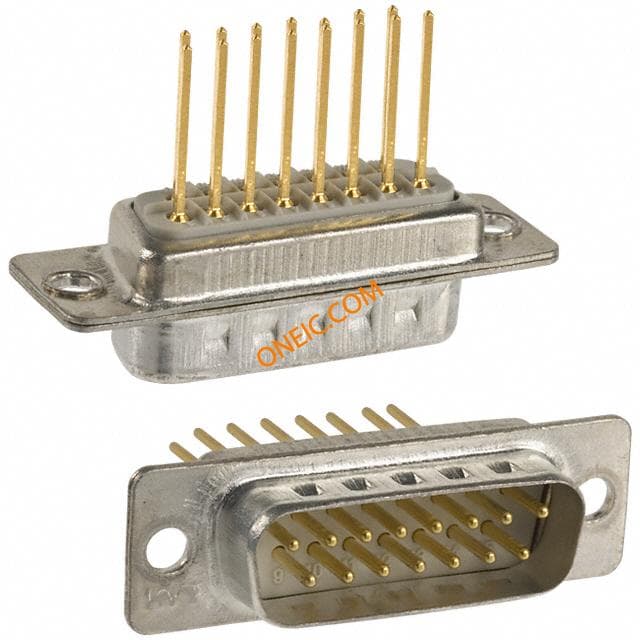

172-015-142R001
NorComp
D-Sub Standard Connectors 15P MALE WIRE-WIRE CONN DB15 MALE WIRE WRAP TIN

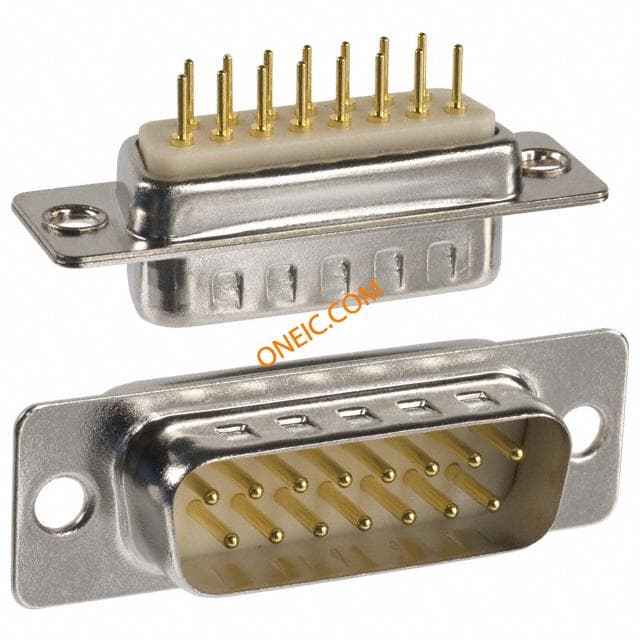

172-E15-113R001
NorComp
D-Sub Standard Connectors 15P MALE DIP SOLDER CONN DB15 MALE SOLDER DIP NKL DSUB, PLUG, THT, 15WAY
172-015-102R001
NorComp
D-Sub Standard Connectors 15 POS. MALE D-SUB SOLDER CUP YEL/CHRM CONN DB15 MALE SOLDER CUP TIN

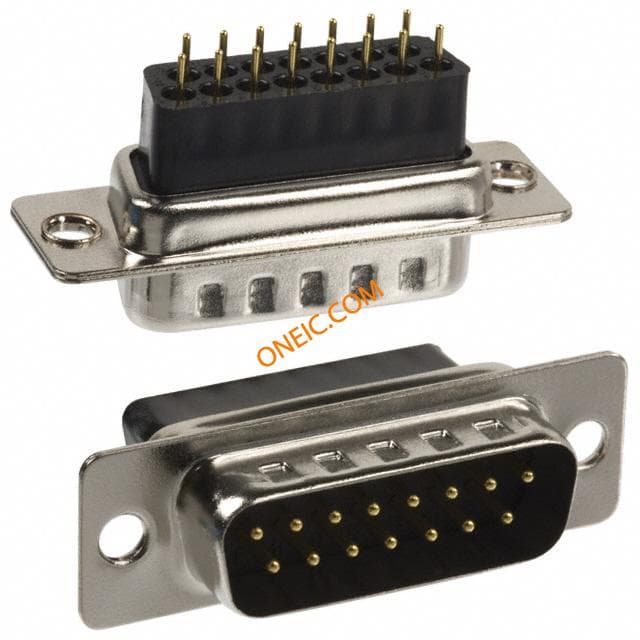

172-015-183L001
NorComp
D-Sub Standard Connectors 15P Male CONN DB15 MALE HIGH PROFILE NKL
172-E15-102R001
NorComp
D-Sub Standard Connectors 15P Male CONN DB15 MALE SOLDER CUP TIN

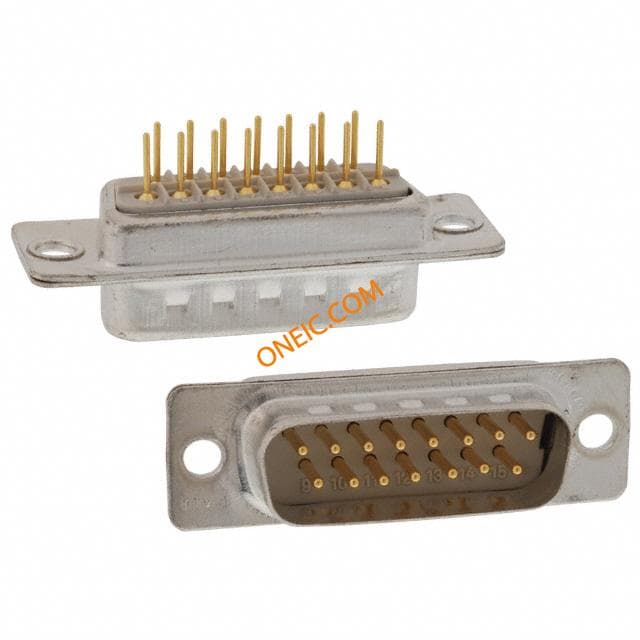

172-015-112R001
Norcomp Inc.
CONN DB15 MALE DIP SOLDER TIN D-Sub Standard Connectors 15POS Male 5A Steel

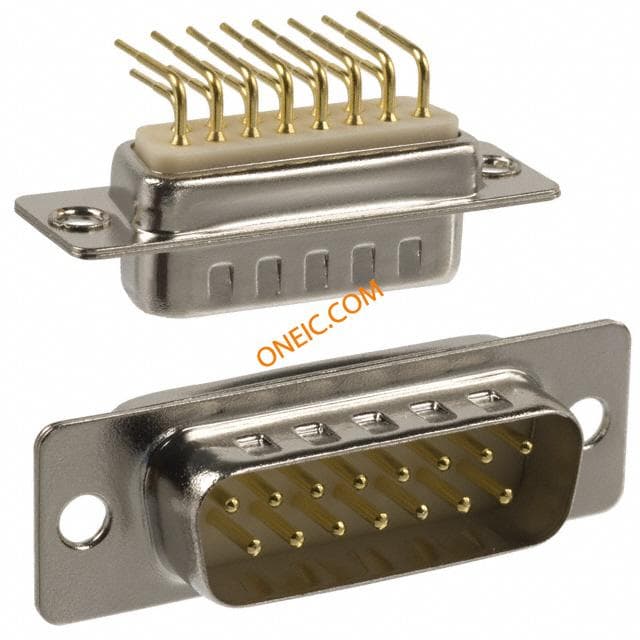

174-E15-113R001
Norcomp Inc.
CONN DB15 MALE .370" R/A NICKEL D-Sub Standard Connectors 15POS Male 5A Steel
172-015-181L001
Norcomp Inc.
CONN DB15 MALE HI PRO YLW CHROME

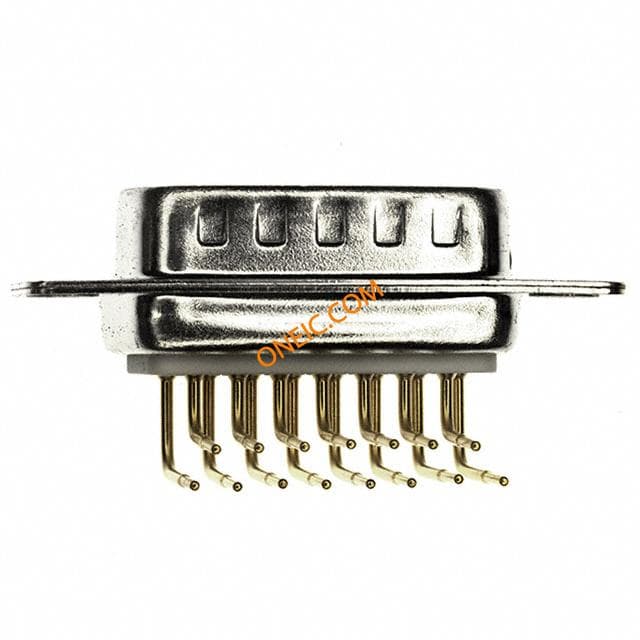

174-E15-112-001
Norcomp Inc.
CONN DB15 MALE .370" R/A TIN

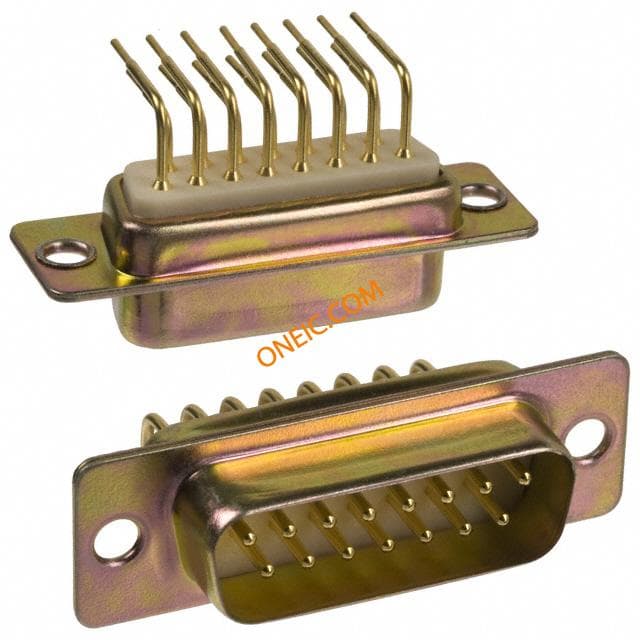

174-E15-111-001
Norcomp Inc.
CONN DB15 MALE .370" R/A CHROME

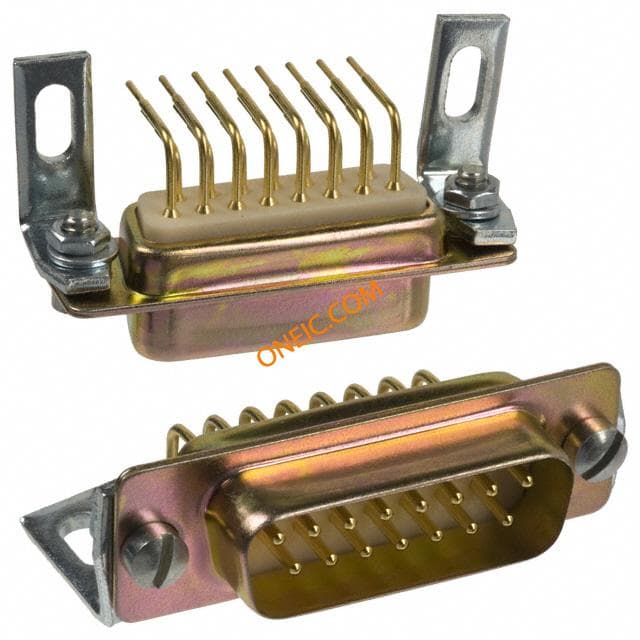

173-E15-111R241
