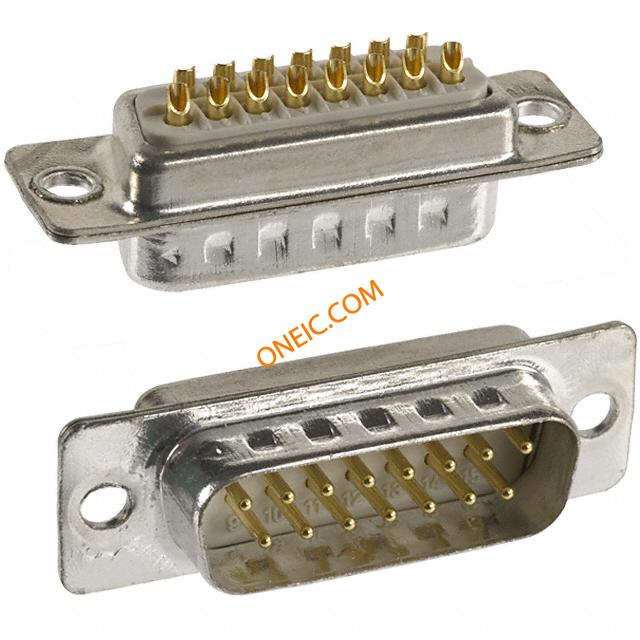

172-015-102R001
| Manufacturer | |
| Description | D-Sub Standard Connectors 15 POS. MALE D-SUB SOLDER CUP YEL/CHRM CONN DB15 MALE SOLDER CUP TIN |
| Category |
Business
| Tradename | M-SERIES | Product Category | D-Sub Standard Connectors |
| Standard Package | 40 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | Beige | Packaging | Tray |
| Insulation | Insulated | Termination | Solder Cup |
| Contact Type | Signal | Mounting Type | Straight |
| Shell Plating | Tin | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Contact Material | Brass | Housing Material | Polybutylene Terephthalate (PBT), Polyester |
| Termination Style | Solder | Number of Contacts | 15 |
| Number of Positions | 15 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 2 (DA, A) |
Product Info
| Gender | Male | Features | Grounding Indents |
Environmental
| Operating Temperature | - 50 C to + 100 C | ||
Documents & Media
Similar Parts

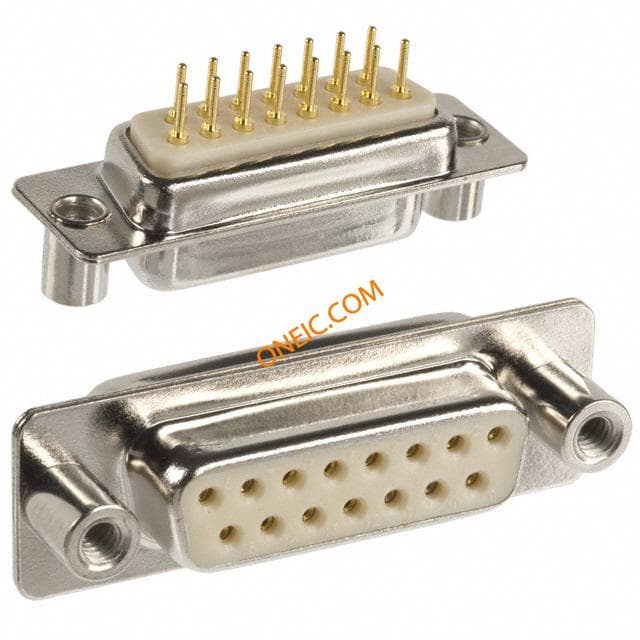

172-E15-213R031
NorComp
D-Sub Standard Connectors 15P FEMALE DIP SODR .250 NUTS M/S CONN DB15 FEMALE SLD DIP NKL

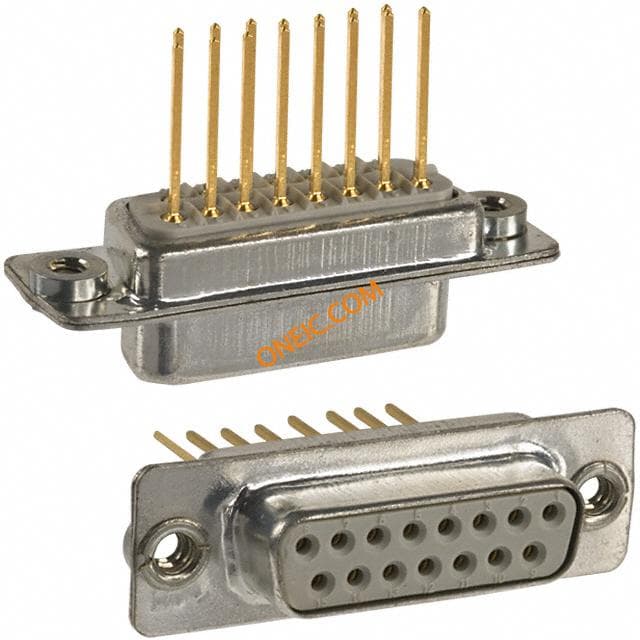

172-015-242R011
NorComp
D-Sub Standard Connectors 15P FEMALE WIRE-WIRE .098 NUTS B/S CONN DB15 FEMALE WIRE WRAP TIN

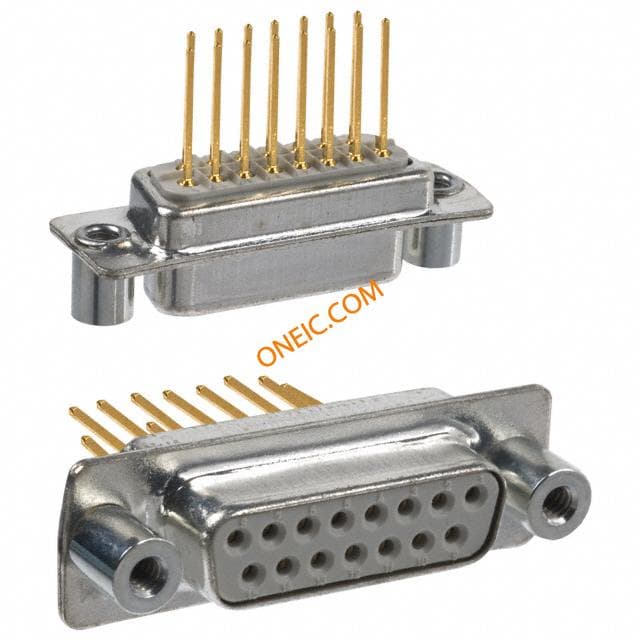

172-015-242R031
NorComp
D-Sub Standard Connectors 15P FEMALE WIRE-WIRE .250 NUTS M/S CONN DB15 FEMALE WIRE WRAP TIN

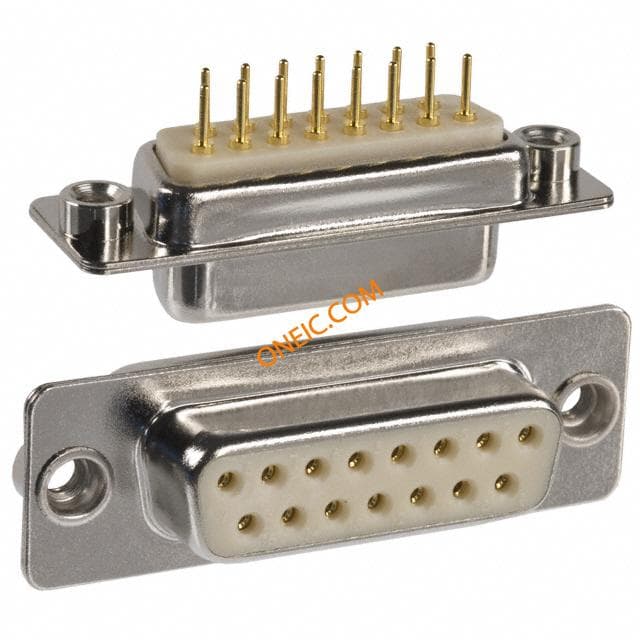

172-E15-213R011
NorComp
D-Sub Standard Connectors 15P FEMALE DIP SODR .098 NUTS B/S CONN DB15 FEMALE SLD DIP NKL

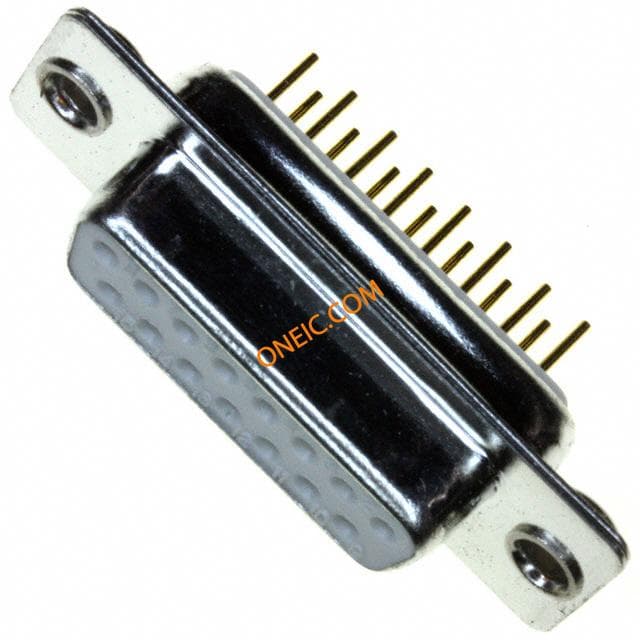

172-E15-212-011
NorComp
D-Sub Standard Connectors 15 POS. DIP/SO. FEM. .098 NUTS B/S CONN DB15 FEMALE SLD DIP TIN

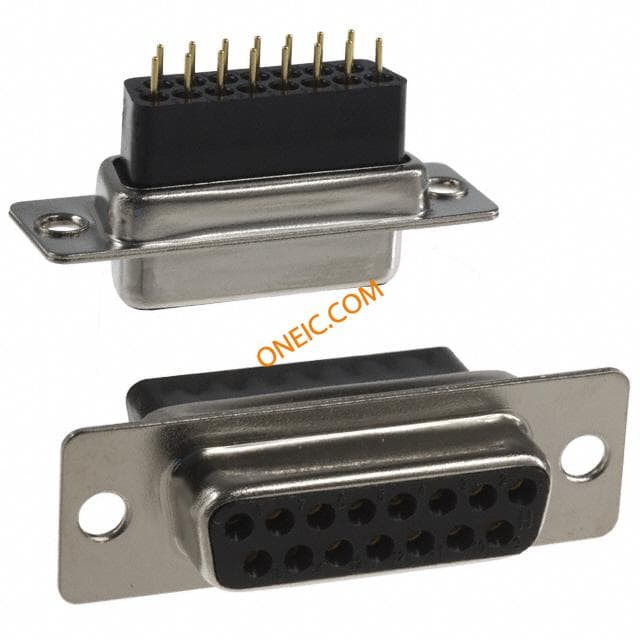

172-015-283L001
NorComp
D-Sub Standard Connectors 15P Female CONN DB15 FEMALE HI PROFILE NKL
172-E15-203R911
NorComp
D-Sub Standard Connectors 15 POS. SO./CUP FEM. .225 SP/BL B/S CONN DB15 FEMALE SLD CUP NICKEL

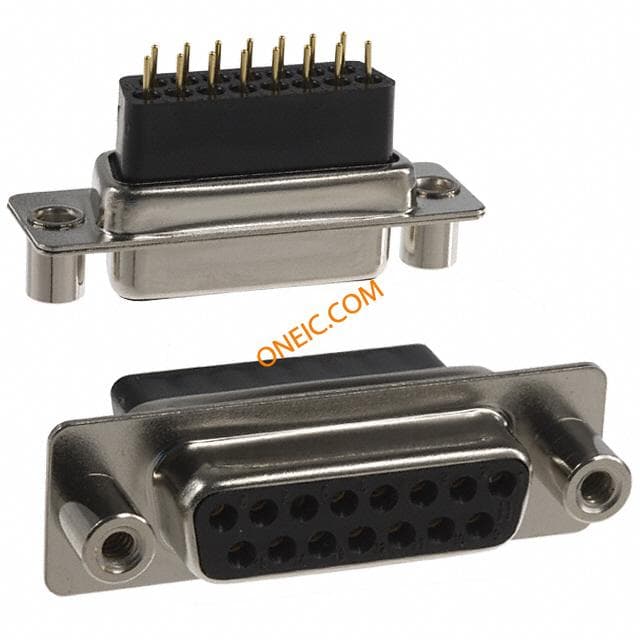

172-015-283L031
NorComp
D-Sub Standard Connectors 15P Female CONN DB15 FEMALE HI PROFILE NKL

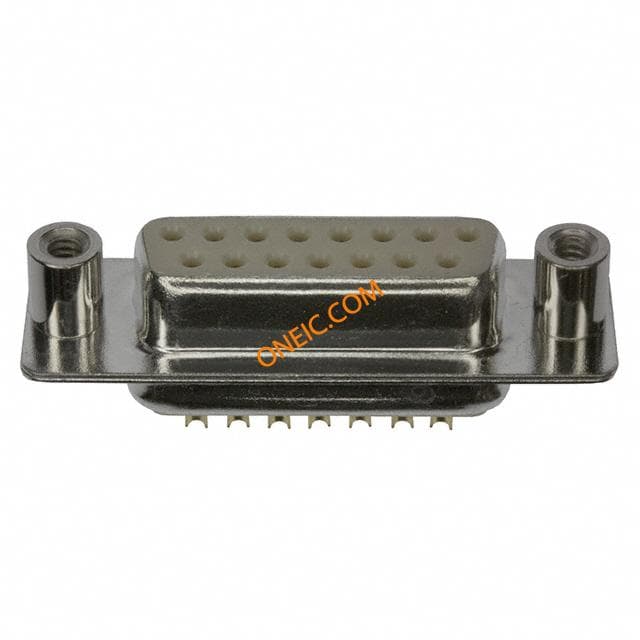

172-E15-202R031
NorComp
D-Sub Standard Connectors 15P Female CONN DB15 FEMALE SLD CUP TIN

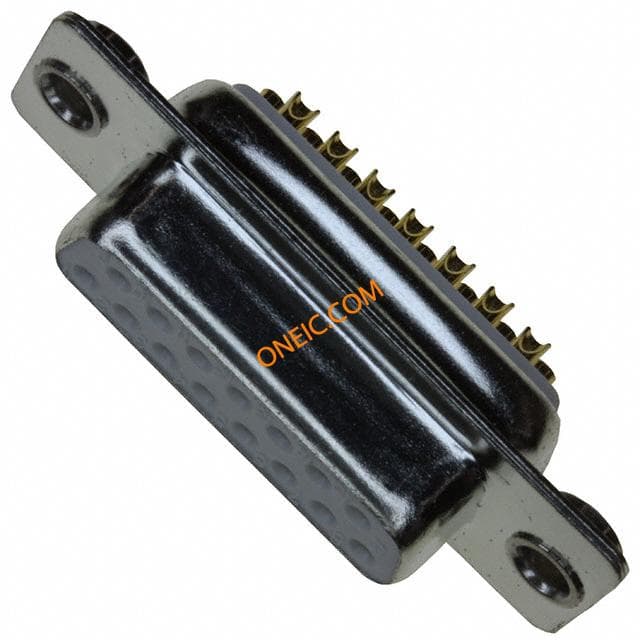

172-E15-202-011
Norcomp Inc.
CONN DB15 FEMALE SLD CUP TIN

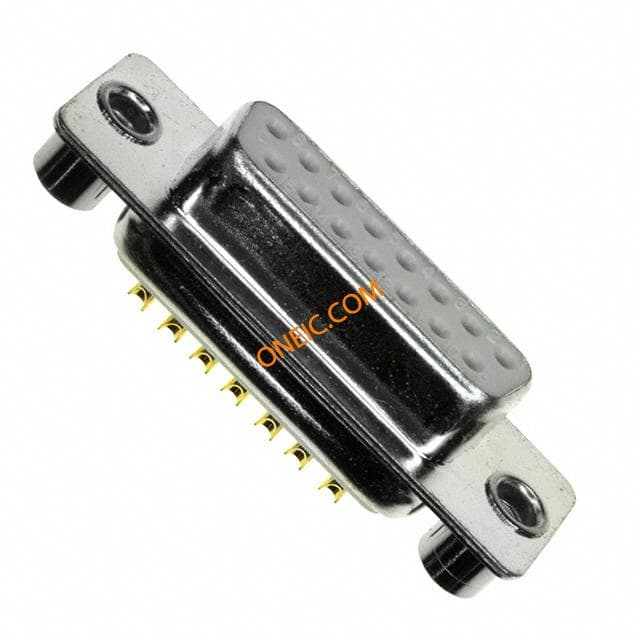

172-E15-202-021
Norcomp Inc.
CONN DB15 FEMALE SLD CUP TIN

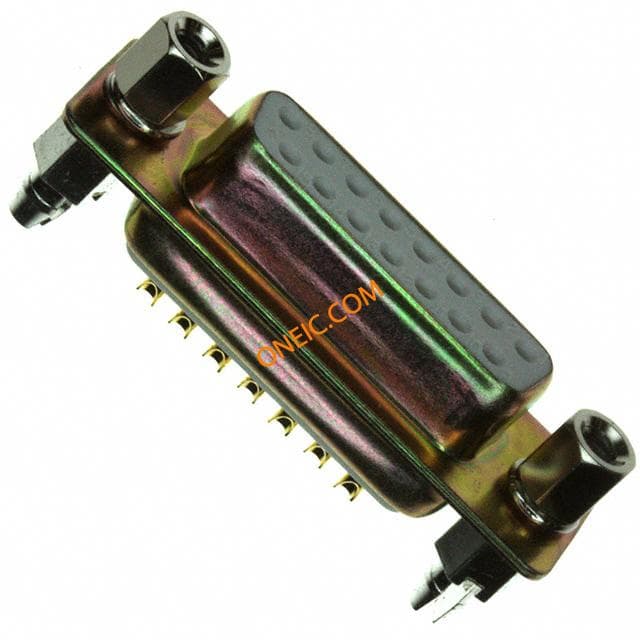

172-E15-201-911
Norcomp Inc.
CONN DB15 FEMALE SLD CUP CHROME
172-E15-211R031
Norcomp Inc.
CONN DB15 FEMALE SLD DIP CHROME
174-E15-211R141
Norcomp Inc.
CONN DB15 FMALE .370" R/A CHROME
174-E15-213R001
Norcomp Inc.
CONN DB15 FMALE .370" R/A NICKEL D-Sub Standard Connectors 15POS FEM 5A Steel
172-015-212R911
Norcomp Inc.
CONN DB15 FMALE VERT BRDLOCK SLD D-Sub Standard Connectors 15POS FEM 5A Steel
173-E15-213R141
Norcomp Inc.
CONN DB15 FMALE .283" R/A NKL D-Sub Standard Connectors 15POS FEM 5A Steel

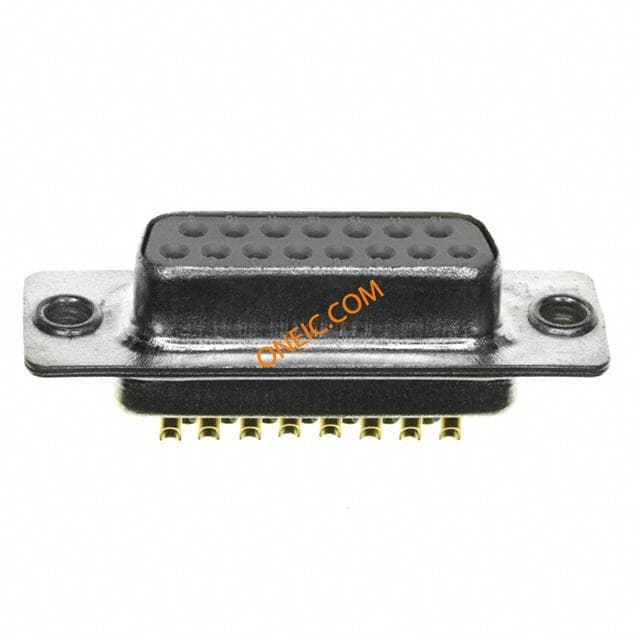

172-015-202R011
Norcomp Inc.
CONN DB15 FEMALE SOLDER CUP TIN D-Sub Standard Connectors 15POS FEM 5A Steel

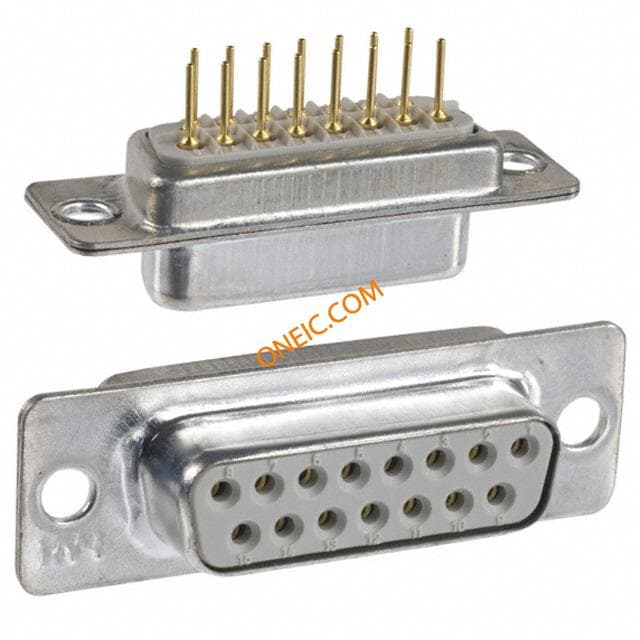

172-015-212R001
