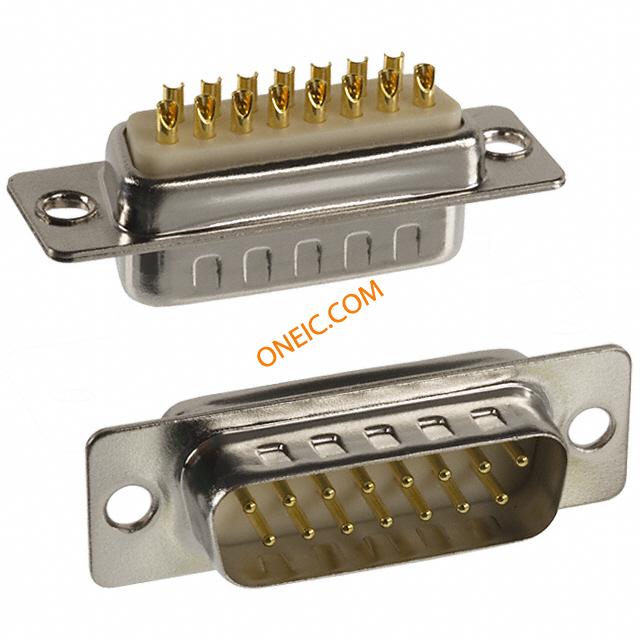

172-E15-103R001
| Manufacturer | |
| Description | D-Sub Standard Connectors 15P MALE SOLDER CUP CONN DB15 MALE SOLDER CUP NKL DSUB, PLUG, SOLDER CUP, 15WAY |
| Category |
Business
| Tradename | M-SERIES | Product Category | D-Sub Standard Connectors |
| Standard Package | 50 | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Range deg/s | :NORCOMP - M Series | Current Rating (Max) | 5 A |
Mechanical
| Color | White | Weight | 0.0074 |
| Packaging | Tray | Shell Size | :DA |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (Unthreaded) | Mounting Style | Wire |
| Number of Rows | 2 | Connector Style | D-Sub |
| Material - Body | :Steel | Housing Material | Polybutylene Terephthalate (PBT) |
| Termination Style | Solder | Number of Contacts | 15 |
| Contact Termination | :Solder | Number of Positions | 15 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 2 (DA, A) | ||
Product Info
| Gender | Male | Series | :M-Series |
| Features | Grounding Indents | ||
Environmental
| Mating Cycles | :100 | Operating Temperature | -50°C ~ 100°C |
