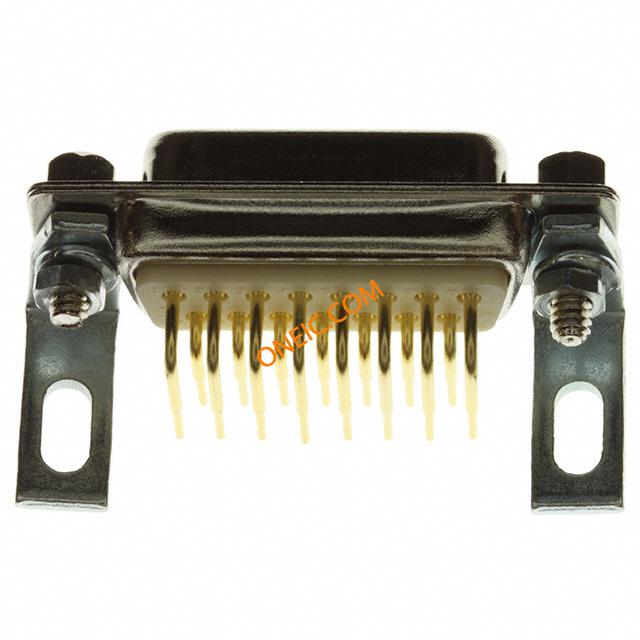

173-E15-213R141
| Manufacturer | |
| Description | CONN DB15 FMALE .283" R/A NKL D-Sub Standard Connectors 15POS FEM 5A Steel |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | M-SERIES | Standard Package | 28 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Color | White | Packaging | Tray |
| Insulation | Insulated | Termination | Solder |
| Contact Type | Signal | Mounting Type | Through Hole, Right Angle |
| Shell Plating | Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Mating Side; Female Screwlock (4-40) |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Contact Material | Brass | Housing Material | Polyamide (PA6T), Nylon 6T |
| Termination Style | Solder | Number of Contacts | 15 |
| Insulation Material | Thermoplastic, Glass-Filled | Number of Positions | 15 |
| Shell Material, Finish | Steel, Nickel Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 2 (DA, A) | ||
Product Info
| Gender | Female | Series | 173 |
| Features | Mounting Hardware | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
Documents & Media
Similar Parts
160-000-215R000
NorComp
D-Sub Tools & Hardware 15P FEMALE DUST COVR CLEAR PE MATERIAL DUST COVER FOR FEMALE DSUB 15POS
$3.3252
Details

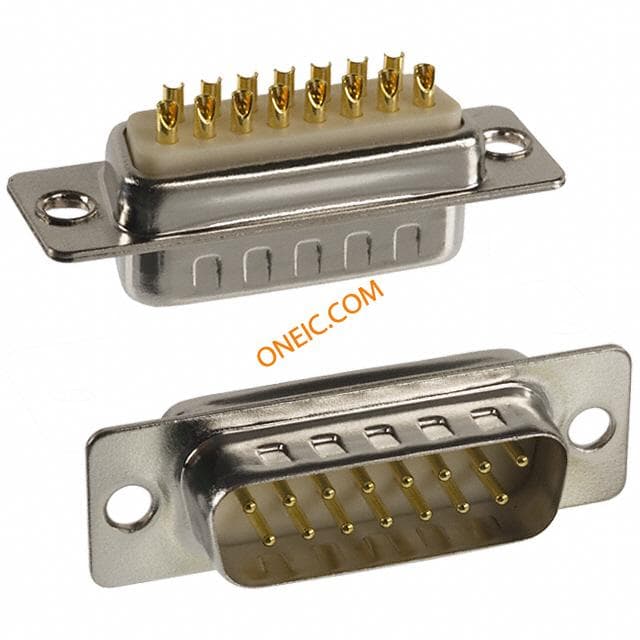

172-E15-103R001
NorComp
D-Sub Standard Connectors 15P MALE SOLDER CUP CONN DB15 MALE SOLDER CUP NKL DSUB, PLUG, SOLDER CUP, 15WAY
$18.1019
Details

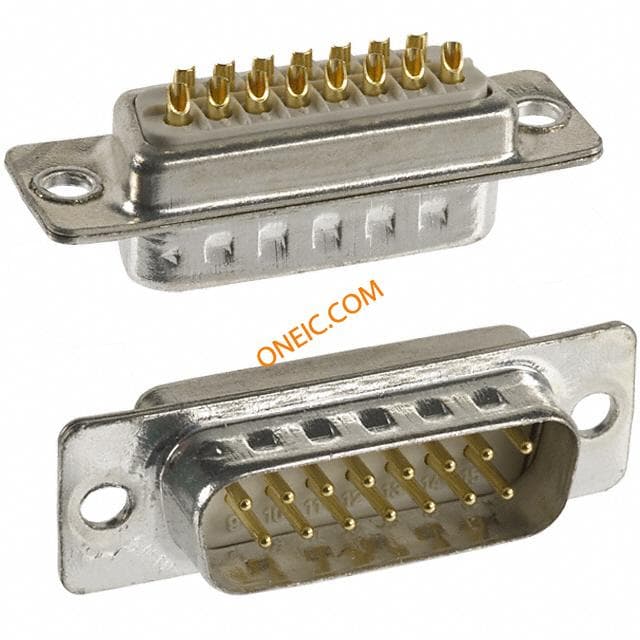

172-015-102R001
NorComp
D-Sub Standard Connectors 15 POS. MALE D-SUB SOLDER CUP YEL/CHRM CONN DB15 MALE SOLDER CUP TIN
$9.0600
Details

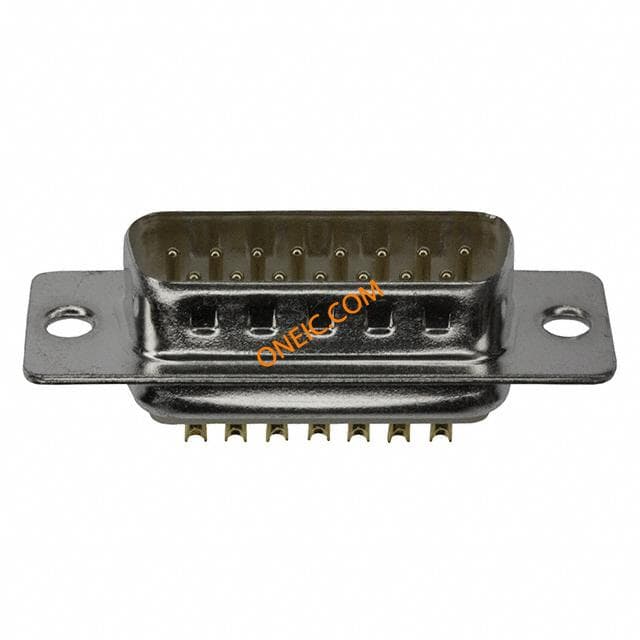

172-E15-102R001
NorComp
D-Sub Standard Connectors 15P Male CONN DB15 MALE SOLDER CUP TIN
$9.0600
Details
160-015-003R031
Norcomp Inc.
SLIDELOCK FOR DSUB 15POS D-Sub Tools & Hardware 15POS Slide Lock
$5.1068
Details
160-000-215R002
Norcomp Inc.
DUST CAP 15POS FEMALE W/LANYARD
$29.2264
Details

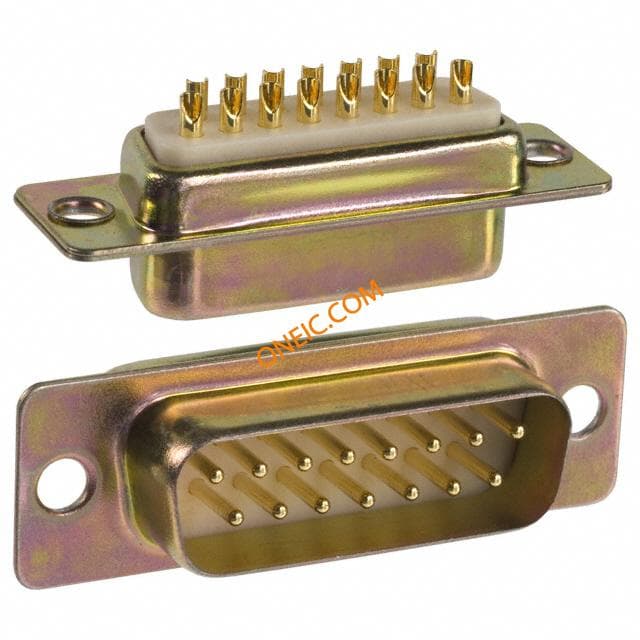

172-E15-101R001
