点击放大查看

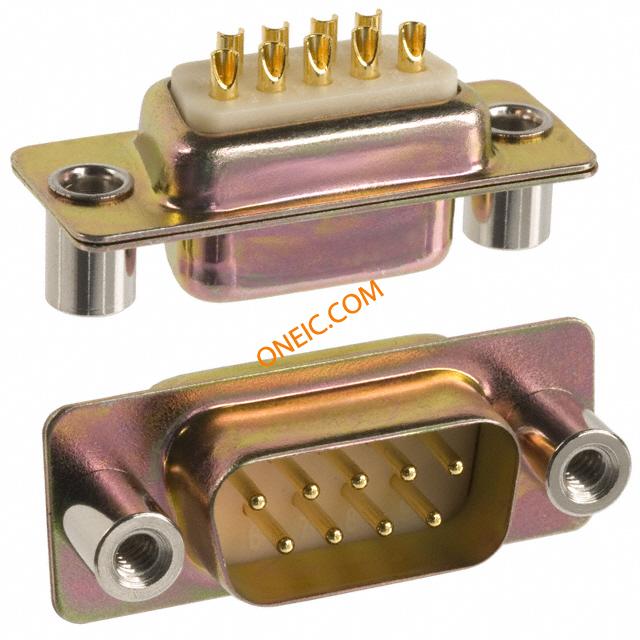

172-E09-101R031
| Manufacturer | |
| Description | CONN DB9 MALE SOLDER CUP CHROME |
| Category |
Business
| Other Names | 7109MEA | Standard Package | 80 |
Electrical
| Current Rating (Max) | 5A | ||
Mechanical
| Color | White | Packaging | Tray |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Free Hanging (In-Line); Panel Mount | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Flange Feature | Mating Side (4-40) |
| Number of Rows | 2 | Connector Style | D-Sub |
| Housing Material | Polybutylene Terephthalate (PBT) | Number of Positions | 9 |
| Shell Material, Finish | Steel, Yellow Chromate Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 1 (DE, E) | ||
Environmental
| Operating Temperature | -50°C ~ 100°C | ||
Documents & Media
