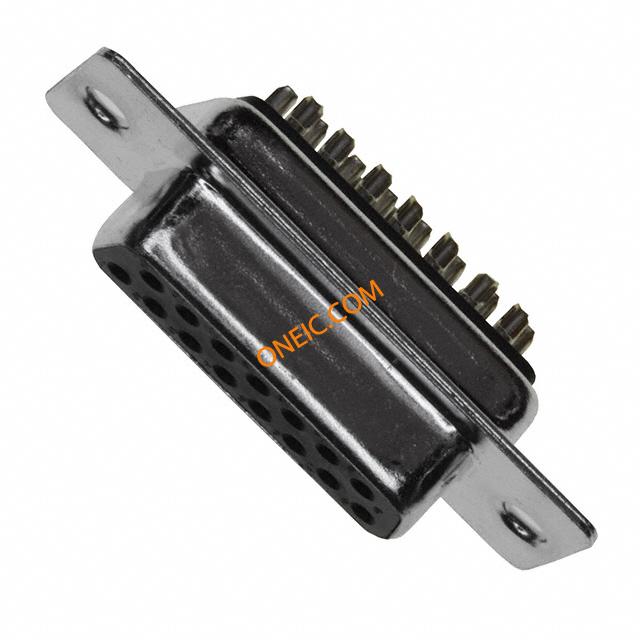

171-015-202L001
| Manufacturer | |
| Description | D-Sub Standard Connectors 15P Female CONN DB15 FEMALE SOLDER CUP TIN |
| Category |
Business
| Product Category | D-Sub Standard Connectors | Standard Package | 50 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 5 A |
Mechanical
| Color | Black | Pitch | 2.77 mm |
| Packaging | Tray | Insulation | Insulated |
| Wire Gauge | 28-20 | Termination | Solder Cup |
| Contact Type | Signal | Mounting Type | Vertical |
| Shell Plating | Tin | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Through Hole | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Solder |
| Number of Contacts | 15 | Insulation Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 15 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 2 (DA, A) |
Product Info
| Gender | Female | Series | 171 |
Environmental
| Operating Temperature | - 50 C to + 100 C | ||
