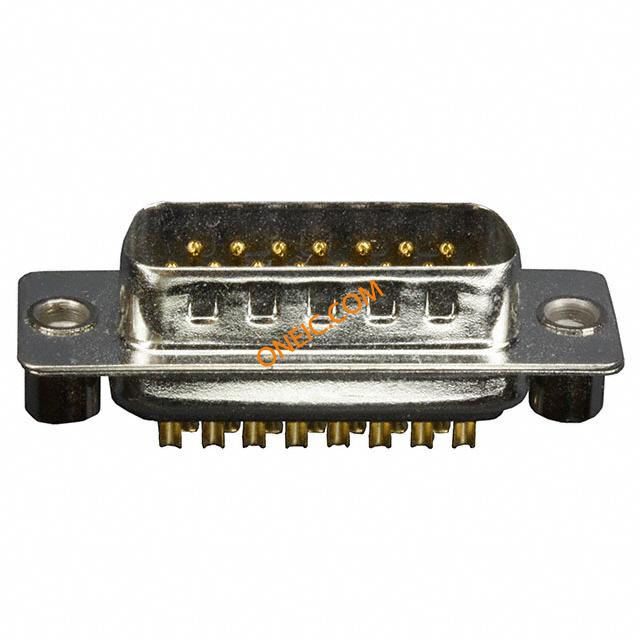

171-015-102L021
| Manufacturer | |
| Description | D-Sub Standard Connectors 15P Male CONN DB15 MALE SOLDER CUP TIN |
| Category |
Business
| Product Category | D-Sub Standard Connectors | Standard Package | 60 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 5 A | ||
Mechanical
| Color | Black | Height | 12.6 mm |
| Packaging | Tray | Insulation | Insulated |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Straight | Shell Plating | Tin |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Board Side (4-40) | Mounting Style | Panel |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Contact Material | Brass |
| Housing Material | Polybutylene Terephthalate (PBT) | Termination Style | Solder |
| Number of Contacts | 15 | Number of Positions | 15 |
| Shell Material, Finish | Steel, Tin Plated | Contact Finish Thickness | Flash |
| Shell Size, Connector Layout | 2 (DA, A) | ||
Product Info
| Gender | Male | ||
Environmental
| Operating Temperature | - 50 C to + 100 C | ||
Documents & Media
Similar Parts
.jpg&w=3840&q=75)
171-015-213R001
NorComp
D-Sub Standard Connectors 15P FEMALE VERTICAL DIP SOLDER CONN DB15 FEMALE DIP SLD NICKEL
183-015-213R531
NorComp
D-Sub Standard Connectors 15P FEMALE RT ANGLE .590 FOOTPRINT CONN DB15 FEMAL .590" R/A NICKEL
170-015-273L000
NorComp
D-Sub Standard Connectors 15P FEM CRIMP POKE NICKEL SHELL CONN DB15 CRIMP FEMALE NICKEL D-SUB SHELL, DB15, CRIMP, RECPT, 15WAY
182-015-213R531
NorComp
D-Sub Standard Connectors 15P FEMALE RT ANGLE .318 FOOTPRINT CONN DB15 FEMAL .318" R/A NICKEL D-SUB, RECEPTACLE, SOLDER, R/A, 15WAY
.jpg&w=3840&q=75)
171-015-202L001
NorComp
D-Sub Standard Connectors 15P Female CONN DB15 FEMALE SOLDER CUP TIN
170-015-271L000
NorComp
D-Sub Standard Connectors 15P FEMALE CRIMP POKE CHROMATE CONN DB15 CRIMP FEM YLW CHROME
182-015-213R161
NorComp
D-Sub Standard Connectors 15P Female R/A inside ground straps CONN DB15 FEMAL .318" R/A NICKEL
183-015-213R171
NorComp
D-Sub Standard Connectors 15P Fem R/A ground straps 4-40 inserts CONN DB15 FEMAL .590" R/A NICKEL

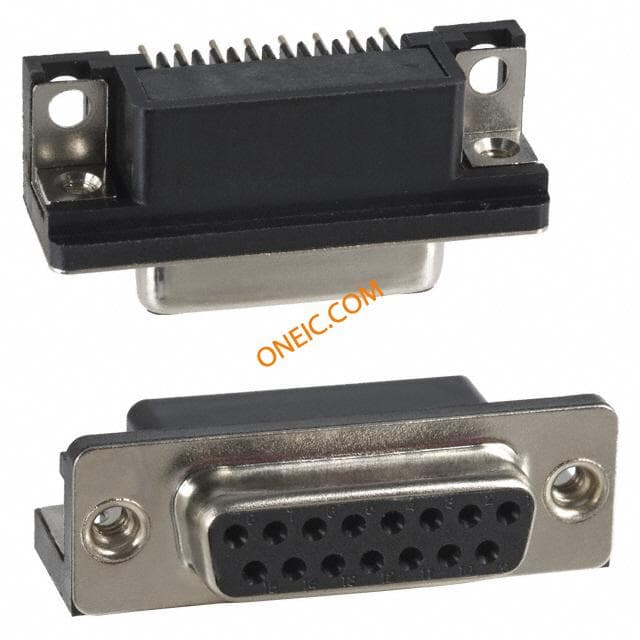

182-015-213R171
NorComp
D-Sub Standard Connectors 15P FML D-SUB R/A CONN DB15 FEMAL .318" R/A NICKEL D-SUB, RECEPTACLE, SOLDER, R/A, 15WAY

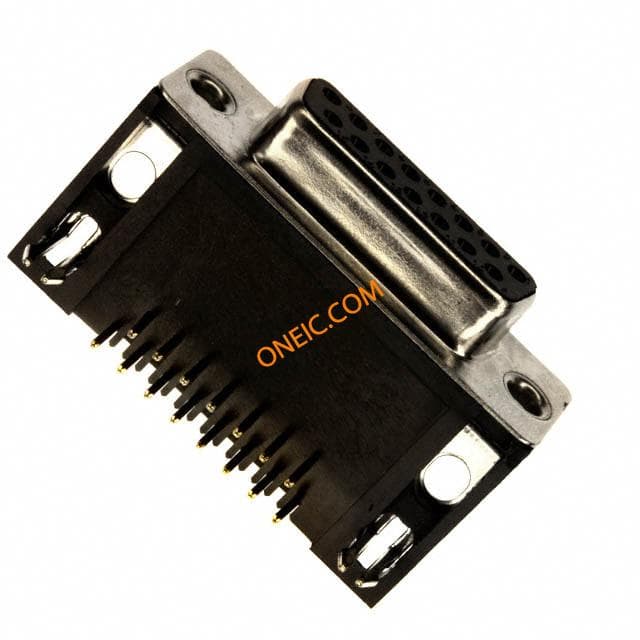

183-015-213R571
