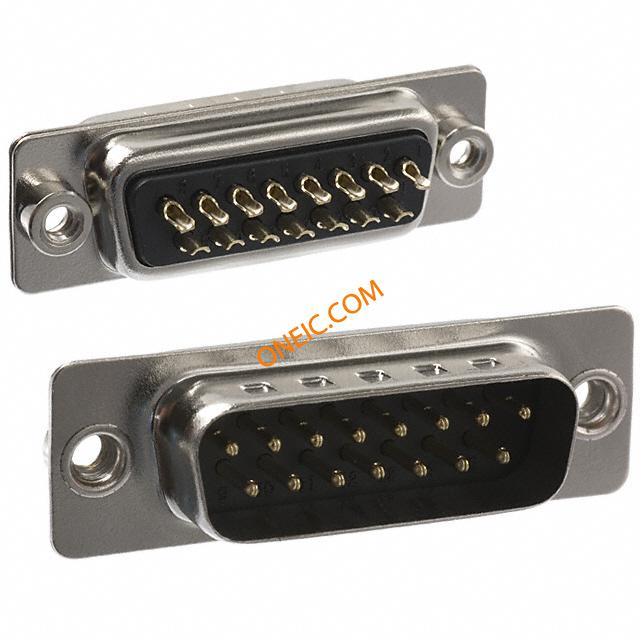

171-015-103L011
| Manufacturer | |
| Description | D-Sub Standard Connectors 15P MALE SOLDER CUP CONN DB15 MALE SOLDER CUP NICKEL |
| Category |
Business
| Product Category | D-Sub Standard Connectors | Standard Package | 60 |
| Factory Pack Quantity | 60 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 5 A |
Mechanical
| Color | Black | Packaging | Tray |
| Termination | Solder Cup | Contact Type | Signal |
| Mounting Type | Straight | Shell Plating | Nickel |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Board Side (4-40) | Mounting Style | Through Hole |
| Number of Rows | 2 | Shell Material | Steel |
| Connector Style | D-Sub | Housing Material | Polybutylene Terephthalate (PBT) |
| Termination Style | Solder | Number of Contacts | 15 |
| Number of Positions | 15 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | Flash | Shell Size, Connector Layout | 2 (DA, A) |
Product Info
| Gender | Male | Series | 171 |
| Features | Grounding Indents | ||
Environmental
| Operating Temperature | - 50 C to + 100 C | ||
