76650-0011
| Manufacturer | |
| Description | Wire To Wire Kit For Panel Mount Plugs, Receptacles Kit KIT CONN STD .093" SERIES Pin & Socket Connectors .093 CONNECTOR KIT PREM CRIMPTOOL 282PC Kit Description:Panel Mount Plug and Receptacle, with Extraction Tool and Premium Crimp Tool, 5-20 A, 250VKit Category:Wire to Wire Solution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:292 .093IN PWR CONNECTOR KIT PANEL MNT PLUG& RECEPT, W/ EXTRACTION & CRIMP TOOLS |
| Category |
Business
| Part # Aliases | WM-50 | Product Category | Pin & Socket Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage | 250/600 V | Voltage Rating | 250 V, 600 V |
| Current Rating (Max) | 5 A to 10 A | ||
Mechanical
| Pitch | 5.03 mm | Packaging | Plastic Box with Bin Guide |
| Wire Gauge | 22-18 | Angle of Throw | Panel Mount/FreeHanging |
| Connector Type | Plug and Receptacle | Mounting Style | Free Hanging, Panel |
| Housing Material | Nylon | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male), Socket (Female) | Number of Contacts | 30 |
| Wire Gauge or Range - AWG | 22-18 | ||
Product Info
| Series | 76650 | Values | 292 pcs - Assorted 1 ~ 6, 9, 12, 15 Circuit Plug, Receptacle, 22 ~ 18 AWG Pins, Sockets |
| Kit Type | Circuit Plug, Receptacle | Manufacturer | 76650 |
| Product Type | Kits | Configuration | Wire-to-Wire, Panel Mount |
Documents & Media
Similar Parts
63811-1000
Molex
Crimpers UNIVERSAL CRIMP TOOL Hand crimper for 1.57mm dia. Standard Hand Crimper Handtool Type CRIMP TOOL Hand Tool; Non-ratched Crimping tool, 63811-1000, Molex Molex HANDTOOL 系列 接端 压接工具 , 适用于30 → 14 AWG 线规格

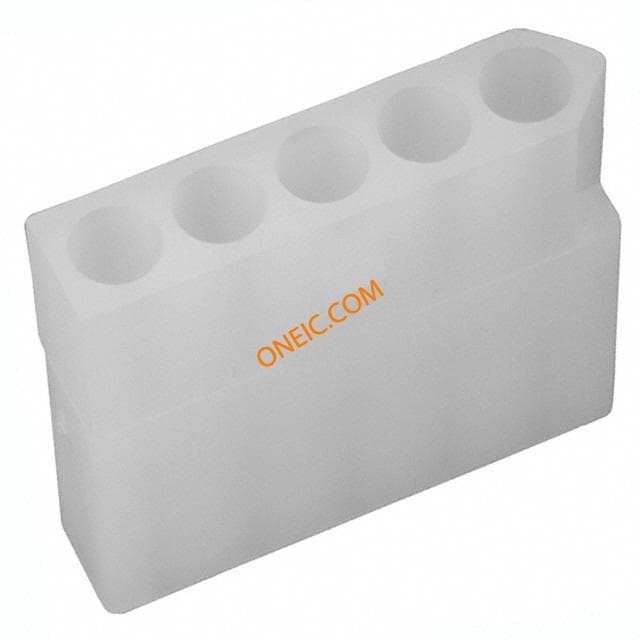

03-09-1054
