03-09-1011
| Manufacturer | |
| Description | CONN RECEPTACLE 1POS .093 Molex 1 Way 1 Row Straight Female Housing Receptacle Pin & Socket Connectors 1 CIRCUIT RECEPTACLE Conn Housing RCP 1 POS Crimp ST Bag RECEPTACLE, 0.093", 1WAY TERMINAL HOUSE; STD; RECEPTCL W/DTENT LCKONLY; 1 CIRCUIT Molex STANDARD .093" 系列 1路 直 外壳 |
| Category |
Business
| Tradename | Standard .062 in | Part # Aliases | 0003091011 1619-1R1B5N1A5 3091011 |
| Product Category | Pin & Socket Connectors | Factory Pack Quantity | 17000 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85369010 |
| Approval Agency | :UL 94V-2 | Approval Agency Marking | CSA, UL, TUV |
| Material Flammability Rating | :UL94V-2 | ||
Electrical
| Voltage Rating | :250V | Voltage - Working | :250V |
| Dielectric Strength | :1500V/m | Voltage - Breakdown | :3mV |
| Current Rating (Max) | 14A | ||
Mechanical
| Color | Natural | Pitch | 5.03 mm |
| Weight | 0.005 | Material | :Nylon |
| Wire Gauge | :0.597mm² | Termination | Crimp |
| Mounting Type | Straight | Release Force | :0.027N |
| Angle of Throw | Straight | Mounting Style | Wire |
| Number of Rows | 1 | Package / Case | :Receptacle |
| Insertion Force | :0.034N | Housing Material | Nylon |
| Length - Overall | 1.03 " | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male), Socket (Female) | Color - Connectors | :Clear |
| Number of Contacts | 1 | Number of Positions | :1 |
| Wire Gauge or Range - mm2 | :1.68mm² | Diameter - Outside, Non-Expanded | :4.06mm |
Product Info
| Type | Socket | Gender | Female |
| Series | 1619 | CAD Drawing | 3D CAD Model |
| Manufacturer | 1619 Series | Product Type | Receptacle Housings |
| For Use With/Related Products | :1189, 1190, 1434, 1973 Crimp Terminals | ||
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
Similar Parts
76650-0011
molex
Wire To Wire Kit For Panel Mount Plugs, Receptacles Kit KIT CONN STD .093" SERIES Pin & Socket Connectors .093 CONNECTOR KIT PREM CRIMPTOOL 282PC Kit Description:Panel Mount Plug and Receptacle, with Extraction Tool and Premium Crimp Tool, 5-20 A, 250VKit Category:Wire to Wire Solution:PowerPackaging:Clamshell: 12.75" by 6"Num. Pieces:292 .093IN PWR CONNECTOR KIT PANEL MNT PLUG& RECEPT, W/ EXTRACTION & CRIMP TOOLS

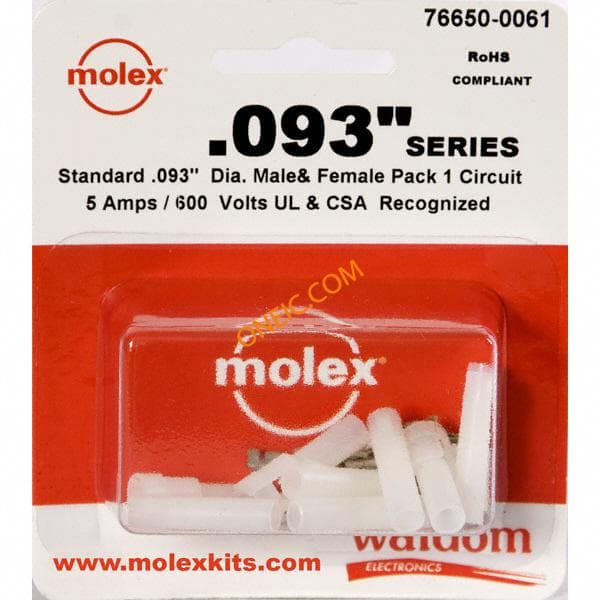

76650-0061
