03-09-1061
| Manufacturer | |
| Description | CONN RECEPT 6POS .093 PANEL MNT Molex 5.03mm 6 Way 2 Row Straight Female Housing Receptacle Pin & Socket Connectors 6 CIRCUIT RECEPTACLE Conn Housing RCP 6 POS 5.03mm Crimp ST Panel Mount Bag HOUSING, RECEPTACLE, 6 WAY, NYLON TERMINAL HOUSE; STD; RECEPT W/MNT EAR & DTENT LCK; 6 CIRCUIT Molex STANDARD .093" 系列 6路 (2行) 5.03mm节距 直 外壳 |
| Category |
Business
| Tradename | Standard .093 in | Part # Aliases | 0003091061 1261-R 3091061 |
| Product Category | Pin & Socket Connectors | Standard Package | 5 |
| Factory Pack Quantity | 500 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | :CSA, UL | Approval Agency Marking | CSA, UL |
| Material Flammability Rating | :UL94V-2 | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 11A |
Mechanical
| Color | Natural | Pitch | 0.198" (5.03mm) |
| Weight | 0.002 | Material | :Nylon |
| Packaging | Bulk | Row Spacing | 0.198" (5.03mm) |
| Termination | Crimp | Contact Type | Male or Female |
| Mounting Type | Panel Mount, Snap-In | Angle of Throw | Straight |
| Connector Type | Receptacle | Fastening Type | Locking Ramp |
| Number of Rows | 3 | Housing Material | Nylon |
| Length - Overall | 1.05 " | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male), Socket (Female) | Color - Connectors | :Natural |
| Number of Contacts | 6 | Contact Termination | Crimp |
| Number of Positions | 6 | Mounting Hole Diameter | 0.718×0.6 " |
Product Info
| Note | Contacts Not Provided | Type | Panel Socket |
| Gender | Female | Series | 1261 |
| CAD Drawing | 3D CAD Model | Manufacturer | 1261 Series |
| Product Type | Receptacle Housings | For Use With/Related Products | :1189, 1190, 1434, 1973 Crimp Terminals |
Environmental
| Operating Temperature | :105°C | ||
Documents & Media
Similar Parts
0002091119
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-22AWG TIN Conn Contact F 1 POS Crimp ST Cable Mount Bag
0002092116
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 18-22AWG TIN
0002092118
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 18-22AWG TIN Conn Contact M 1 POS Crimp ST Cable Mount Bag
0002092101
Molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 14-20AWG TIN Connetor
0002092103
molex
Contact PIN Crimp ST Cable Mount Bag CONN TERM MALE 14-20AWG TIN
0038000589
molex
Conn Shrouded Header HDR 6 POS 5.03mm Solder ST Thru-Hole Bag 093 SHRD PIN SKT HDRS 6POS
0010181064
molex
Conn Shrouded Header HDR 6 POS 5.03mm Solder ST Thru-Hole Bag TERM BLK SKT 6POS 2.36MM
02-09-5132
molex
CONN CONT F 1 POS CRMP ST CBL MNT CONN TERM FEMALE SOLDER GOLD PCB Pin & Socket Connectors 2.36MM PIN & SOCKET Female Contact SKT Crimp ST Cable Mount Bag
02-09-6145
Molex
Pin & Socket Connectors TERMINAL .093 MALE CONN TERM MALE 24-30AWG GOLD
02-09-1139
Molex
Pin & Socket Connectors SOCKET 22-24AWG BULK CONN TERM FEMALE 22-24AWG TIN Contact SKT Crimp ST Cable Mount Bag
0003092062
Molex
Conn Housing PL 6 POS 5.03mm Crimp ST Bag CONN PLUG 6POS .093
0002098108
Molex
Contact PIN Crimp ST Cable Mount Reel TERM MALE PIN .093 14-18AWG
02-09-5142
molex
Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 18-22AWG GOLD Crimp 2.36mm,,fem,18-22 AWG,Aubag Pin & Socket Connectors SOCKET 18-22AWG BULK .093 TERMINAL FEMALE 18-22 Molex STANDARD .093" 系列 母 压接接线端子, 压接, 镀金镀镍触点
0038000590
Molex
Conn Shrouded Header HDR 6 POS 5.03mm Solder ST Thru-Hole Bag 093 SHRD PIN SKT HDRS 6POS
0010181065
Molex
Conn Shrouded Header HDR 6 POS 5.03mm Solder ST Thru-Hole Bag TERM BLK SKT 6POS 2.36MM
02-09-6106
Molex Connector Corporation
CONN TERM MALE 14-20AWG GOLD Crimp 2.36mm,male,14-20 AWG,Au,bag Pin & Socket Connectors TERMINAL MALE 14-20 Conn Contact M 1 POS Crimp ST Cable Mount Loose Piece Contact PIN Crimp ST Cable Mount Bag CONTACT, PIN, 20-14AWG, CRIMP .093 CONN TERM MALE 14-20AWG GOLD 093MALETERMLOOSEBRS15AU14-20 .093CONNTERMMALE14-20AWGGOLD Molex STANDARD .093" 系列 公 压接接线端子, 压接, 镀金镀镍触点
02-09-6110
Molex Connector Corporation
CONN TERM MALE 14-20AWG GOLD Pin & Socket Connectors PIN 14-20AWG BULK 2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male, with Selective Gold (Au) Plated Brass Contact, ... 2.36mm Diameter, Standard .093" Pin and Socket Crimp Terminal, Series 1190, Male, with Selective Gold (Au) Plated Brass Contact, 14-20 AWG, Bag 093 Male Term Loose Brs 50Au 14-20

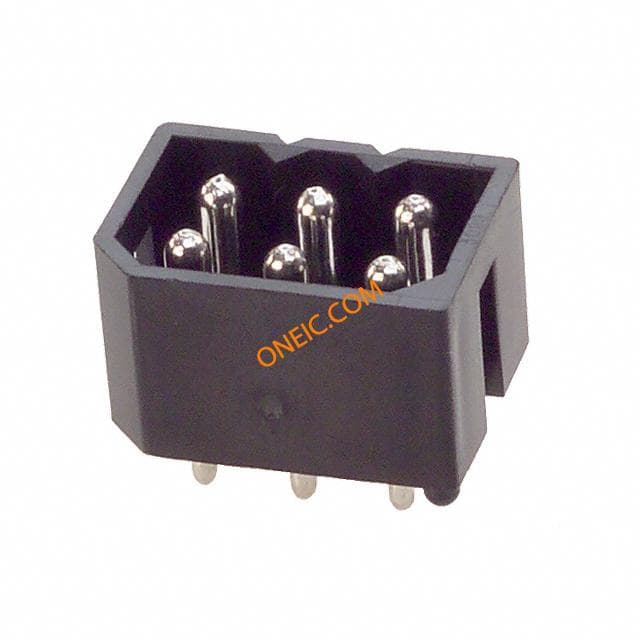

10-18-1061
