70553-0044
| Manufacturer | |
| Description | Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR RT ANG 10POS .100 TIN Headers & Wire Housings 2.54MM HDR 10 CKT Right Angle |
| Category |
Business
| Tradename | SL | Part # Aliases | 0705530044 |
| Product Category | Headers & Wire Housings | Standard Package | Rail / Tube |
| Factory Pack Quantity | 760 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 3 A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Packaging | Tube | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Tin Over Nickel |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Polyester | Termination Style | Through Hole |
| Number of Contacts | 10 | Number of Positions | 10 |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness | 150µin (3.81µm) |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | 70553 | Product Type | Headers |
| Number of Positions Loaded | All | ||
Documents & Media
Similar Parts
0015388100
molex
Conn IDC Connector F 10 POS 2.54mm IDT ST Cable Mount Tube CONN FFC FEMALE 10POS .100 TIN

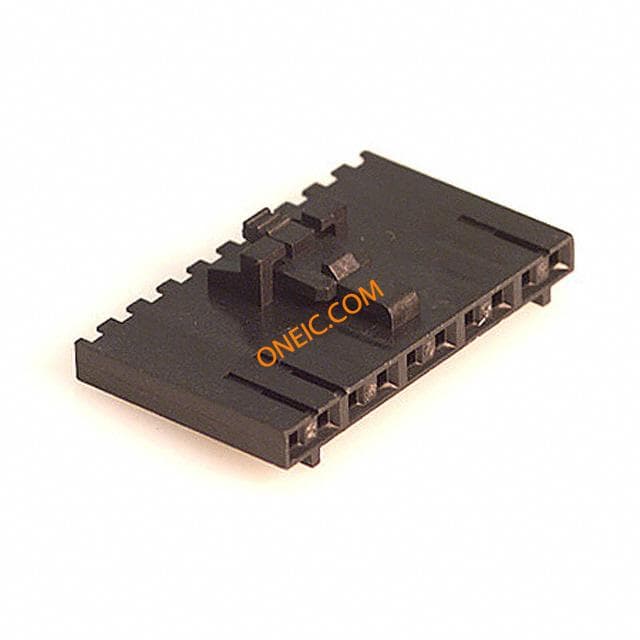

0050579410
