14-56-2102
| Manufacturer | |
| Description | CONN IDC 10POS .100 GOLD 24AWG Headers & Wire Housings SL 10 CKT IDT CONNEC Conn IDC Connector F 10 POS 2.54mm IDT ST Cable Mount Tube |
| Category |
Business
| Tradename | C-Grid, SL | Part # Aliases | 0014562102 A-70400-0674 |
| Product Category | Headers & Wire Housings | Standard Package | 1 |
| Factory Pack Quantity | 630 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 3 A |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Packaging | Tube | Wire Type | Discrete or Ribbon Cable |
| Wire Gauge | 24 AWG | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Gold | Fastening Type | Latch Lock |
| Mounting Style | Cable | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Polyester Alloy |
| Cable Termination | IDC | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 10 |
| Number of Positions | 10 | Contact Finish Thickness | 15µin (0.38µm) |
Product Info
| Series | 70400 | Features | Closed End |
| Product Type | Receptacles / Sockets - Housings | ||
Documents & Media
Similar Parts
0705530009
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 10POS .100 R/A GOLD
0705430044
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube CONN HDR VERT 10POS .100 TIN
0623003000
molex
RIBBON CABLE HAWK W/O BREAK-OFF STATION HAWK Ribbon Cable Terminator For SL Without Break-Off RIBBON CABLE HAWK
0623005200
molex
FFC HAWK W/ BREAK-OFF STATION HAWK FLAT FLEX CABLE TERMINATOR FOR SL WITH BREAK-OFF
0705450044
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 10POS .100 VERT 15AU
0701070009
molex
Conn Housing F 10 POS 2.54mm Crimp ST Bag Conn Housing F 10 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING MALE 10POS .100
0705550044
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 10POS .100 R/A 15AU
0015912105
Molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA SMD Tube CONN HEADER 10POS .100 R/A SMD
0015045404
Molex
Connector Accessories 40 POS Interim Clip Polyester Black Bag CLIP SL .100" DR W/RIBS 40CKT
70553-0044
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR RT ANG 10POS .100 TIN Headers & Wire Housings 2.54MM HDR 10 CKT Right Angle
70555-0009
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 10POS .100 R/A TIN Headers & Wire Housings 2.54MM SR RA 10P HDR SN SHROUDED

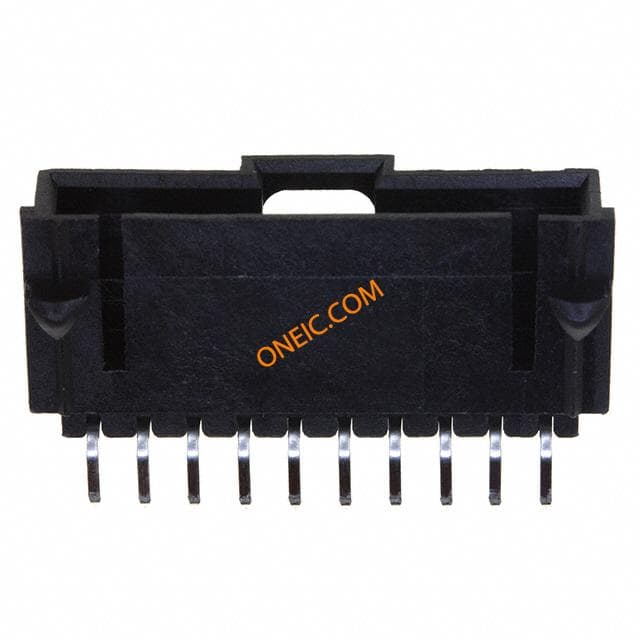

0015913104
Molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA SMD Tube CONN HEADER 10POS .100 R/A SMD
0705530114
Molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 10POS .100 R/A 30AU
0701070079
Molex
Conn Housing F 10 POS 2.54mm Crimp ST Bag SL WTW CONN SR OPT C 10POS
0705430009
Molex Inc
CONN HEADER 10POS .100 VERT GOLD Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube

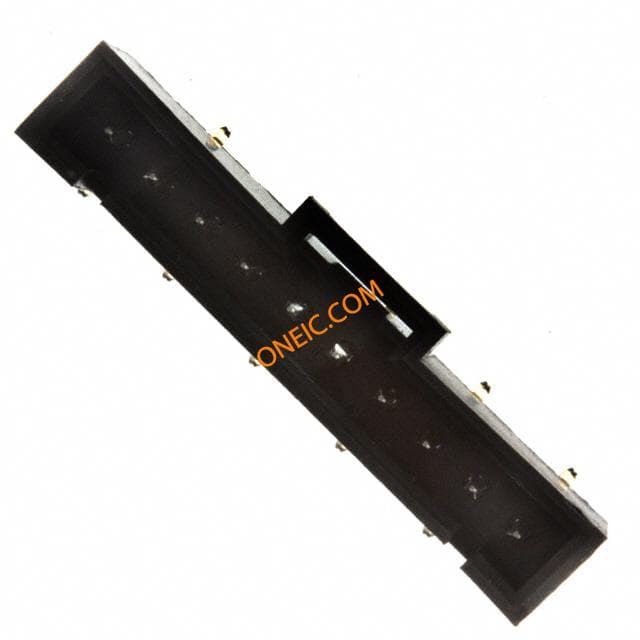

74099-0010
