点击放大查看
0015388100
| Manufacturer | |
| Description | Conn IDC Connector F 10 POS 2.54mm IDT ST Cable Mount Tube CONN FFC FEMALE 10POS .100 TIN |
| Category |
Business
| Standard Package | Rail / Tube | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Material Flammability Rating | UL94 V-0 | ||
Electrical
| Voltage Rating | 250V | Contact Resistance | 10 |
| Current Rating (Max) | 2/Contact | Voltage - Input (Min) | 250V |
Mechanical
| Color | Black | Depth | 15.24 |
| Pitch | 2.54 mm | Height | 6.6 |
| Packaging | Tube | Termination | IDT |
| Housing Color | Black | Mounting Type | Cable Mount |
| Connector Type | Receptacle | Contact Finish | Tin Over Nickel |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Polyester | Length - Overall | 25.37 |
| FFC, FCB Thickness | 0.30mm | Number of Contacts | 10 |
| Number of Positions | 10 | Contact Finish Thickness | 150µin (3.81µm) |
Product Info
| Type | IDC Connector | Gender | F |
| Features | Latch Lock | ||
Environmental
| Operating Temperature | -40°C ~ 105°C | ||
Documents & Media
Similar Parts
0705530009
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 10POS .100 R/A GOLD
0705430044
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube CONN HDR VERT 10POS .100 TIN
0622020800
molex
FFC/SL TOOLING 2-20 CKT W/ TM42 PRESS TM-42 PRESS AND TERMINATION KIT FOR 110V APPLICATIONS FFC/SL TOOL 2-20 CKT W/ TM42
0623003000
molex
RIBBON CABLE HAWK W/O BREAK-OFF STATION HAWK Ribbon Cable Terminator For SL Without Break-Off RIBBON CABLE HAWK
0623005200
molex
FFC HAWK W/ BREAK-OFF STATION HAWK FLAT FLEX CABLE TERMINATOR FOR SL WITH BREAK-OFF
0705450044
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 10POS .100 VERT 15AU
0701070009
molex
Conn Housing F 10 POS 2.54mm Crimp ST Bag Conn Housing F 10 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING MALE 10POS .100
0705550044
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 10POS .100 R/A 15AU
0622007800
molex
MANUAL PRESS FOR MICRO-D BACKSHELL CRIMP TOOL KIT, 25 CIRCUITS Standard Manual Press For FFC ARBOR PRESS W/ FFC TOOLING
0015912105
Molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA SMD Tube CONN HEADER 10POS .100 R/A SMD
70553-0044
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube CONN HDR RT ANG 10POS .100 TIN Headers & Wire Housings 2.54MM HDR 10 CKT Right Angle
70555-0009
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 10POS .100 R/A TIN Headers & Wire Housings 2.54MM SR RA 10P HDR SN SHROUDED
0015913104
Molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA SMD Tube CONN HEADER 10POS .100 R/A SMD
0705530114
Molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 10POS .100 R/A 30AU
0705430009
Molex Inc
CONN HEADER 10POS .100 VERT GOLD Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tube

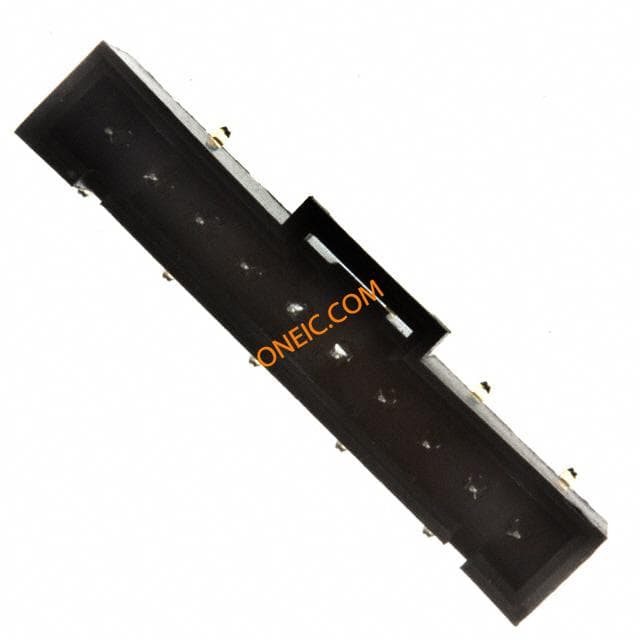

74099-0010
