70543-0018
| Manufacturer | |
| Description | Conn Shrouded Header HDR 19 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 19POS .100 VERT GOLD Headers & Wire Housings 2.54MM HDR 19 CKT Vertical |
| Category |
对参数有疑问？问 AI 助手
Business
| Tradename | SL | Part # Aliases | 0705430018 |
| Product Category | Headers & Wire Housings | Standard Package | Bulk |
| Factory Pack Quantity | 480 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Packaging | Tube | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Number of Contacts | 19 | Number of Positions | 19 |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness | 15µin (0.38µm) |
Product Info
| Type | Shrouded | Series | 70543 |
| Product Type | Headers | Number of Positions Loaded | All |
Documents & Media
PDF Document
PDF Document
Similar Parts
14-56-2192
molex
Conn IDC Connector F 19 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 19POS .100 GOLD 24AWG Headers & Wire Housings CGrid SL IDT Opt G 15 SAu 19Ckt
$12.1122
Details
15-47-4193
molex
Conn IDC Connector F 19 POS 2.54mm IDT ST Cable Mount Tube CONN FFC FEMALE 19POS .100 GOLD FFC & FPC Connectors SL FFC/FPC Opt G Fem 15 SAu 19Ckt
$14.9967
Details

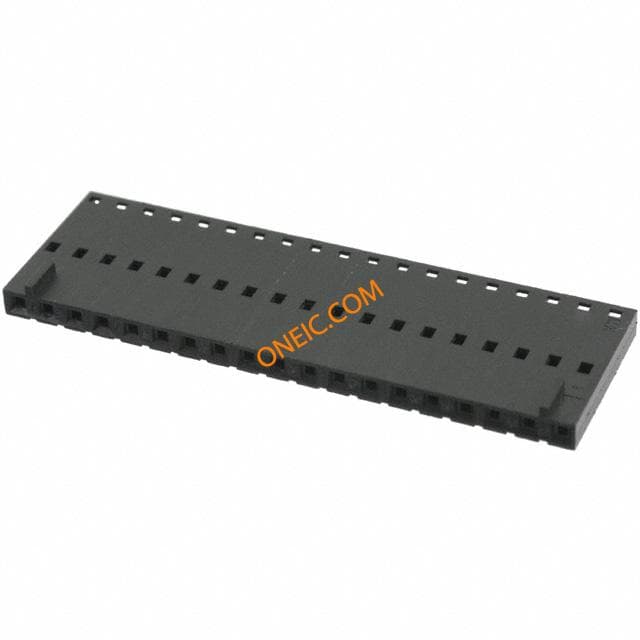

0050579219
