14-56-2192
| Manufacturer | |
| Description | Conn IDC Connector F 19 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 19POS .100 GOLD 24AWG Headers & Wire Housings CGrid SL IDT Opt G 15 SAu 19Ckt |
| Category |
Business
| Tradename | C-Grid, SL | Part # Aliases | 0014562192 70400-0683 |
| Product Category | Headers & Wire Housings | Standard Package | Rail / Tube |
| Factory Pack Quantity | 330 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 3 A |
Mechanical
| Color | Black | Pitch | 2.54 mm |
| Packaging | Tube | Wire Type | Discrete or Ribbon Cable |
| Wire Gauge | 24 AWG | Termination | IDT |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | Gold Over Nickel |
| Fastening Type | Latch Lock | Mounting Style | Cable |
| Number of Rows | 1 | Contact Material | Phosphor Bronze |
| Housing Material | Polyester Alloy | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 19 | Number of Positions | 19 |
| Contact Finish Thickness | 15µin (0.38µm) | ||
Product Info
| Type | IDC Connector | Gender | F |
| Series | 70400 | Features | Closed End |
| Product Type | Receptacles / Sockets - Housings | ||
Documents & Media
Similar Parts
0623003100
molex
Connector Accessories Discrete Wire Terminator HAWK Semi-Automatic Discrete Wire Terminator For SL SL HAWK DISCRETE WIRE CE
0623003000
molex
RIBBON CABLE HAWK W/O BREAK-OFF STATION HAWK Ribbon Cable Terminator For SL Without Break-Off RIBBON CABLE HAWK

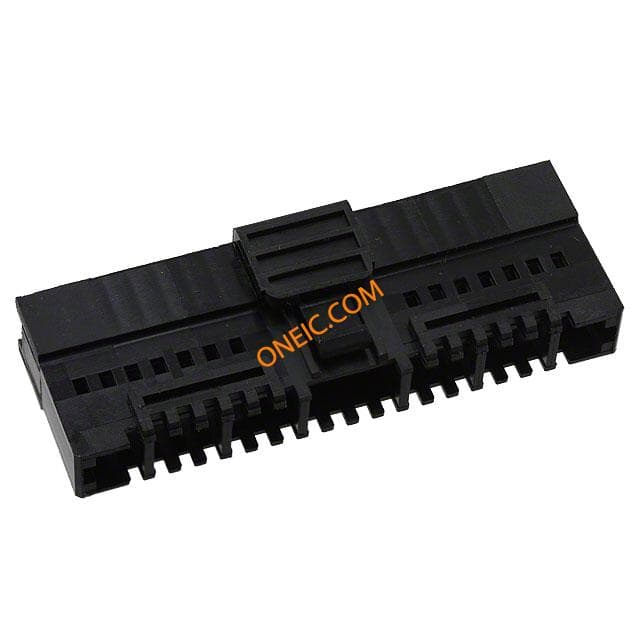

0015045401
molex
Connector Accessories 40 POS Interim Clip Polyester Black Bag CONN 2.54MM INTERIM CLIP 40CIRC
0623005300
molex
RIBBON CABLE HAWK W/ BREAK-OFF STATION HAWK Ribbon Cable Terminator With For SL Break-Off RIBBON CABLE HAWK W/BREAKOFF
0011200949
molex
Connector Accessories IDT Semi automatic Bench Top Terminator IDT - Semi-automatic - Bench-Top Terminator BENCH-TOP TERMINATOR SEMI-AUTO
0623005200
molex
FFC HAWK W/ BREAK-OFF STATION HAWK FLAT FLEX CABLE TERMINATOR FOR SL WITH BREAK-OFF
0621000700
molex
Connector Accessories Tool IDT Discrete Handtool Module For SL TOOL HAND DIESET MODULE
0050650219
molex
Conn Housing F 19 POS 2.54mm Crimp ST Bag SL PMC WTOW SR MODBRNCH 19POS

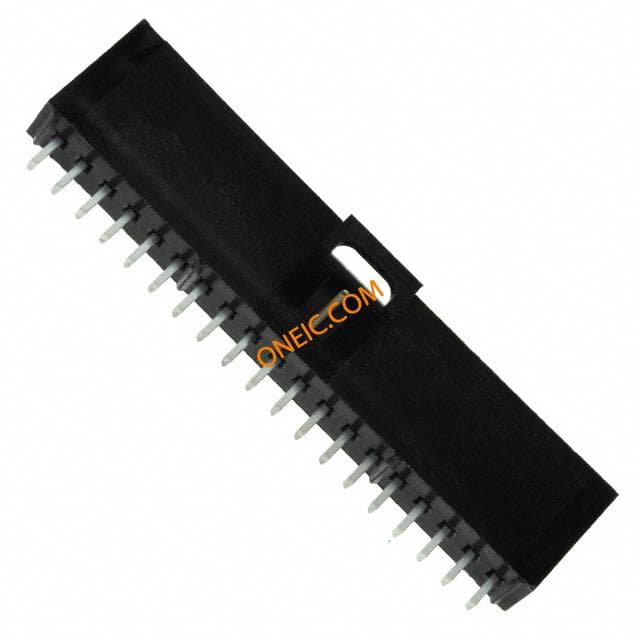

70543-0018
