15-38-8190
| Manufacturer | |
| Description | CONN FFC FEMALE 19POS .100 TIN FFC & FPC Connectors SL FFC/FPC Opt G Fem 19CKT TIN |
| Category |
Business
| Tradename | C-Grid | Part # Aliases | 0015388190 70430-0158 |
| Product Category | FFC & FPC Connectors | Standard Package | 1 |
| Factory Pack Quantity | 330 | ||
Compliance
| RoHS | RoHS Compliant | Material Flammability Rating | UL94 V-0 |
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 1 A, 2 A |
Mechanical
| Color | Black | Pitch | 0.100" (2.54mm) |
| Packaging | Tube | Termination | IDC |
| Mounting Type | Vertical | Connector Type | Receptacle |
| Contact Finish | Tin | Mounting Style | Cable |
| Contact Material | Phosphor Bronze | Housing Material | Polyester, Glass Filled |
| Termination Style | IDC | FFC, FCB Thickness | 0.30mm |
| Number of Contacts | 19 | Number of Positions | 19 |
| Contact Finish Thickness | 150µin (3.81µm) | ||
Product Info
| Gender | Female | Series | 70430 |
| Features | Latch Lock | Product Type | Free Hanging |
Environmental
| Operating Temperature | -40°C ~ 105°C | ||
Similar Parts
0622020800
molex
FFC/SL TOOLING 2-20 CKT W/ TM42 PRESS TM-42 PRESS AND TERMINATION KIT FOR 110V APPLICATIONS FFC/SL TOOL 2-20 CKT W/ TM42
0623003000
molex
RIBBON CABLE HAWK W/O BREAK-OFF STATION HAWK Ribbon Cable Terminator For SL Without Break-Off RIBBON CABLE HAWK
0623005300
molex
RIBBON CABLE HAWK W/ BREAK-OFF STATION HAWK Ribbon Cable Terminator With For SL Break-Off RIBBON CABLE HAWK W/BREAKOFF
0623005200
molex
FFC HAWK W/ BREAK-OFF STATION HAWK FLAT FLEX CABLE TERMINATOR FOR SL WITH BREAK-OFF

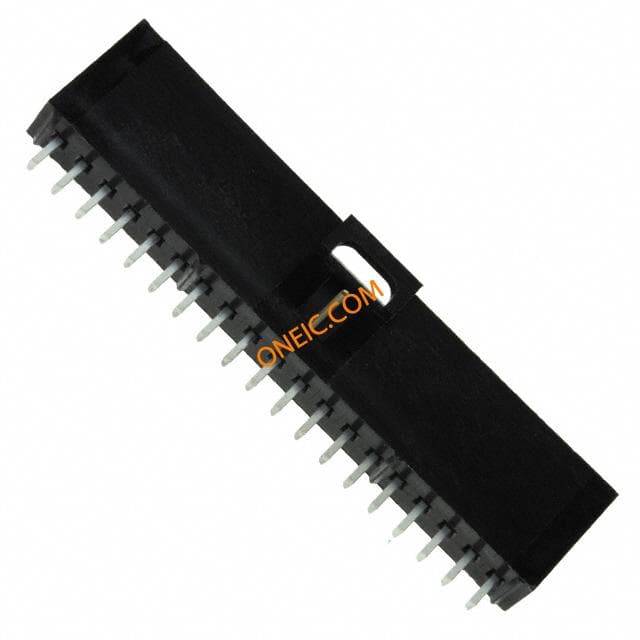

70543-0018
molex
Conn Shrouded Header HDR 19 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 19POS .100 VERT GOLD Headers & Wire Housings 2.54MM HDR 19 CKT Vertical
70553-0053
molex
Conn Shrouded Header HDR 19 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 19POS .100 R/A TIN
70543-0053
molex
Conn Shrouded Header HDR 19 POS 2.54mm Solder ST Thru-Hole Tube CONN HEADER 19POS .100 VERT TIN 2.54mm Pitch SL™ Header, Single Row, Vertical, 3.05mm Pocket, Shrouded, 19 Circuits, Tin (Sn) Plating

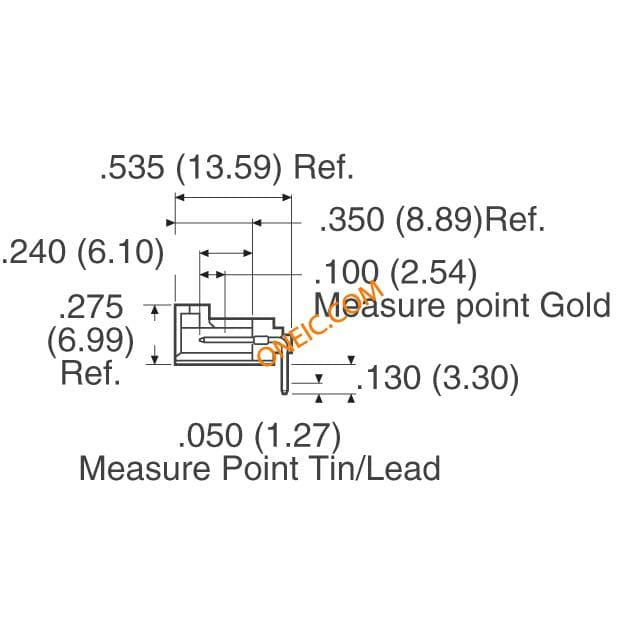

70553-0018
